Check Door Switches

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between door switch connector terminals 1, 2 and ground part of door switch.

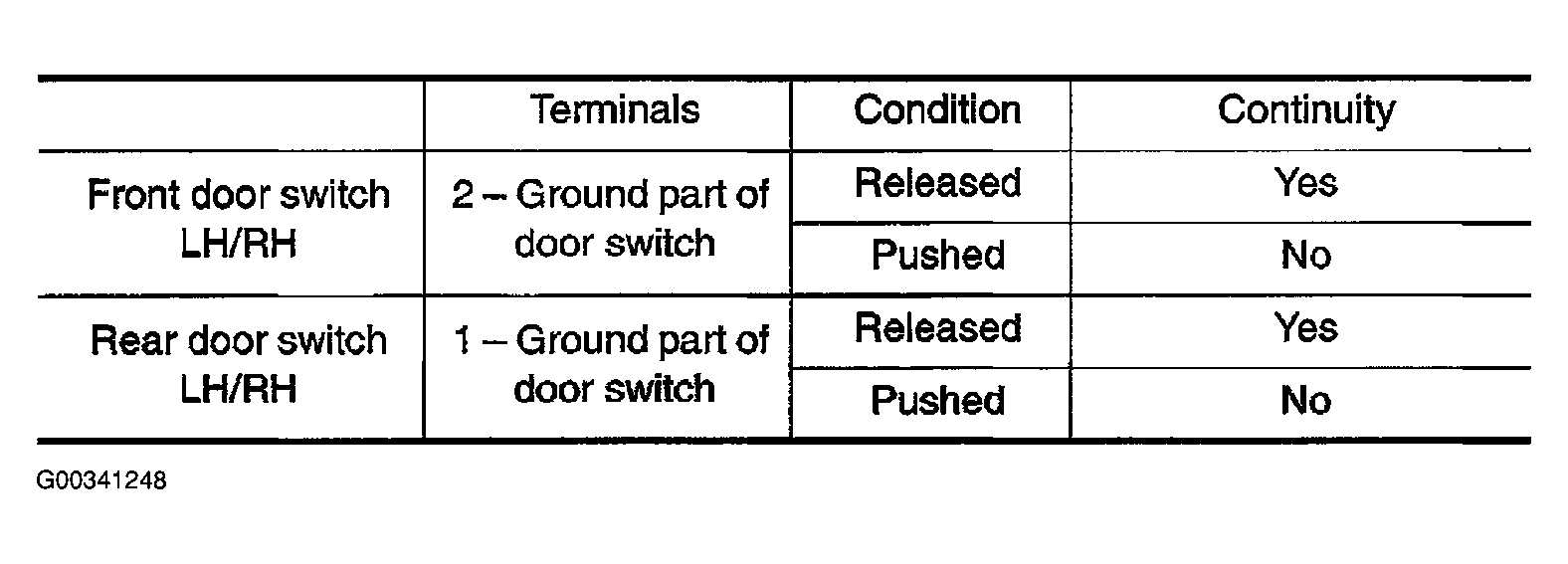

Fig 1: Door Switch Circuit Terminals Continuity Specifications (Front And Rear)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Check door switch case ground condition.
NG >> Replace door switch.

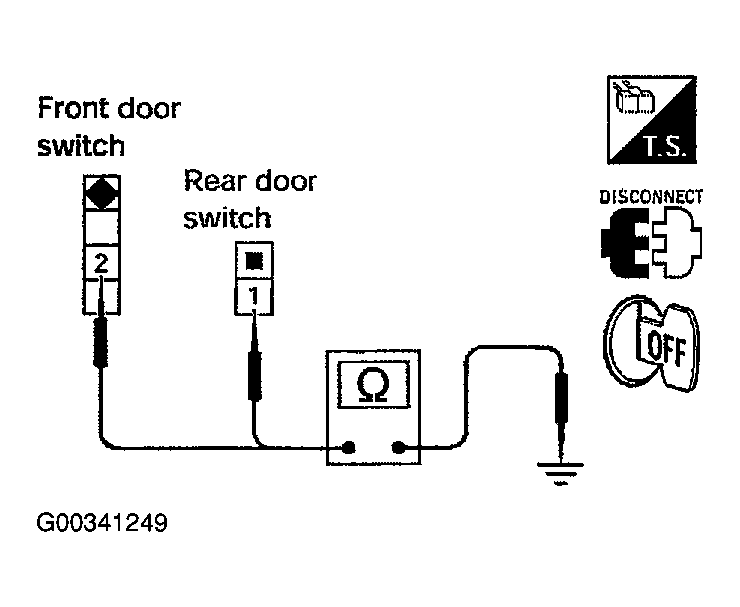

Fig 2: Checking Continuity Between Door Switch Connector Terminals 1, 2 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
