Hazard and Horn Reminder
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).

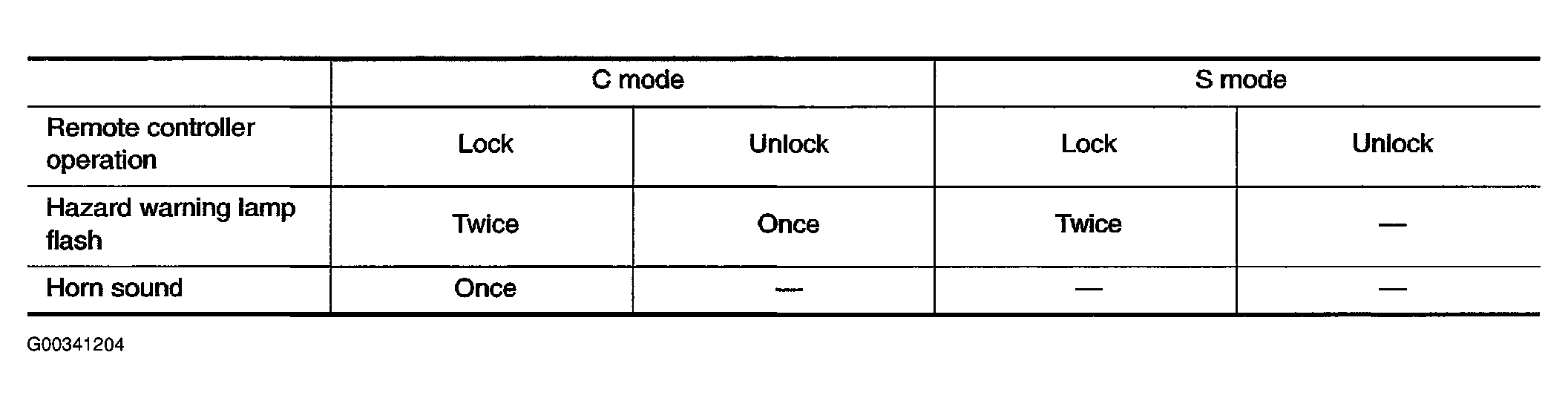

The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
Courtesy of NISSAN MOTOR CO., U.S.A.
