Output Rod Length Check

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

With master cylinder removed, apply 19.69 in. Hg vacuum and measure output rod length. Specified length is .614-.626 in. (15.6-15.9 mm). See Fig 1.

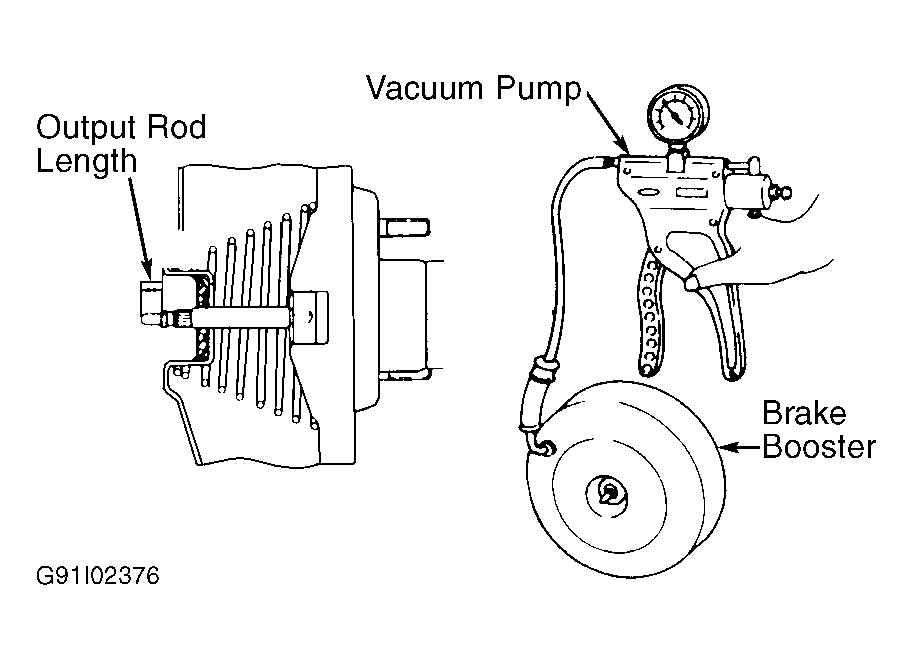

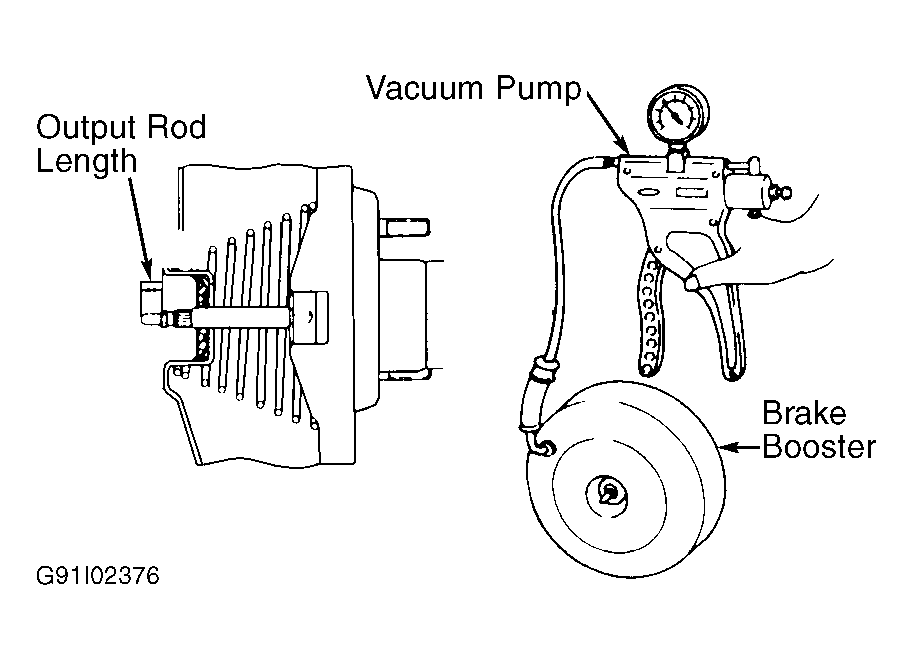

Fig 1: Measuring Length of Output Rod Extending From Booster Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
