Power Window Serial Link Check Front LH and RH/Crew Cab

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SERIAL LINK OUTPUT SIGNAL
With CONSULT-II

Check door lock and unlock switch ("LOCK SW DR/AS", "UNLK SW DR/AS") in DATA MONITOR mode for "REMOTE KEYLESS ENTRY SYSTEM" with CONSULT-II. Refer to , "DATA MONITOR ".
- When door lock and unlock switch is turned to LOCK
  LOCK SW DR/AS: ON
- When door lock and unlock switch is turned to UNLOCK
  UNLK SW DR/AS: ON
Fig 1: Displaying Data Monitor Mode For Remote Keyless Entry System
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Remove key from ignition switch, and the door of driver side and passenger side is closed.

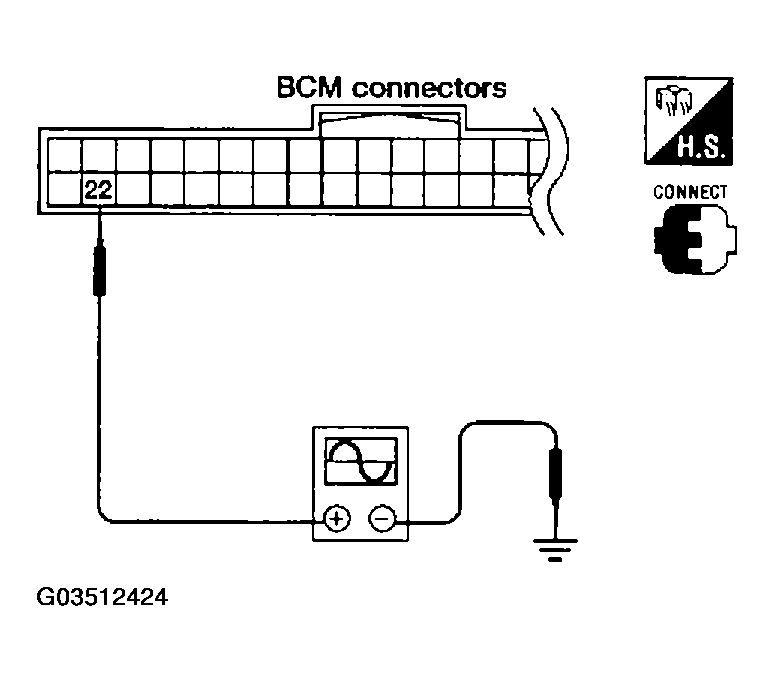

2. Check the signal between BCM connector and ground with oscilloscope when door lock and unlock switch (front LH and front RH) is turned "`LOCK" or "UNLOCK".
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door lock and unlock switch (front LH and front RH) is turned "LOCK" or "UNLOCK".

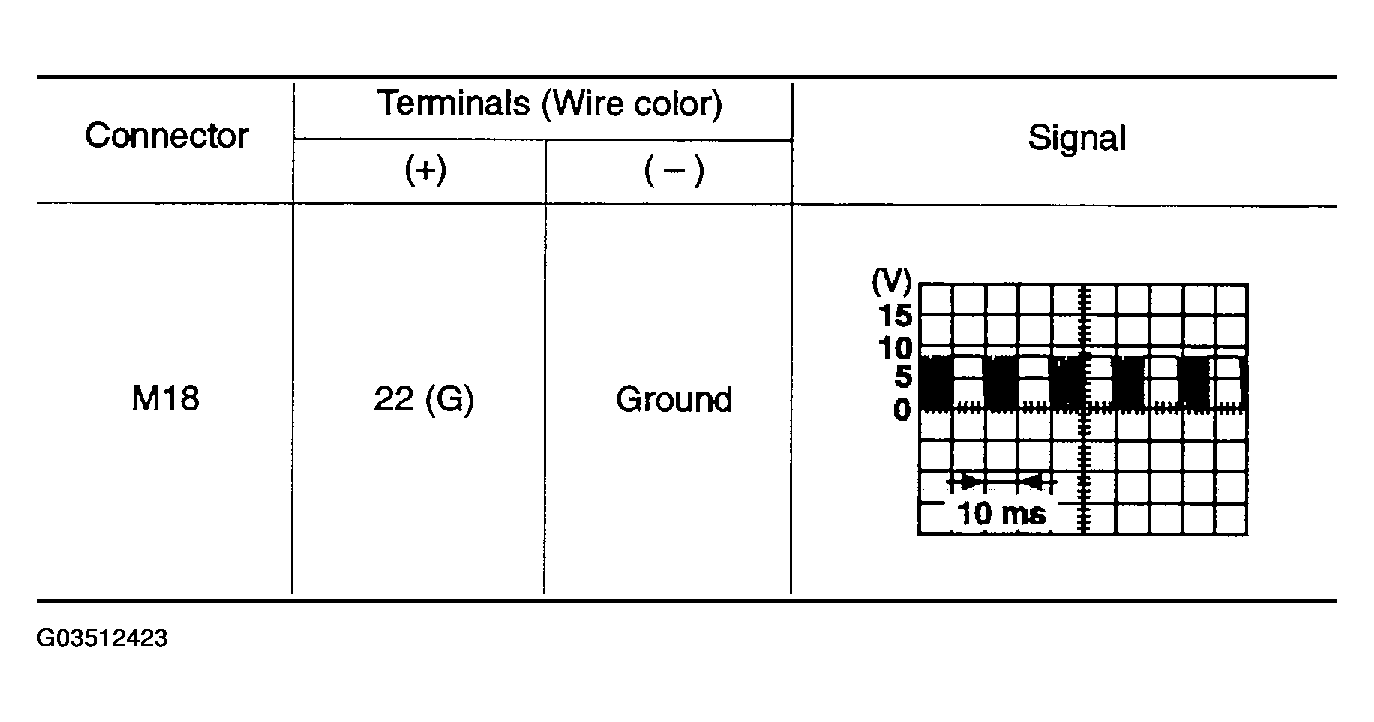

Fig 2: Connector Terminal Signal Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking Signal Between BCM Connector And Ground With Oscilloscope
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG: GO TO 3 .
CHECK BCM OUTPUT SIGNAL

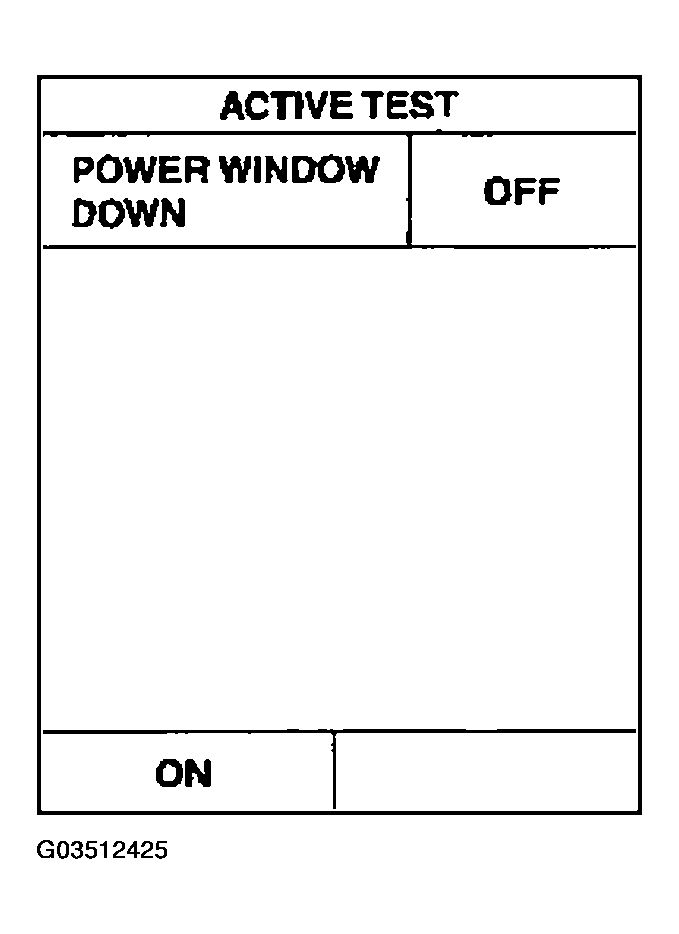

check power window serial link ("POWER WINDOW DOWN") in "ACTIVE TEST" mode with CONSULT-II. Refer to , "ACTIVE TEST ".

When "ACTIVE TEST' is executed, is the window of driver side and passenger side lowered.

Fig 4: Display Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Further inspection is necessary. Refer to SYMPTOM CHART .
2. NG: Replace BCM.
CHECK POWER WINDOW SWITCH GROUND
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.

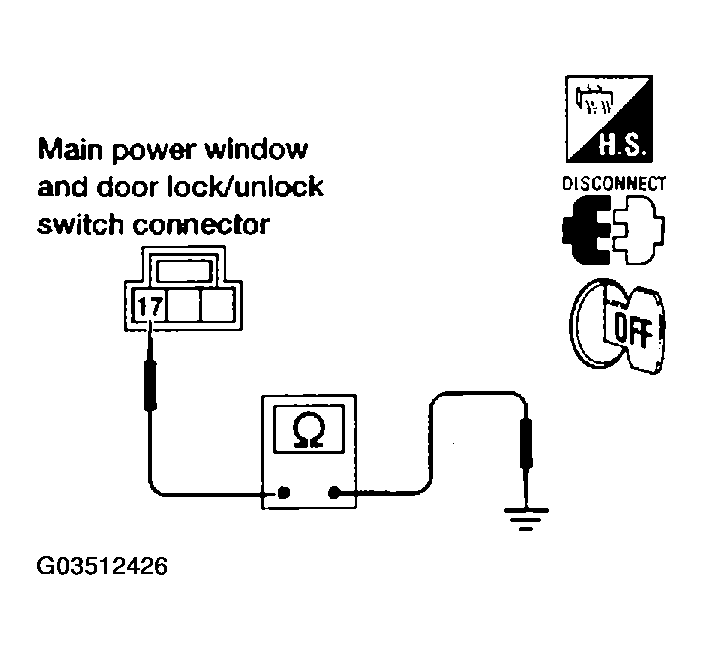

3. Check continuity between main power window and door lock/unlock switch connector D8 terminal 17 and ground.
  17 (B) - Ground: Continuity should exist.

  Fig 5: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

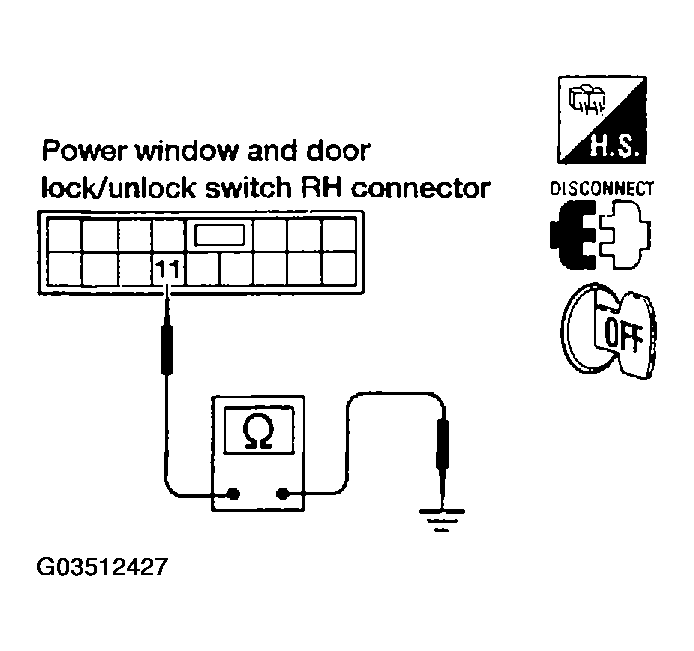

4. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 11 and ground.
  11 (B) - Ground: Continuity should exist.
Fig 6: Checking Continuity Between Power Window And Door Lock/Unlock Switch And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness.
CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Disconnect BCM.

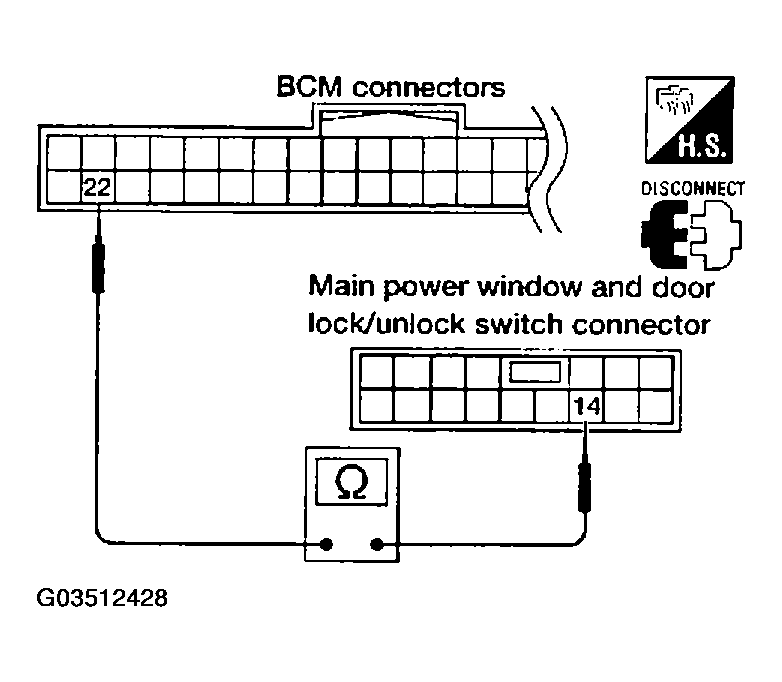

2. Check continuity between BCM connector M18 terminal 22 and main power window and door lock/unlock switch connector D7 terminal 14.
  22 (G) - 14 (LG/W): Continuity should exist.

  Fig 7: Checking Continuity Between BCM Connector Terminal And Main Power Window Switch Connector Terminal
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between BCM connector M18 terminal 22 and power window and door lock/unlock switch RH connector D105 terminal 16.
  22 (G) - 16 (LG/W): Continuity should exist.
OK or NG
1. OK: Replace main power window and door lock/unlock switch or power window and door lock/unlock switch RH.
2. NG: Repair or replace harness.
