Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

Locating Data Link Connector

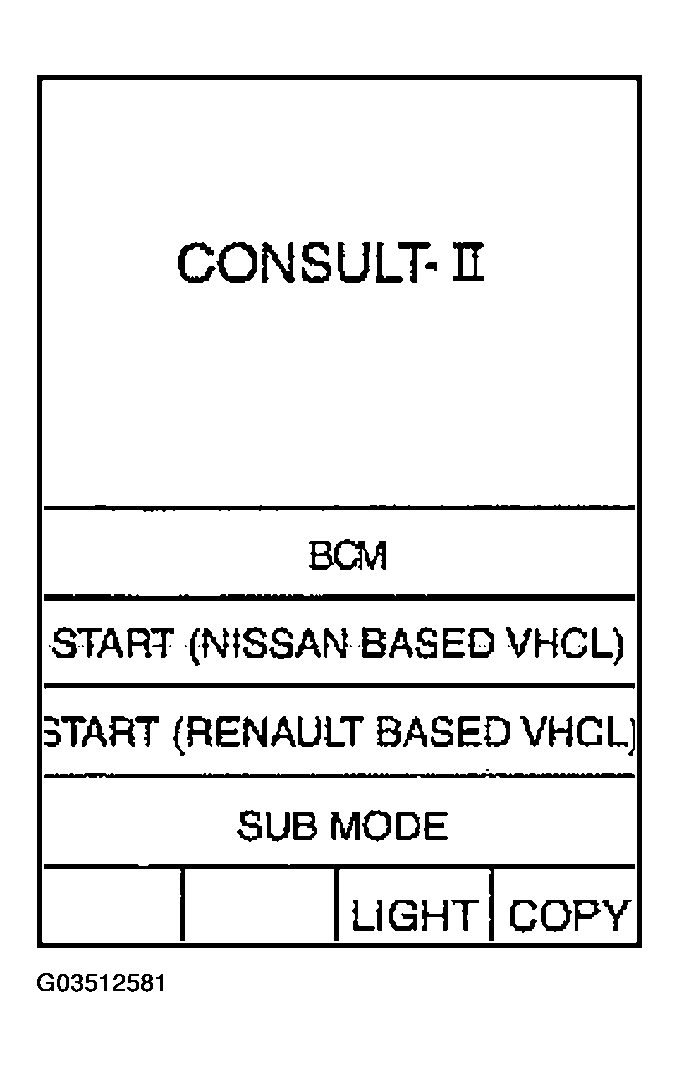

Touch "START (NISSAN BASED VHCL)".

Fig 1: Scan Tool Display With CONSULT-II (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

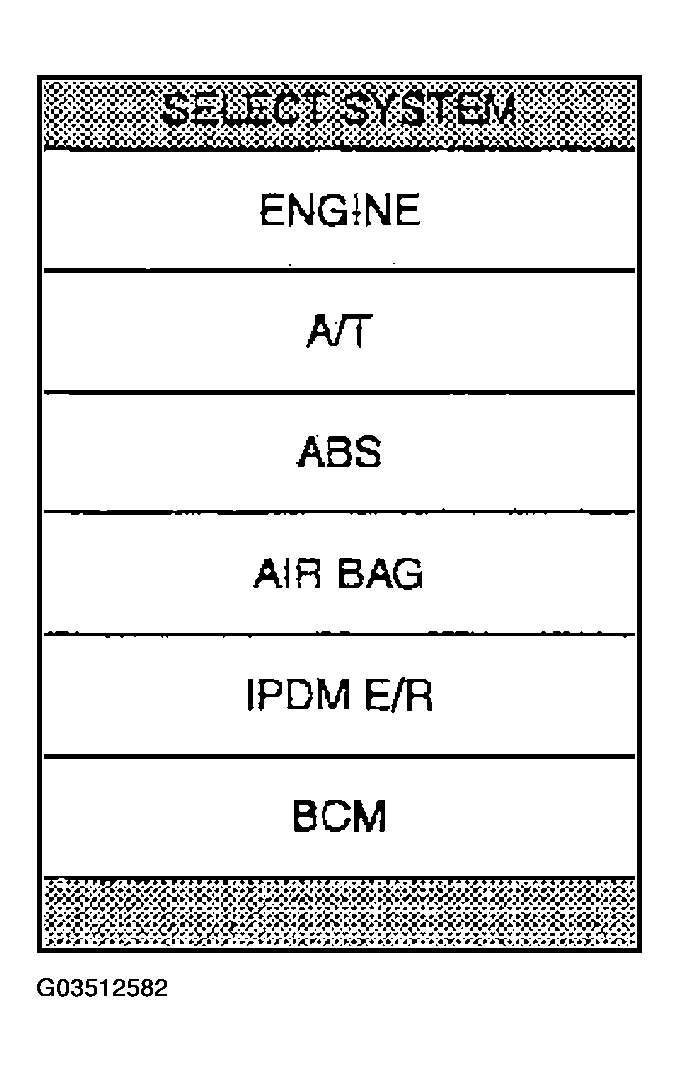

Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT ".

Fig 2: Scan Tool Display With CONSULT-II (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

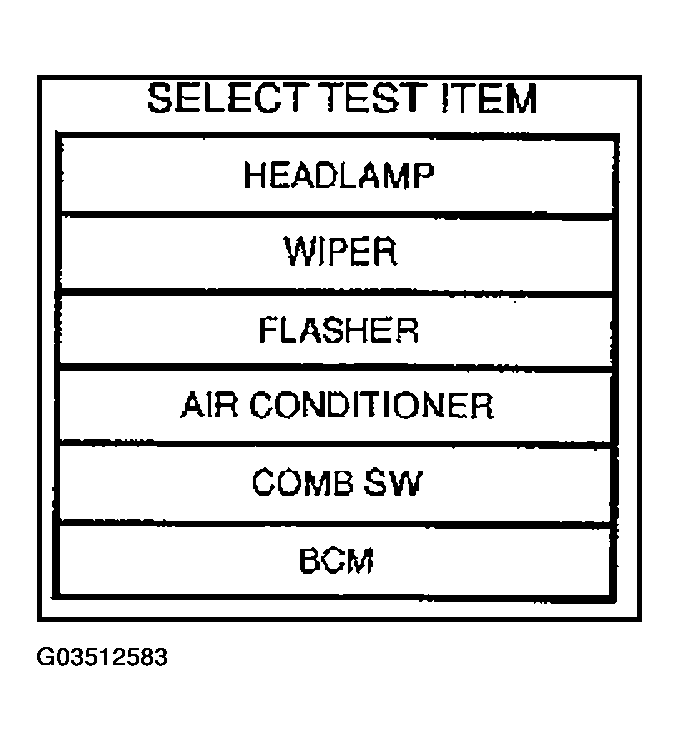

Touch "HEADLAMP" on "SELECT TEST ITEM" screen.

Fig 3: Scan Tool Display With CONSULT-II (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
