Steering Switch Check
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- AV SWITCH SELF-DIAGNOSIS FUNCTION CHECK
- Start AV switch self-diagnosis function. Refer to , "AV SWITCH SELF-DIAGNOSIS FUNCTION ".
- Operate steering switch.
Does steering switch operate normally?
- YES: INSPECTION END.
- NO: GO TO 2.

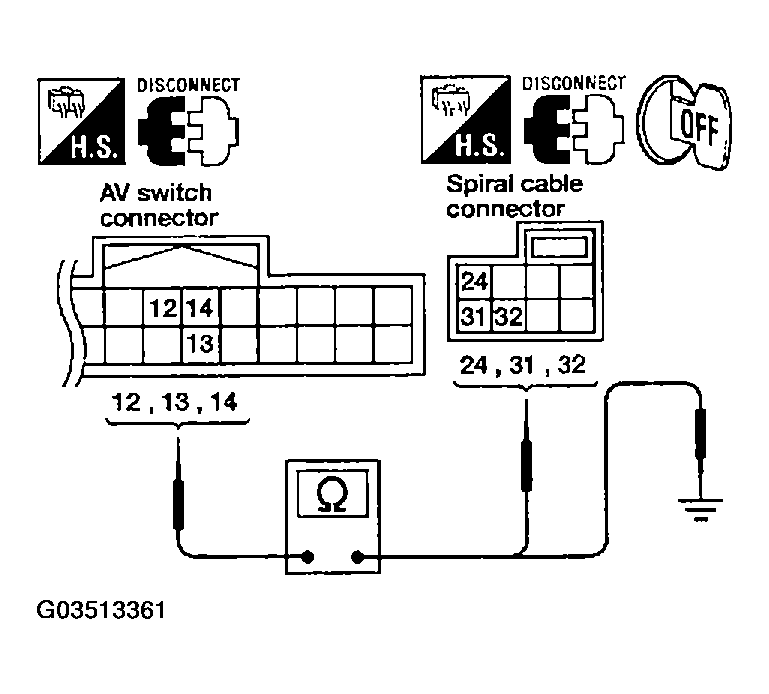

- CHECK HARNESS
- Turn ignition switch OFF.
- Disconnect AV switch connector and spiral cable connector.
- Check continuity between spiral cable harness connector terminal and AV switch harness connector terminal.SPIRAL CABLE AND AV SWITCH CONNECTOR TERMINALS CONTINUITY
Terminals Continuity Spiral cable AV switch Connector Terminal Connector Terminal (Wire color) M30 32 (G) M98 13 (G) Yes 31 (L) 14 (L) 24 (R) 12 (R) - Check continuity between AV switch and ground.AV SWITCH CONNECTOR TERMINALS CONTINUITY
Terminals Continuity AV switch - Connector Terminal (Wire color) M98 12 (R) Ground No 13 (G) 14 (L)
OK or NG
- OK: GO TO 3.
- NG: Repair harness.

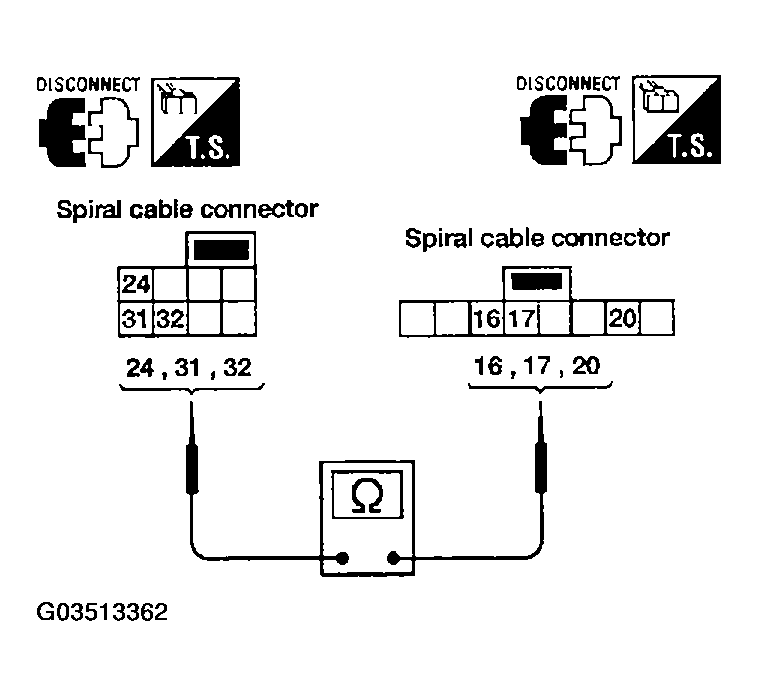

- SPIRAL CABLE CHECK
- Disconnect spiral cable connector.
- Check continuity between spiral cable harness connector terminal.
SPIRAL CABLE CONNECTOR TERMINALS CONTINUITYTerminals Continuity Spiral cable Connector Terminal Connector Terminal M30 32 M102 16 Yes 31 17 24 20 Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 4.
- NG: Replace spiral cable. Refer to SPIRAL CABLE .

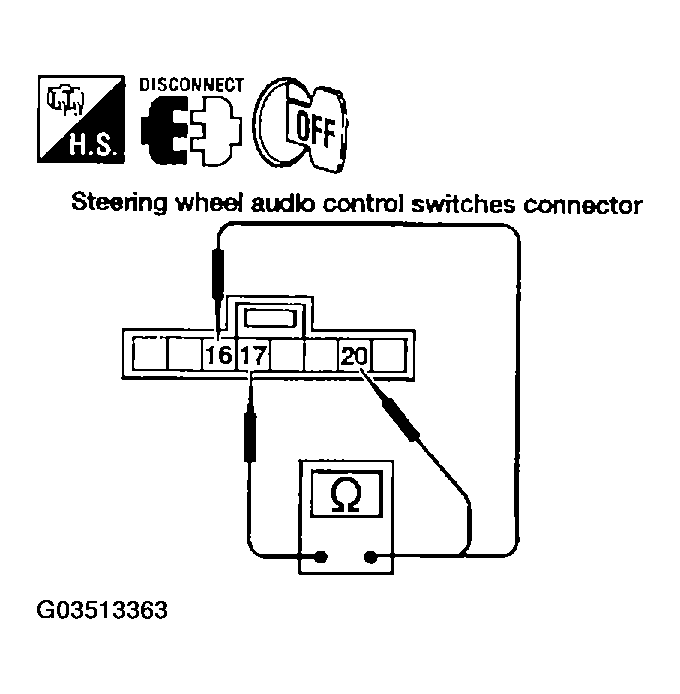

- CHECK STEERING SWITCH RESISTANCE
Check resistance between steering switch terminals.
STEERING SWITCH TERMINALS RESISTANCETerminal Signal name Condition Resistance (ohm) (Approx.) 16 17 Seek (down) Depress (station) down switch. 165 Power Depress power switch. 0 Volume (down) Depress volume down switch. 652 20 17 Seek (up) Depress (station) up switch. 165 Mode Depress mode switch. 0 Volume (up) Depress volume up switch. 652 OK or NG
- OK: INSPECTION END.
- NG: Replace steering switch. Refer to REMOVAL AND INSTALLATION OF STEERING WHEEL AUDIO CONTROL SWITCHES ".
