Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

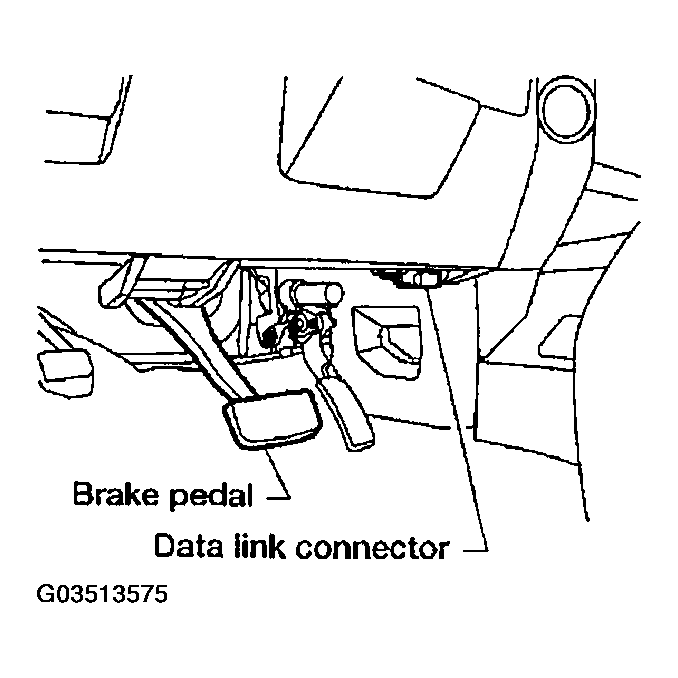

    Fig 1: Locating Data Link Connector
    G03513575Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

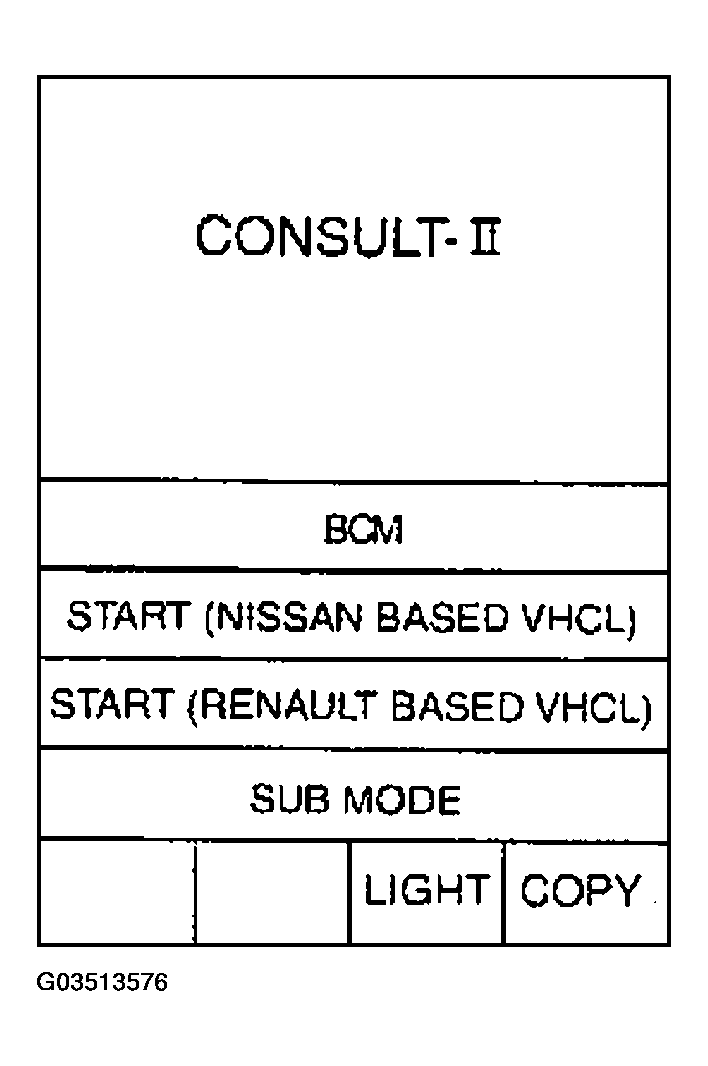

    Fig 2: Displaying Consult-II
    G03513576Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IPDM E/R" on "SELECT SYSTEM" screen.
    • If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to PRECAUTIONS

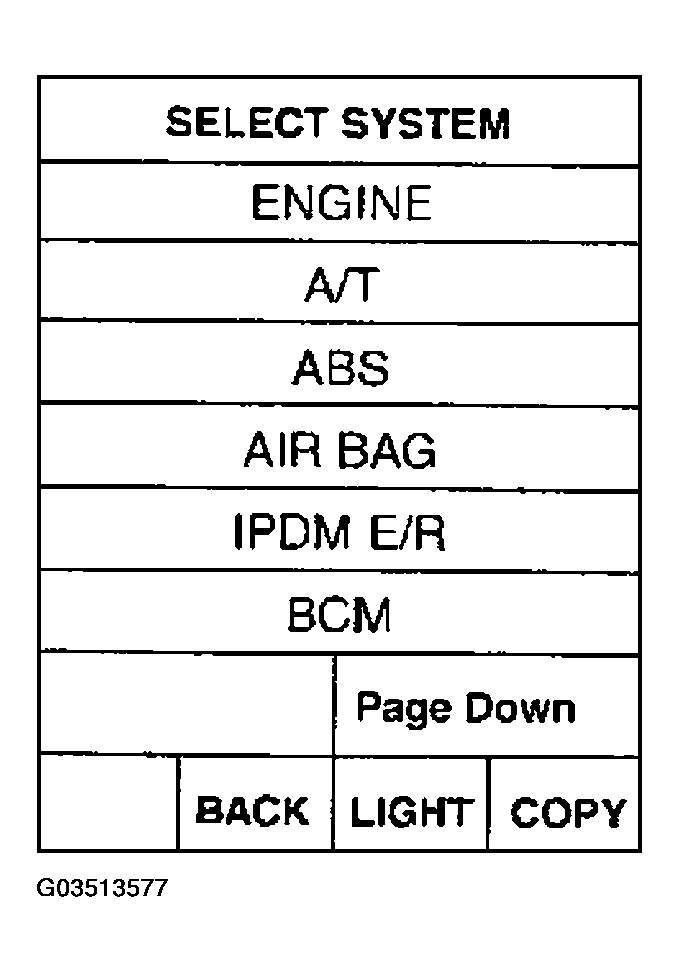

    Fig 3: Displaying Select System
    G03513577Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Select "SELF-DIAG RESULTS" or "DATA MONITOR".

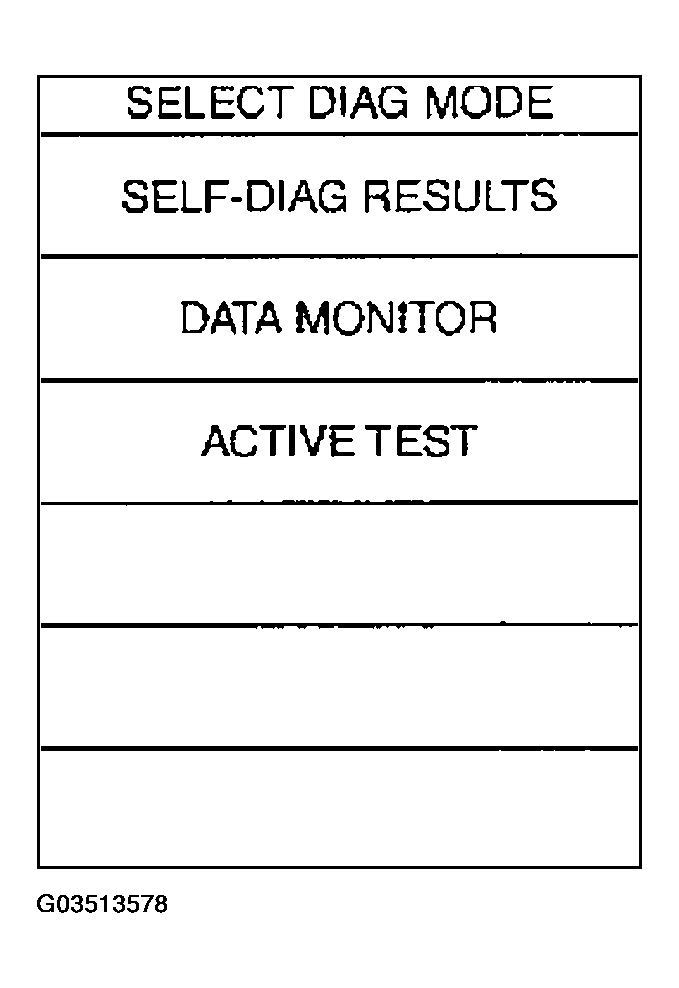

    Fig 4: Displaying Self-Diag Results
    G03513578Courtesy of NISSAN MOTOR CO., U.S.A.
