Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECTION START

    Which malfunction (A or B) is duplicated?

    A or B

    • A: GO TO  3.
    • B: GO TO 2.
  2. CHECK INTAKE SYSTEM

    Check the following for connection.

    • Air duct
    • Vacuum hoses
    • Intake air passage between air duct and intake manifold

    OK or NG

    • OK: GO TO 3.
    • NG: Reconnect the parts.
  3. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

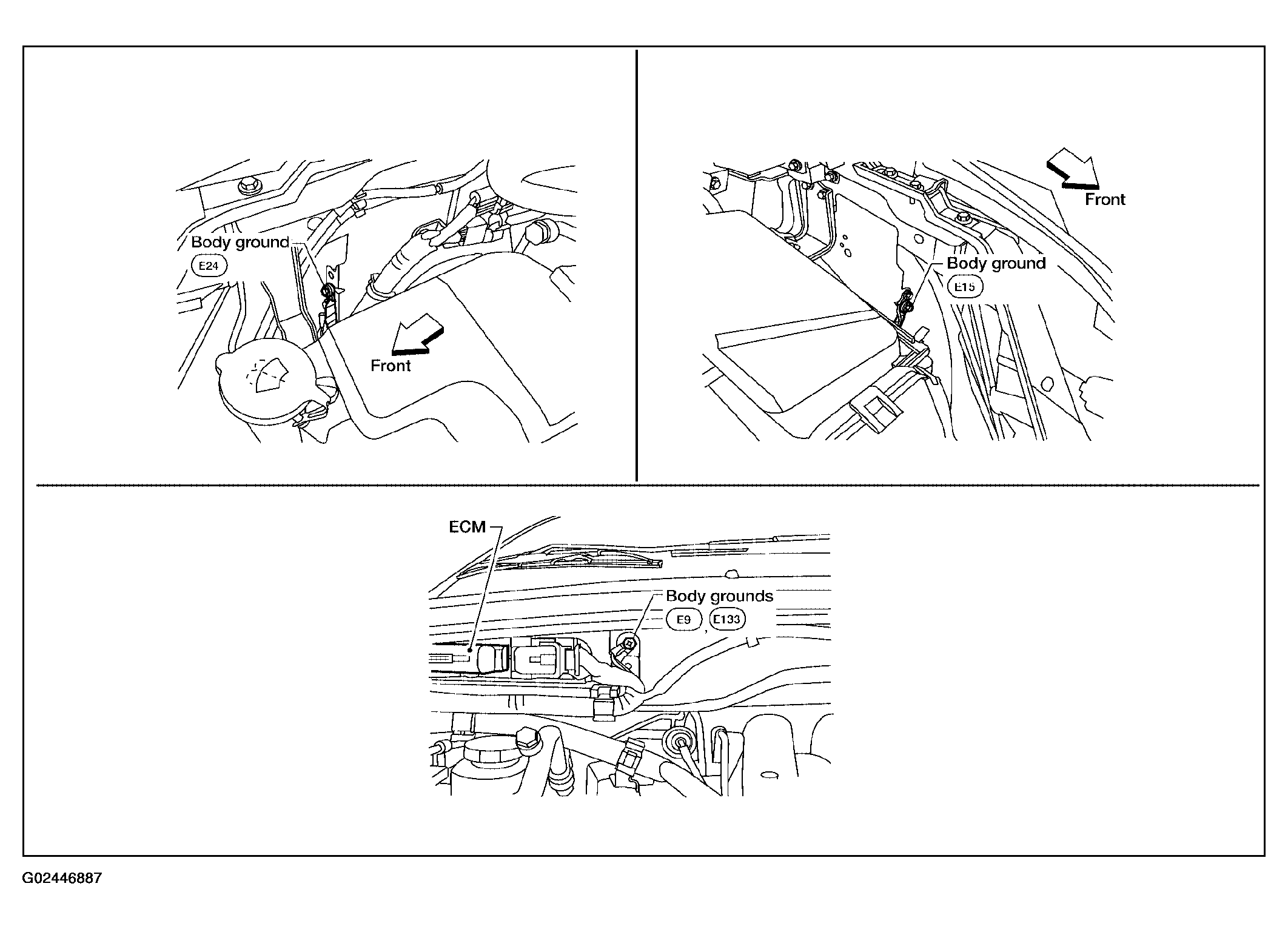

      Fig 1: Checking Ground Connections
      G02446887Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace ground connections.
  4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect mass air flow (MAF) sensor harness connector.
    2. Turn ignition switch ON.

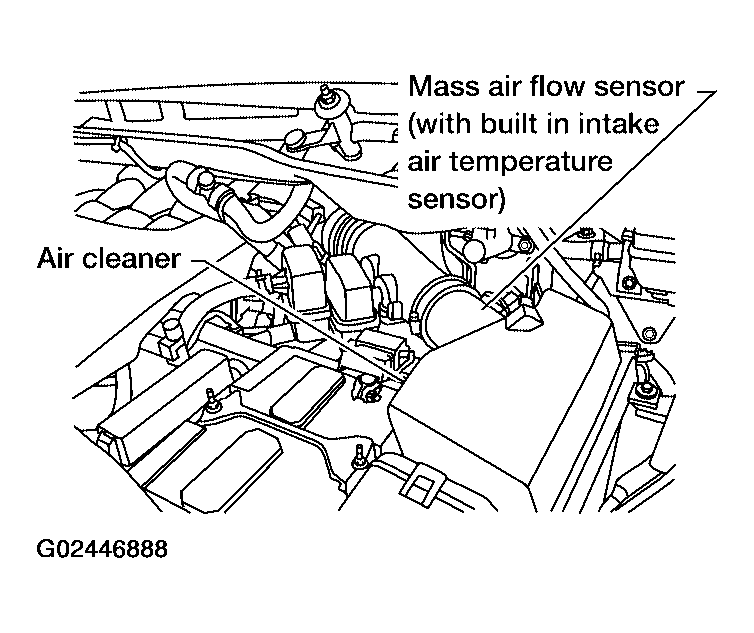

      Fig 2: Disconnecting Mass Air Flow (MAF) Sensor Harness Connector
      G02446888Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between MAF sensor terminal 5 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  6.
    • NG: GO TO 5.

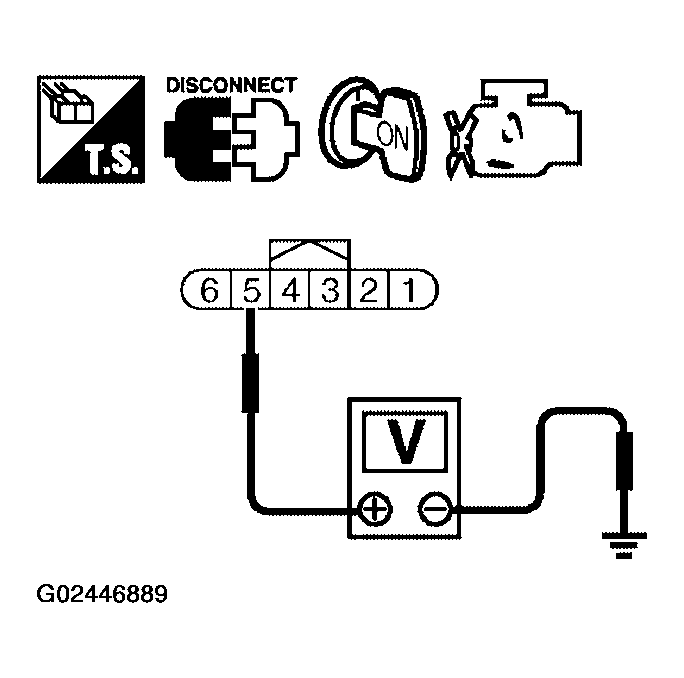

      Fig 3: Checking MAF Sensor Power Supply Circuit
      G02446889Courtesy of NISSAN MOTOR CO., U.S.A.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E5, F14
    • Harness for open or short between IPDM E/R and mass air flow sensor
    • Harness for open or short between mass air flow sensor and ECM
    • : Repair harness or connectors.
  6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect TCM harness connector.
    4. Check harness continuity between MAF sensor terminal 4 and ECM terminal 67, TCM terminal 42. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    5. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  8.
    • NG: GO TO 7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E19, F33
    • Harness for open or short between mass air flow sensor and ECM
    • Harness for open or short between mass air flow sensor and TCM
    • : Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between MAF sensor terminal 3 and ECM terminal 51. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO 9.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK INTAKE AIR TEMPERATURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 10.
    • NG: Replace intake air temperature sensor.
  10. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 11.
    • NG: Replace EVAP control system pressure sensor.
  11. CHECK MASS AIR FLOW SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 12.
    • NG: Replace mass air flow sensor.
  12. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
