Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

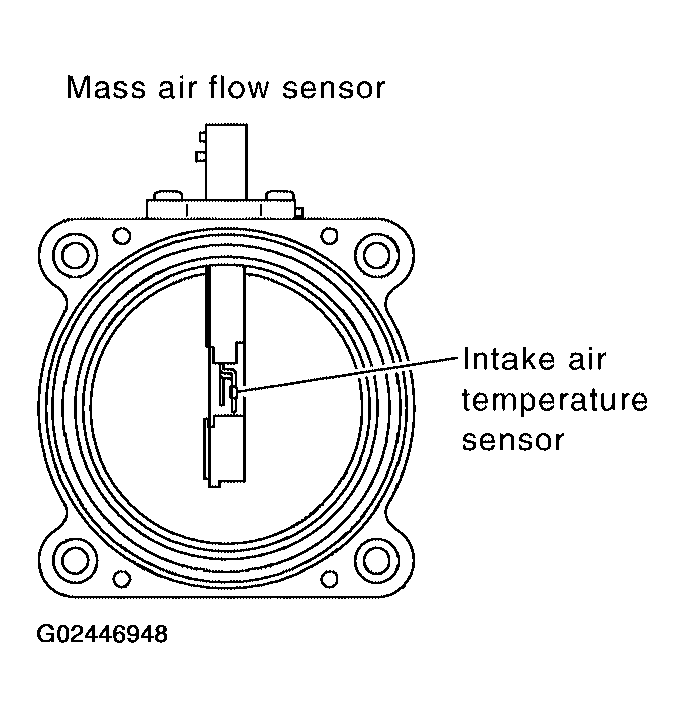

- Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

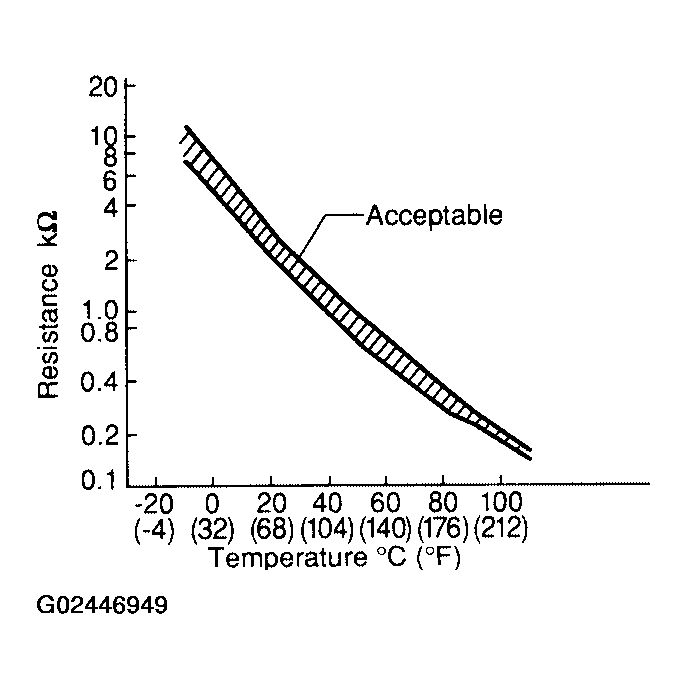

INTAKE AIR TEMPERATURE SENSOR RESISTANCE TABLE
| Intake air temperature °C (°F) |
Resistance kΩ |
| 25 (77) |
1.94 - 2.06 |
- If NG, replace mass air flow sensor (with intake air temperature sensor).
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
