Power Steering Pressure Sensor
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect all harness connectors disconnected.
- Start engine and let it idle.

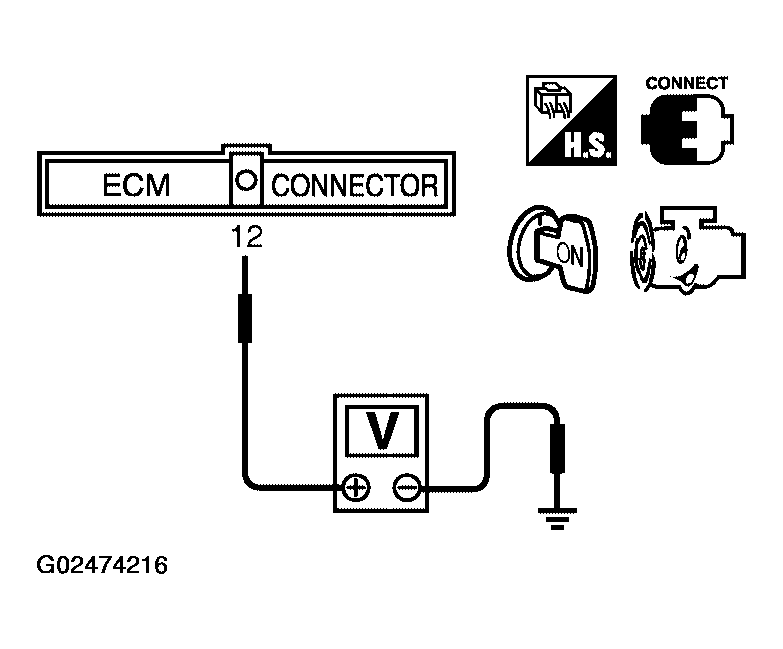

- Check voltage between ECM terminal 12 and ground under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A. VOLTAGE CONDITION TABLE
| Condition |
Voltage |
| Steering wheel is being turned. |
0.5 - 4.5V |
| Steering wheel is not being turned. |
0.4 - 0.8V |
