Combination Meter

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the combination meter cover.
  2. Remove screws using power tool and remove the combination meter assembly.
    • Disconnect electrical connectors.

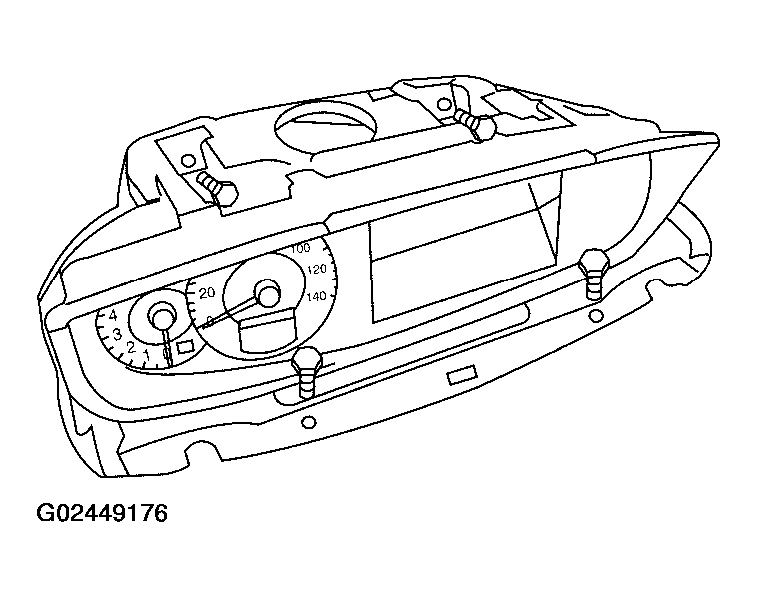

      Fig 1: Removing Combination Meter Assembly
      G02449176Courtesy of NISSAN MOTOR CO., U.S.A.
