Section 26 (Generators & Regulators): Overhaul: Generator

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For overhaul, see Fig 1 .

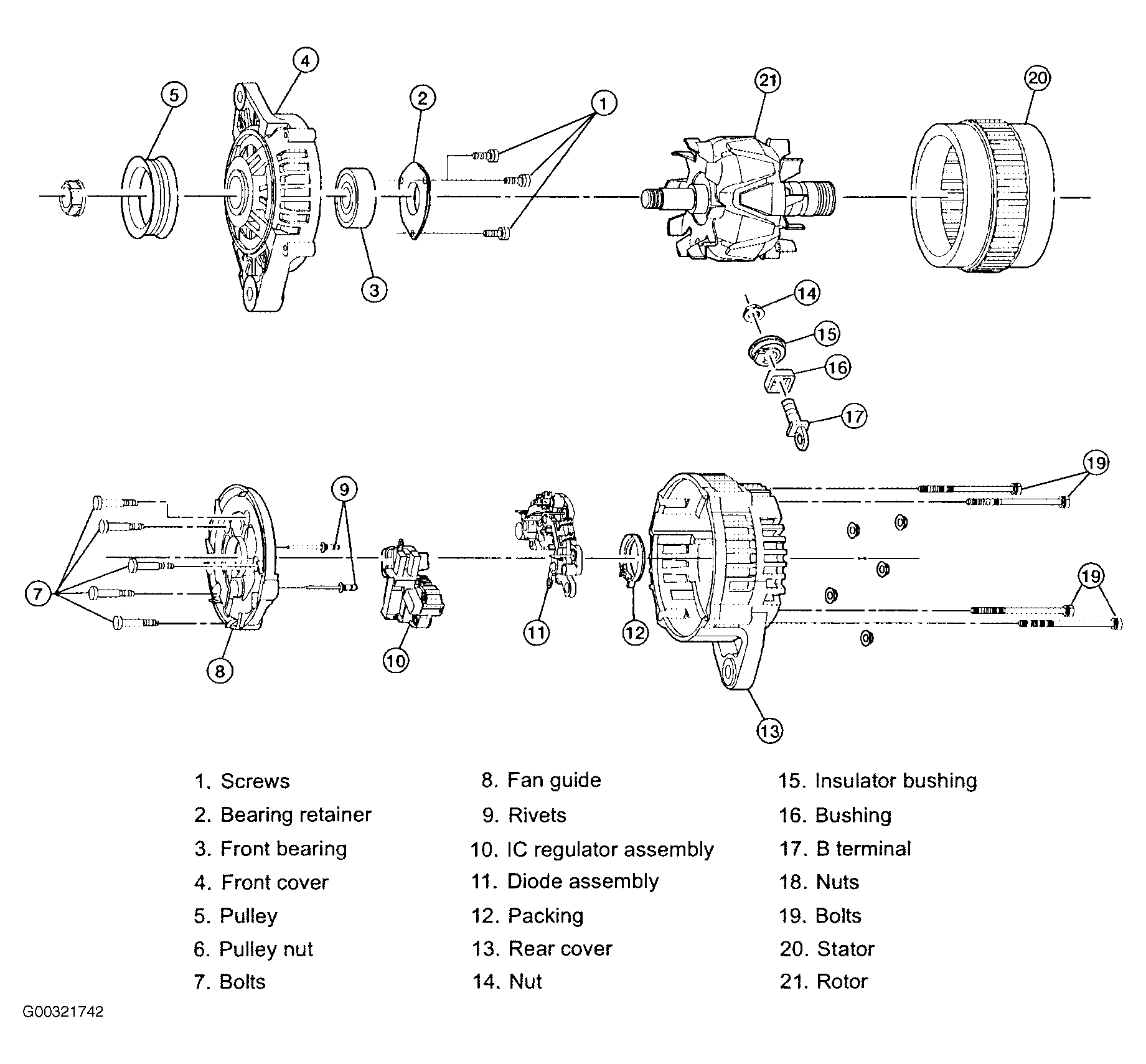

Fig 1: Exploded View of Generator

Courtesy of NISSAN MOTOR CO., U.S.A.
