Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console or center seat as required. Refer to INSTRUMENT PANEL ASSEMBLY or FRONT SEAT .
  2. Remove yaw rate/side/decel G sensor attaching nuts as shown.
    • The location of the sensor it the same for all models.
      CAUTION:
      • Do not use power tools to remove or install yaw rate/side/decel G sensor.
      • Do not drop or strike the yaw rate/side/decel G sensor.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.

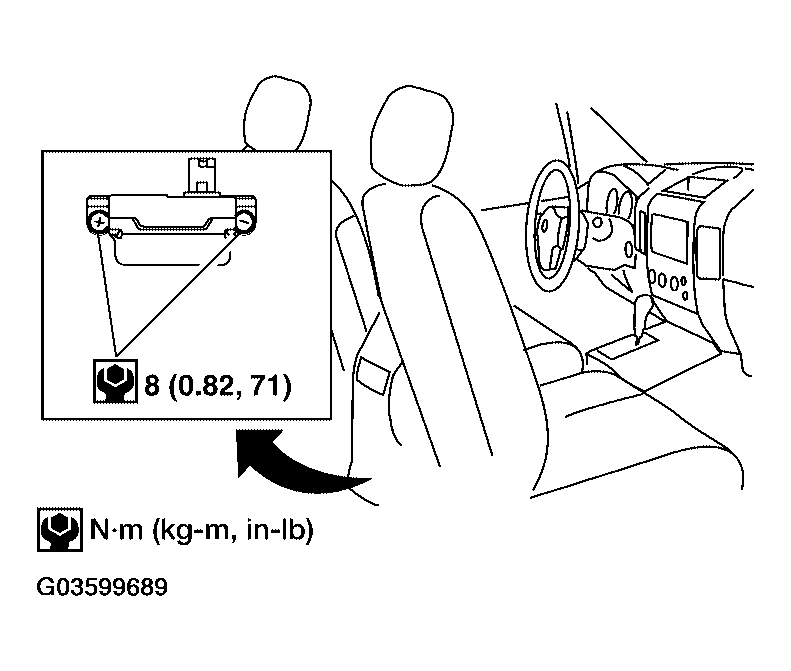

    Fig 1: Removing Yaw Rate/Side/Decel G Sensor Attaching Nuts With Torque Specifications
    G03599689Courtesy of NISSAN MOTOR CO., U.S.A.
