Rear Disc Brake: Components

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

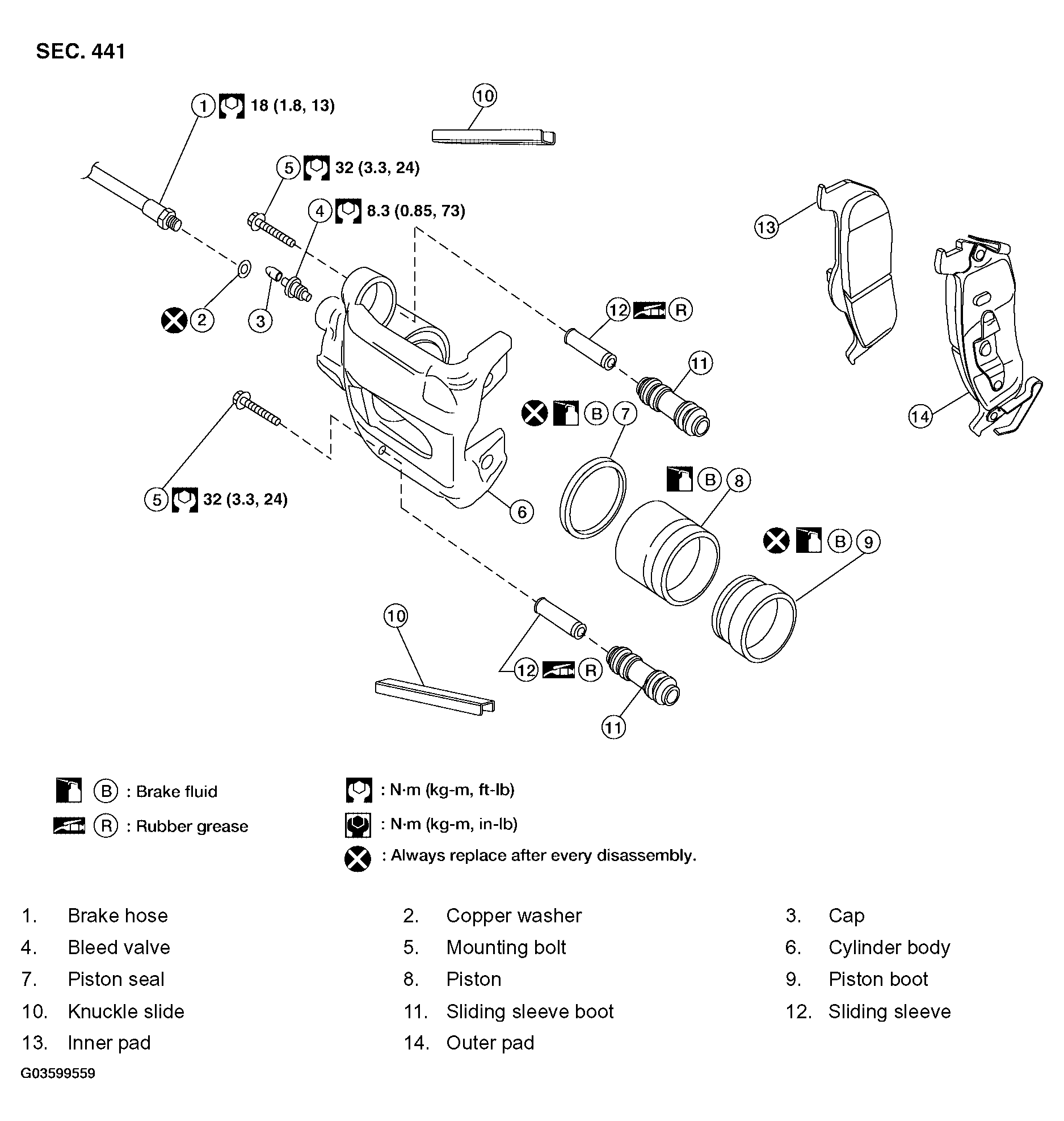

Fig 1: Rear Disc Brake Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne particles or other materials.

CAUTION:

While removing cylinder body, never depress brake pedal because piston will pop out.
It is not necessary to remove the torque member and disconnect the brake hose except for disassembly or replacement of cylinder body. When replacing brake pads, hang cylinder body with a wire so as not to stretch brake hose.
Do not damage piston boot.
Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or it a soft pedal occurs at very low mileage. Refer to "BRAKE BURNISHING PROCEDURE ".
