Lighting Switch Inspection

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.

When lighting switch is in AUTO position: AUTO LIGHT SW ON

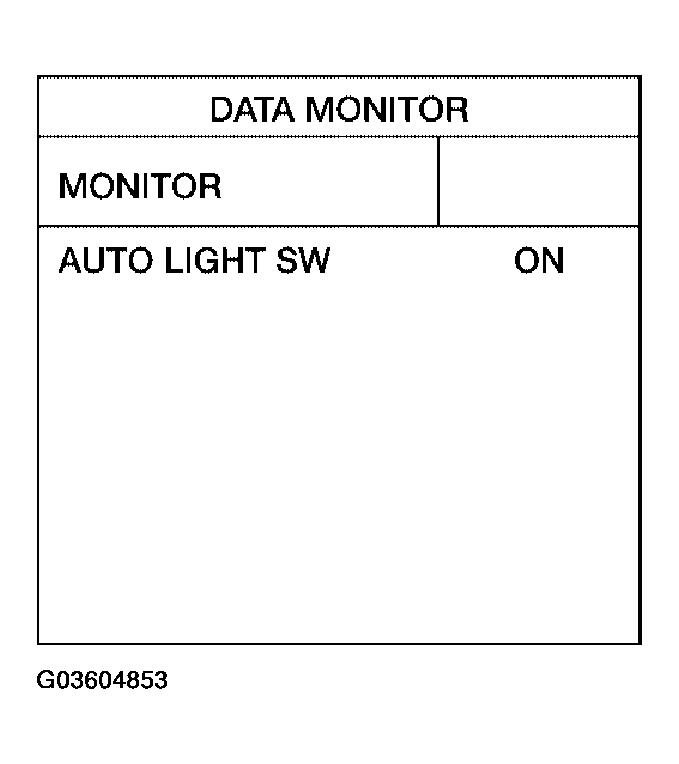

Fig 1: Checking Lighting Switch Input Signal With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG
- OK: Inspection End.
- NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".
