Optical Sensor System Inspection

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OPTICAL SENSOR INPUT SIGNAL

    With CONSULT-II

    Select "BCM" on CONSULT-II. With "OPTICAL SENSOR" data monitor, check difference in the voltage when the optical sensor is illuminated and not illuminated.

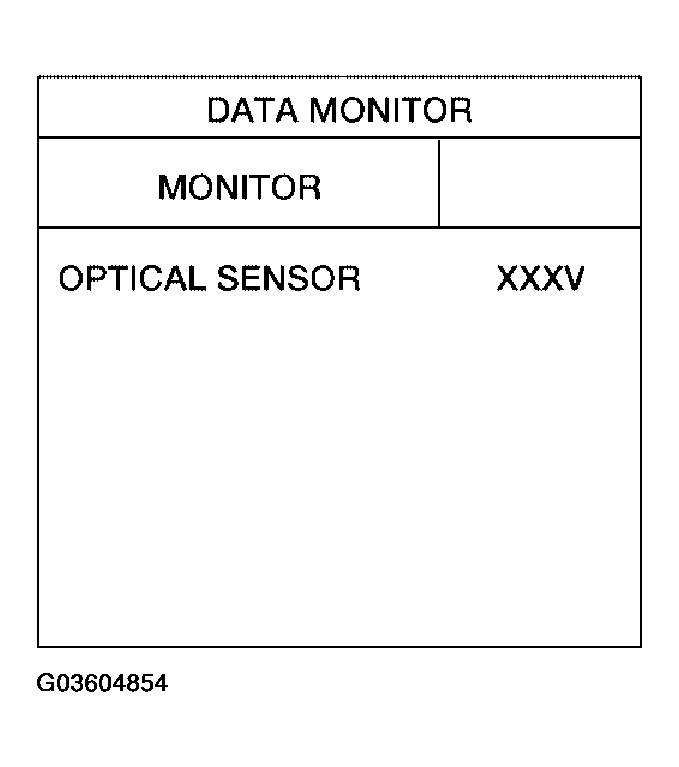

    Fig 1: Checking Optical Sensor Input Signal With CONSULT-II
    G03604854Courtesy of NISSAN MOTOR CO., U.S.A.

    Illuminated

    OPTICAL SENSOR: 3.1V or more

    Not illuminated

    OPTICAL SENSOR: 0.6V or less

    NOTE: Optical sensor must be completely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may not satisfy the standard.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    • OK: Inspection End.
    • NG: GO TO 2.
  2. CHECK OPTICAL SENSOR SIGNAL GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect BCM connectors and optical sensor connector.
    3. Check continuity (open circuit) between BCM harness connector M18 terminal 18 (P) and optical sensor harness connector M402 terminal 3 (P).

      18 (P) - 3 (P): Continuity should exist.

    4. Check continuity (short circuit) between BCM harness connector M18 terminal 18 (P) and ground.

      18 (P) - Ground: Continuity should not exist.

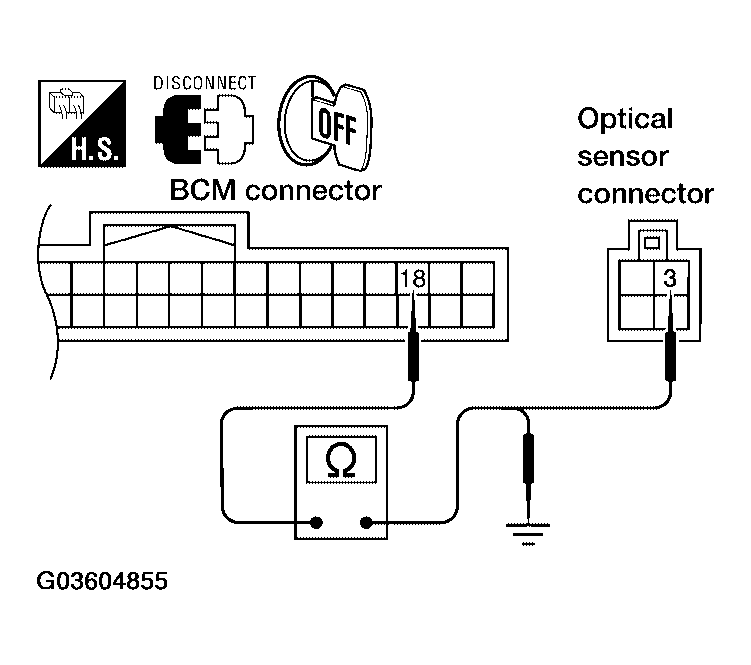

    5. Fig 2: Checking Continuity Between BCM Harness Connector M18 Terminal 18 And Optical Sensor Harness Connector M402 Terminal 3 And Ground
      G03604855Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair harness or connector.
  3. CHECK OPTICAL SENSOR SIGNAL CIRCUIT
    1. Check continuity (open circuit) between BCM harness connector M20 terminal 58 (W/R) and optical sensor harness connector M402 terminal 4 (W/R).

      58 (W/R) - 4 (W/R): Continuity should exist.

    2. Check continuity (short circuit) between BCM harness connector M20 terminal 58 (W/R) and ground.

      58 (W/R) - Ground: Continuity should not exist.

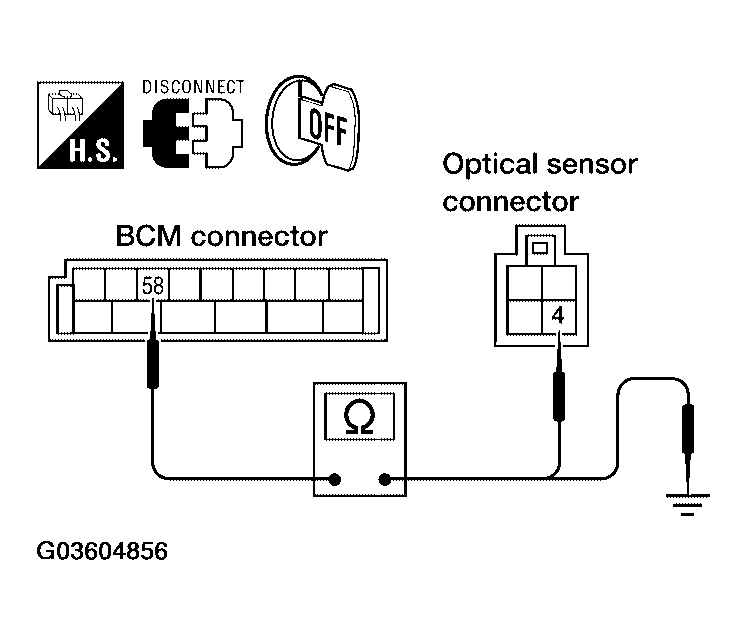

      Fig 3: Checking Continuity Between BCM Harness Connector M20 Terminal 58 And Optical Sensor Harness Connector M402 Terminal 4 And Ground
      G03604856Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG
