Check Fuel Level Sensor Unit and Fuel Pump

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between fuel level sensor unit and fuel pump connector terminals 2 and 5.

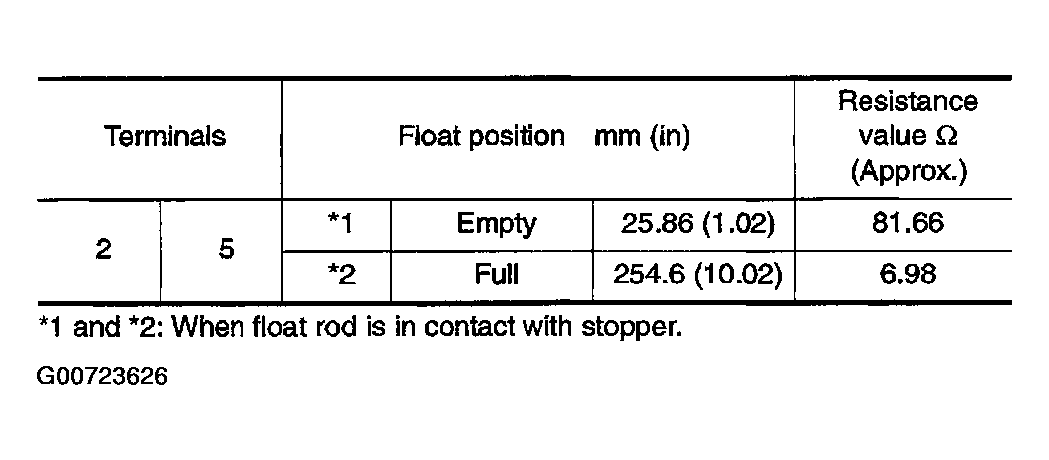

Fig 1: Sensor Resistance Values Table
G00723626Courtesy of NISSAN MOTOR CO., U.S.A.

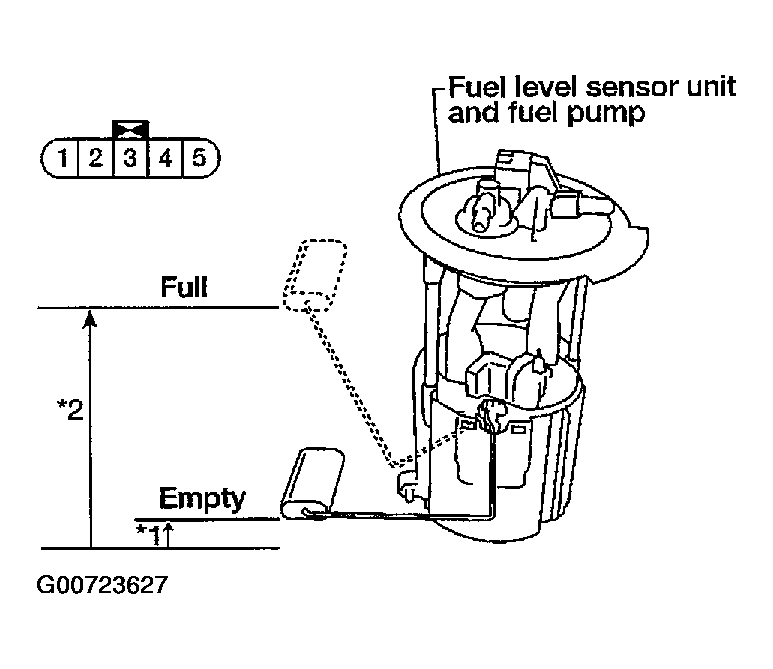

Fig 2: Fuel Level Sensor Test Terminal Identification
G00723627Courtesy of NISSAN MOTOR CO., U.S.A.
