Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BUZZER" on "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  3. Touch "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

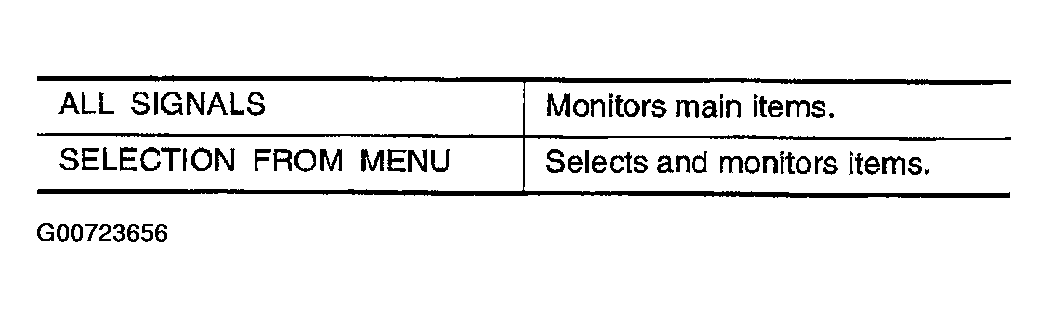

    Fig 1: Data Monitor Operation Procedure
    G00723656Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If "SELECTION FROM MENU" is selected, touch the item you desire to monitor. If "ALL SIGNALS" is selected, all control items are monitored.
  5. Touch "START".
  6. During monitoring, touching "RECORD" can start recording the monitored item status.
