CAN Communication Unit: Notes
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Go to CAN SYSTEM , when selecting your CAN system type from the following table.
CAN SYSTEM TYPE SELECTION
| Body type | Truck | ||||||||||||||||
| Axle | 2WD | 4WD | |||||||||||||||
| Engine | VK56DE | ||||||||||||||||
| Transmission | A/T | ||||||||||||||||
| Brake control | ABS | ABLS | VDC | ABLS | VDC | ||||||||||||
| Electronic locking rear differential | x | x | x | x | x | ||||||||||||
| Automatic drive positioner | x | x | x | x | x | x | x | x | x | x | x | ||||||
| Navigation system | x | x | x | x | x | x | |||||||||||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 4) | CAN SYSTEM (TYPE 5) | CAN SYSTEM (TYPE 6) | CAN SYSTEM (TYPE 7) | CAN SYSTEM (TYPE 8) | CAN SYSTEM (TYPE 9) | CAN SYSTEM (TYPE 10) | CAN SYSTEM (TYPE 11) | CAN SYSTEM (TYPE 12) | CAN SYSTEM (TYPE 13) | CAN SYSTEM (TYPE 14) | CAN SYSTEM (TYPE 15) | CAN SYSTEM (TYPE 16) | CAN SYSTEM (TYPE 17) |
| x: Applicable | |||||||||||||||||
NOTE:
Confirming the presence of the following items helps to identify CAN system type.

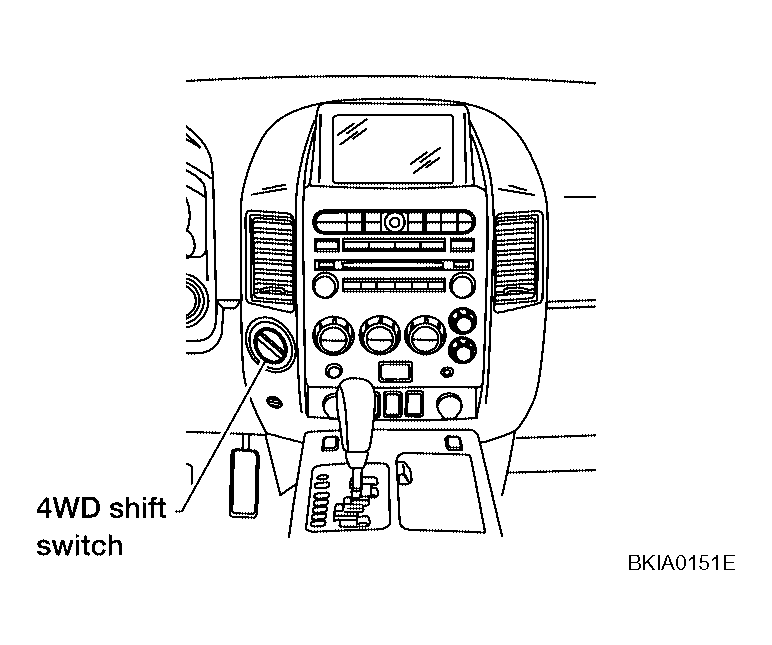

- Models with 4WD

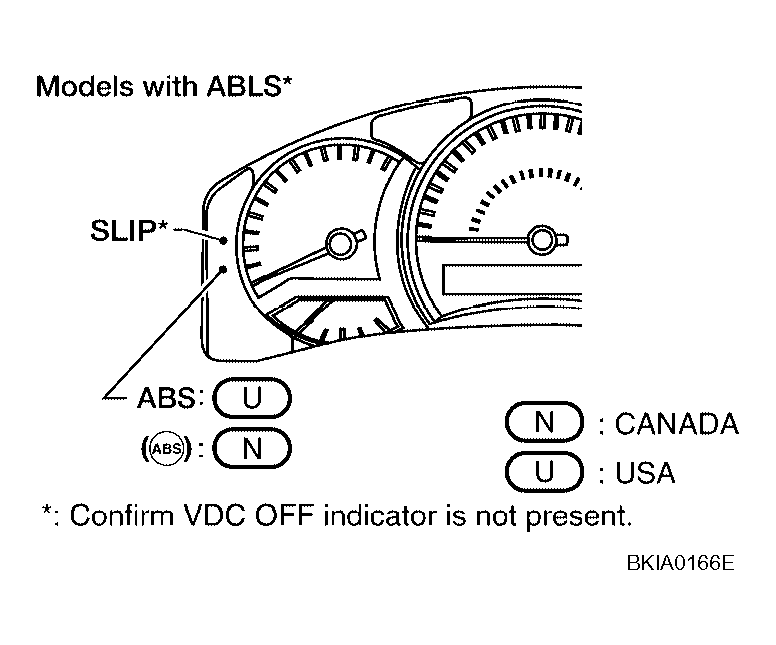

- Models with ABLS

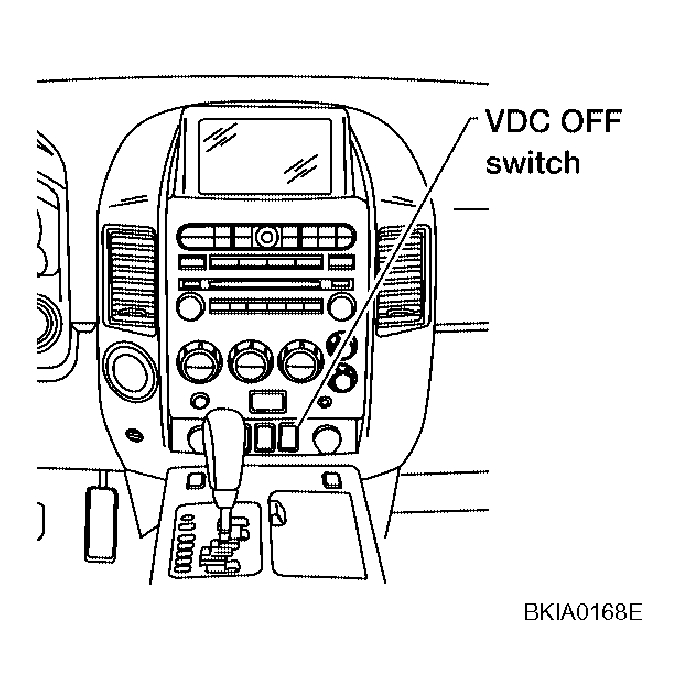

- Models with VDC

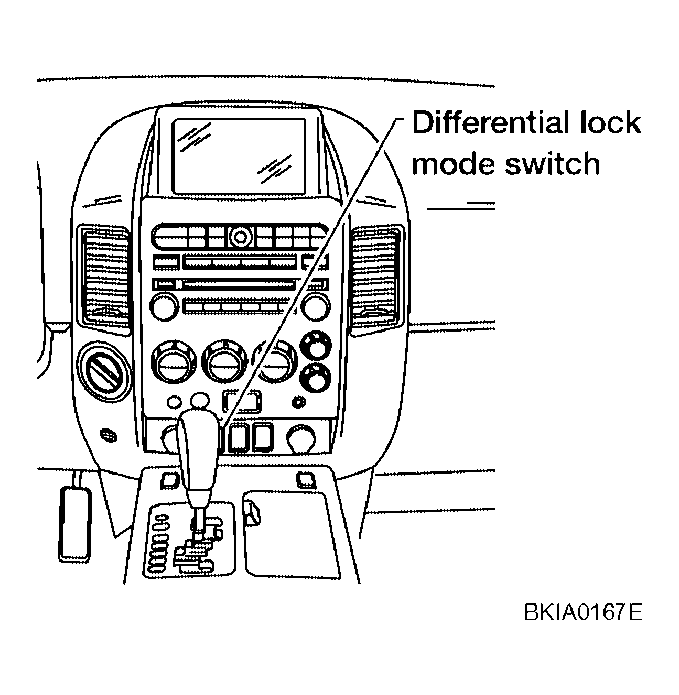

- Models with electronic locking rear differential

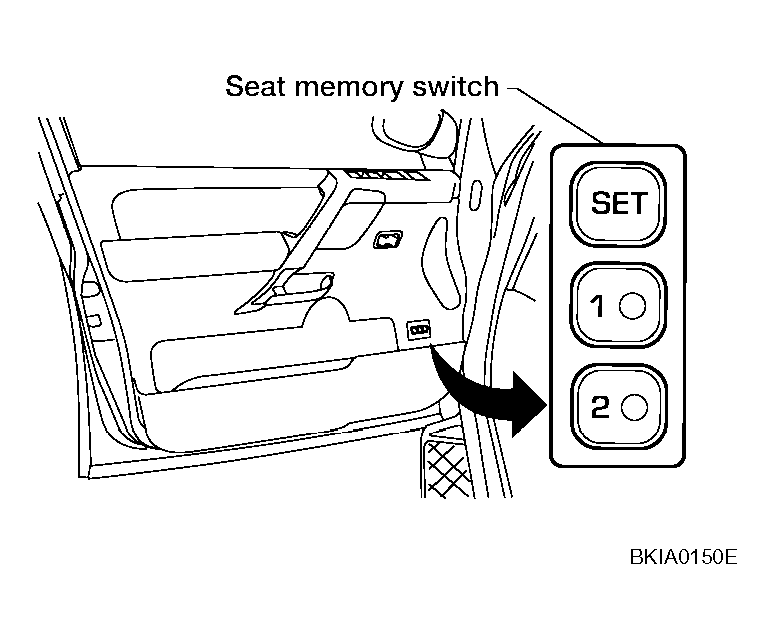

- Models with automatic drive positioner

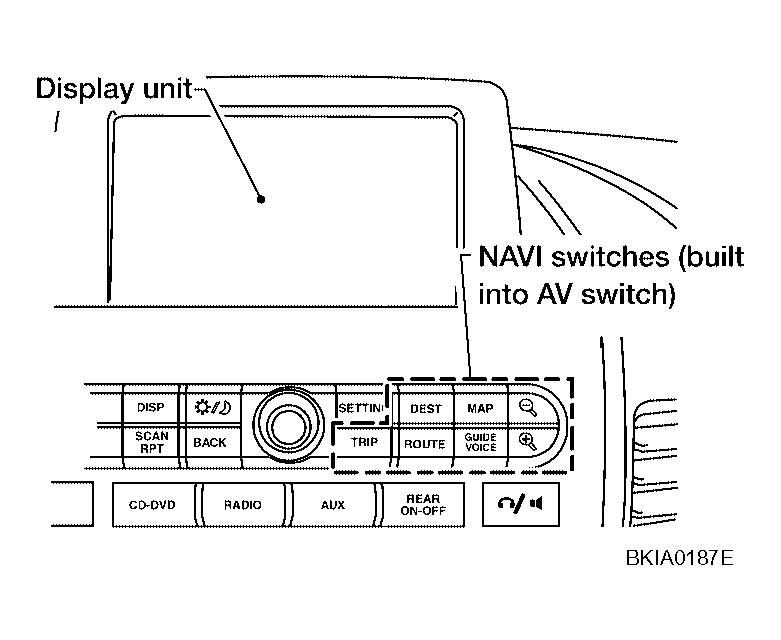

- Models with navigation system
