Check 4WD Shift Indicator Pattern: Notes
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Set 4WD shift switch to "2WD", "4H", "4LO", "4H" and "2WD" in order. Stay at each switch position for at least 2 seconds.
- Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.4WD SHIFT SWITCH OPERATION DESCRIPTION

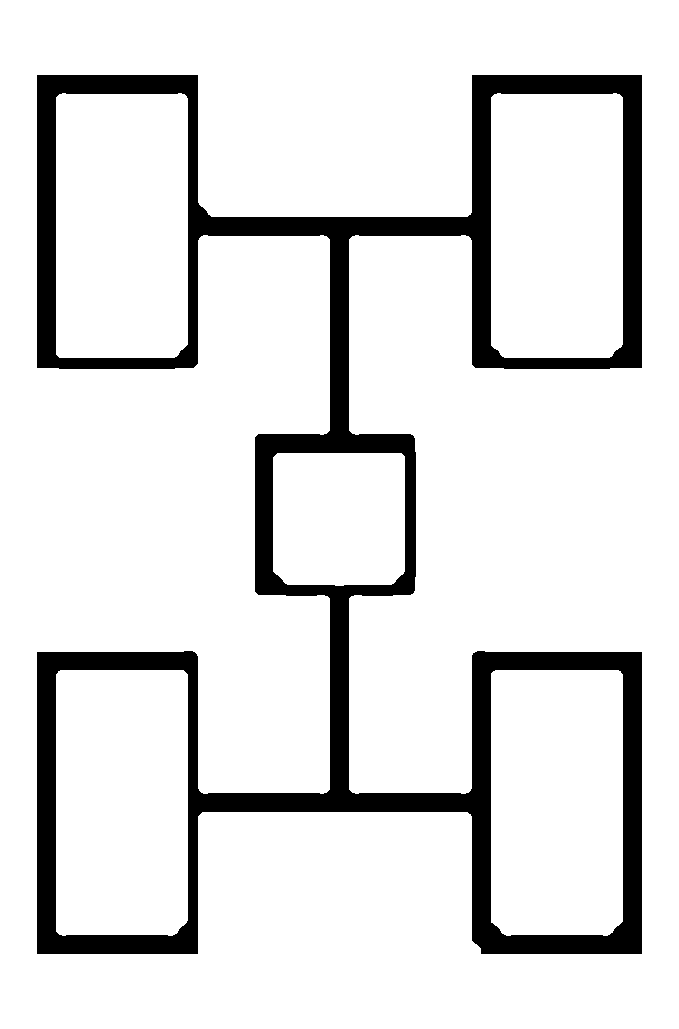

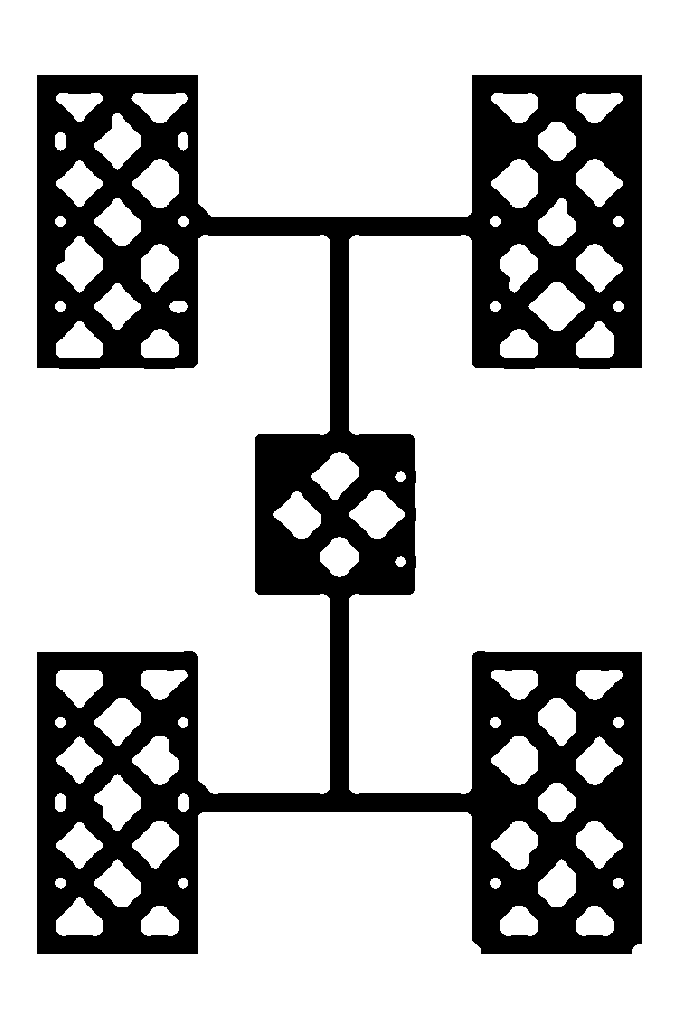

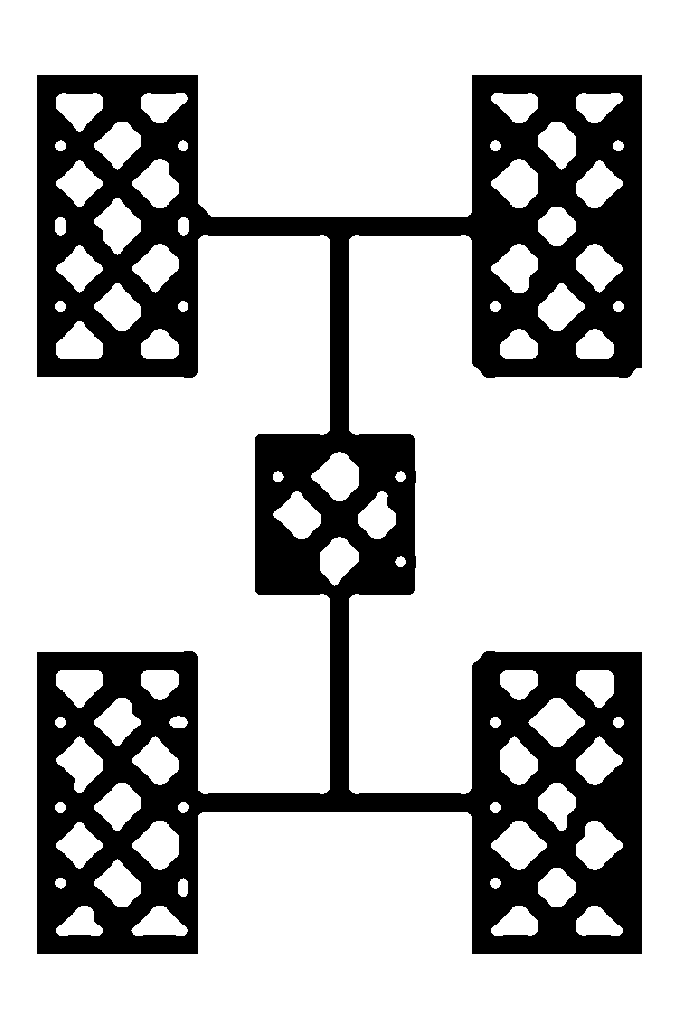

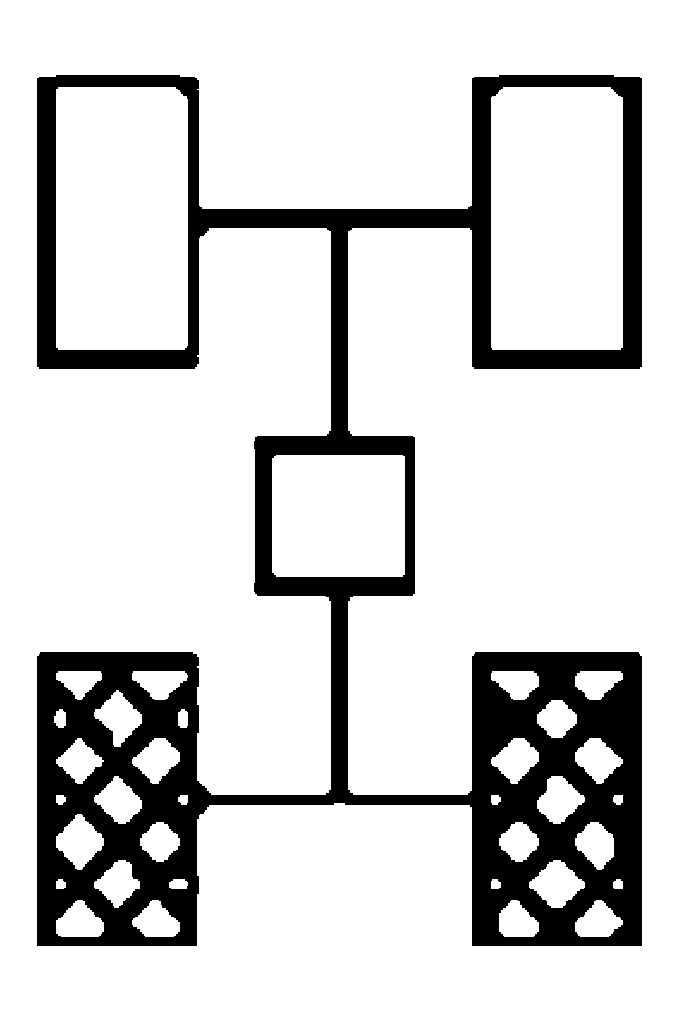

4WD shift switch Indicator lamp Operation of 4WD shift switch 4WD shift 4LO [2WD] OFF 2WD <==> 4H switching can be done while driving. The indicator lamp will change when the driving mode is changed. Gear shifting between 2WD <==> 4H position must be performed at speeds below 100 km/h (60 MPH). [4H] [4LO] Flashing To shift between 4H <==> 4LO, stop the vehicle and select the A/T selector lever to the "N" position with the brake pedal depressed. Depress and turn the 4WD shift switch. The 4WD shift switch will not shift to the desired mode if the transmission is not in "N" or the vehicle is moving with the brake pedal depressed. The 4LO indicator lamp will be lit when the 4LO is engaged. ON - If OK, the position between transfer assembly and transfer control unit is correct.
- If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to pattern table 4WD SHIFT SWITCH CONDITION AND PROCEDURE REFERENCE below.
