Special Service Tools

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS DESCRIPTION

Tool number
(Kent-Moore No.)
Tool name		 Description
ST29020001
(J-24319-01)
Puller

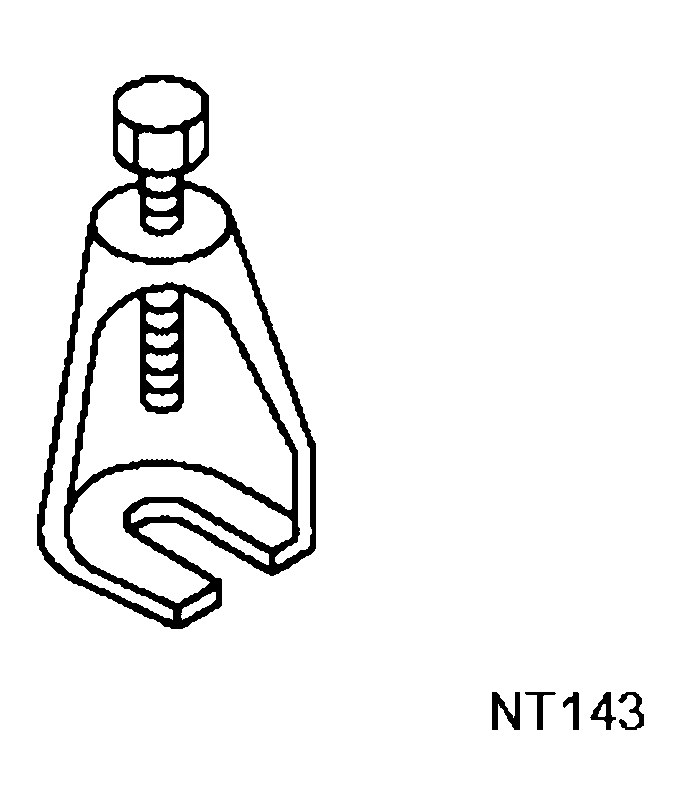

G04175030
 Separating the upper link ball joint stud
KV38108300
(J-44195)
Flange wrench

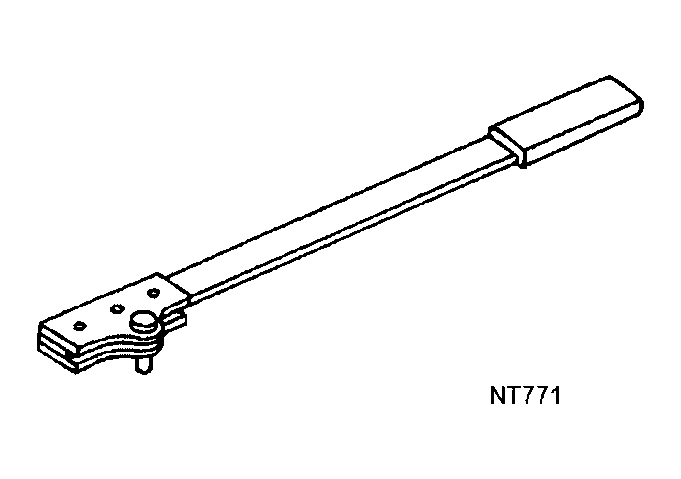

G04175031
 Removing and installing drive pinion lock nut
KV381054S0
(J-34286)
Puller
G04076295
 Removing front oil seal
ST30720000
(J-25405)
Drift
G04074776
  • Installing front oil seal
  • Installing side oil seal
a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia.
ST27863000
( - )
Drift
G04149614
  • Installing front oil seal
  • Installing side oil seal
a: 74.5 mm (2.933 in) dia. b: 62.5 mm (2.461 in) dia.
ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000
(J-25765)
Torque wrench
2: HT62940000
( - )
Socket adapter (1/2")
3: HT62900000
( - )
Socket adapter (3/8")
G04198054
 Measuring pinion bearing preload and total preload
KV10111100
(J-37228)
Seal cutter
G04076167
 Removing rear cover
ST3306S001
( - )
Differential side bearing puller set
1: ST33051001
(J-22888-20)
Puller
2: ST33061000
(J-8107-2)
Base
G04175037

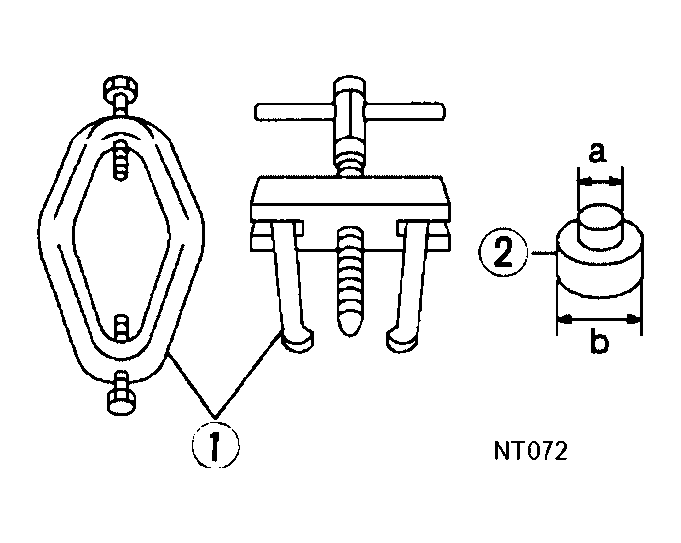

 Removing and installing side bearing inner race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.
ST30031000
(J-22912-01)
Replacer
G04076169
 Removing pinion rear bearing inner race
KV38100600
(J-25267)
Drift

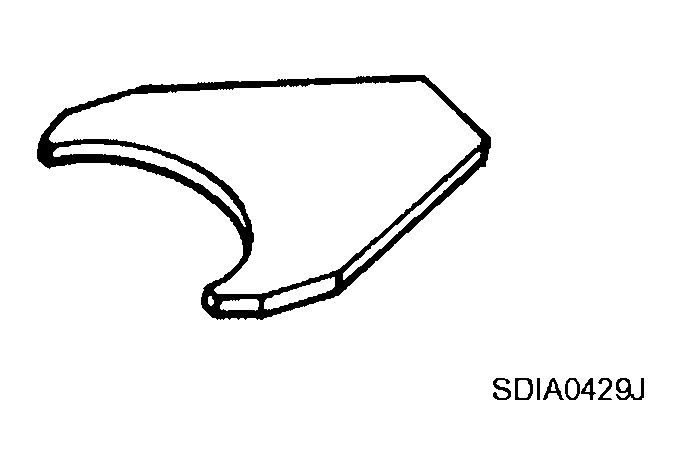

G04175039
 Installing side bearing adjusting shim
ST30613000
(J-25742-3)
Drift
G04175040
 Installing pinion rear bearing outer race
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.
ST30611000
(J-25742-1)
Drift bar

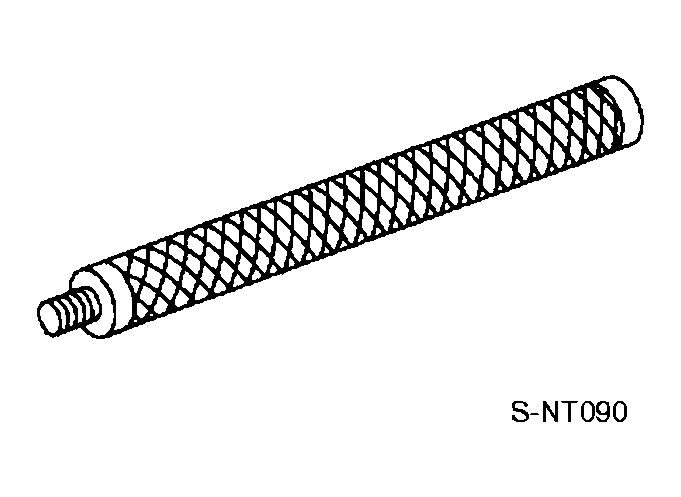

G04175041
 Installing pinion rear bearing outer race (Use with ST30613000)
KV38100200
(J-26233)
Drift

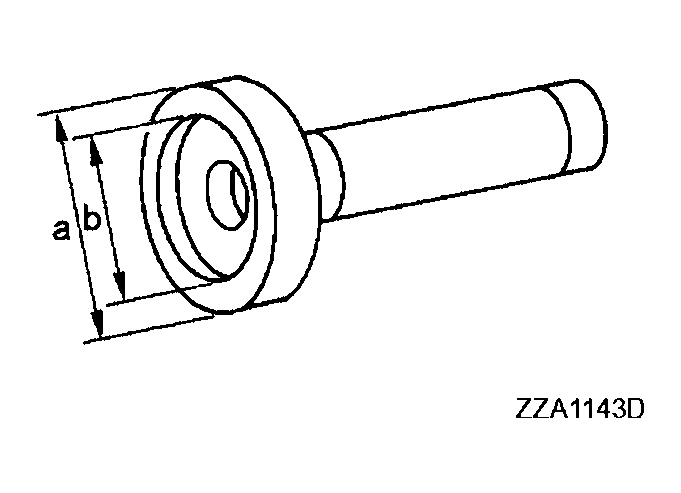

G04175042
 Installing pinion front bearing outer race
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.
ST30901000
(J-26010-01)
Drift
G04076310
 Installing pinion rear bearing inner race
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.
ST33200000
(J-26082)
Drift

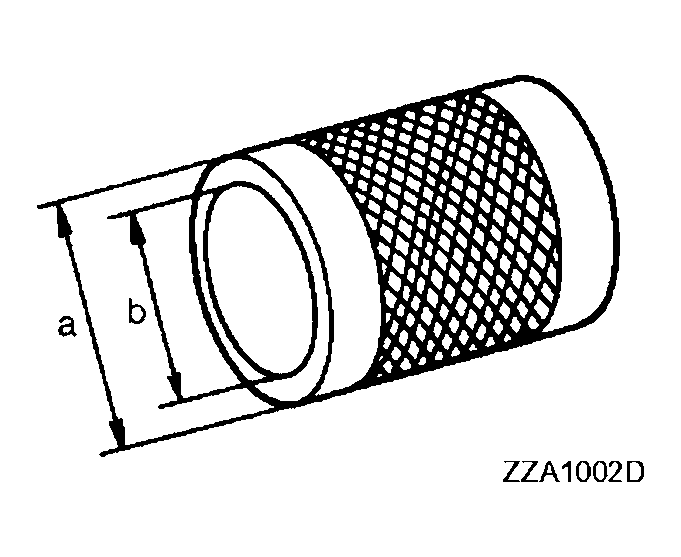

G04175044
 Installing pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.
ST33230000
(J-35867)
Drift
G04076173
 Installing side bearing inner race
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.
( - )
(J-34309)

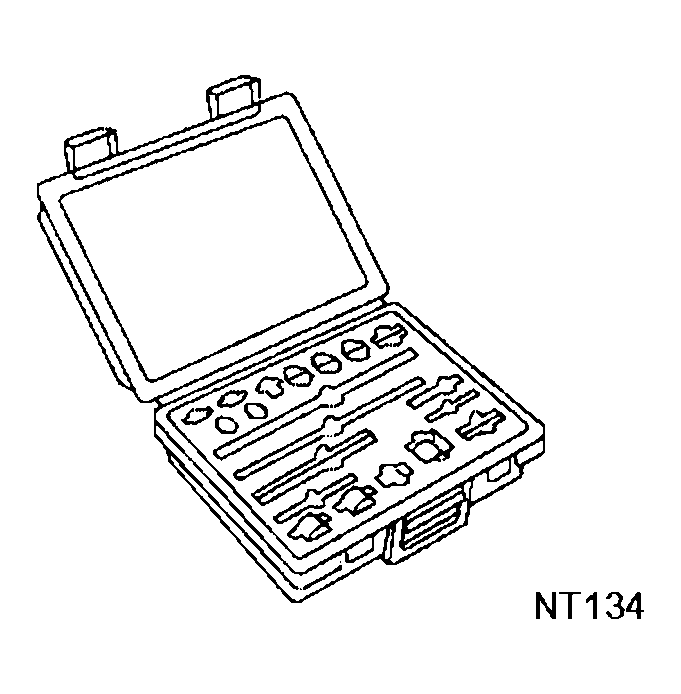

Differential shim selector tool
G04175046
 Adjusting bearing preload and pinion gear height
( - )
(J-25269-18)
Side bearing disc (2 Req'd)

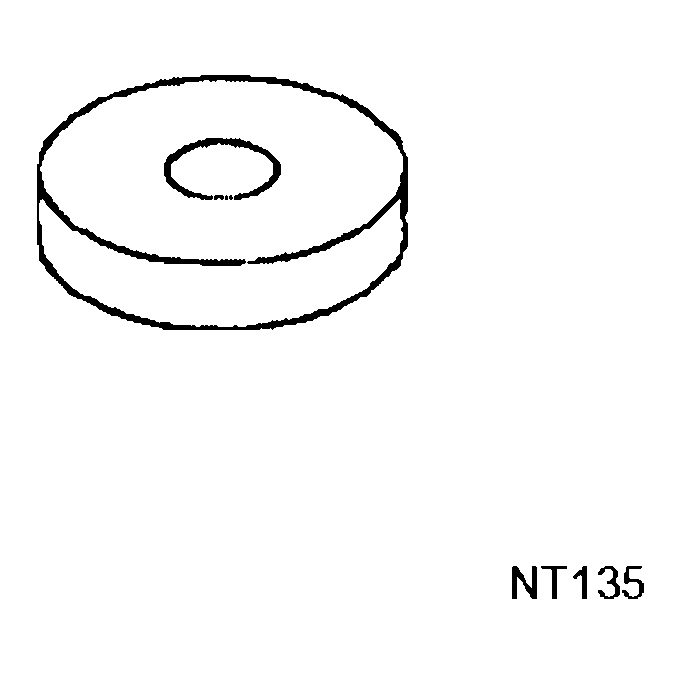

G04175047
 Selecting pinion height adjusting washer
KV10112100
(BT-8653-A)
Angle wrench

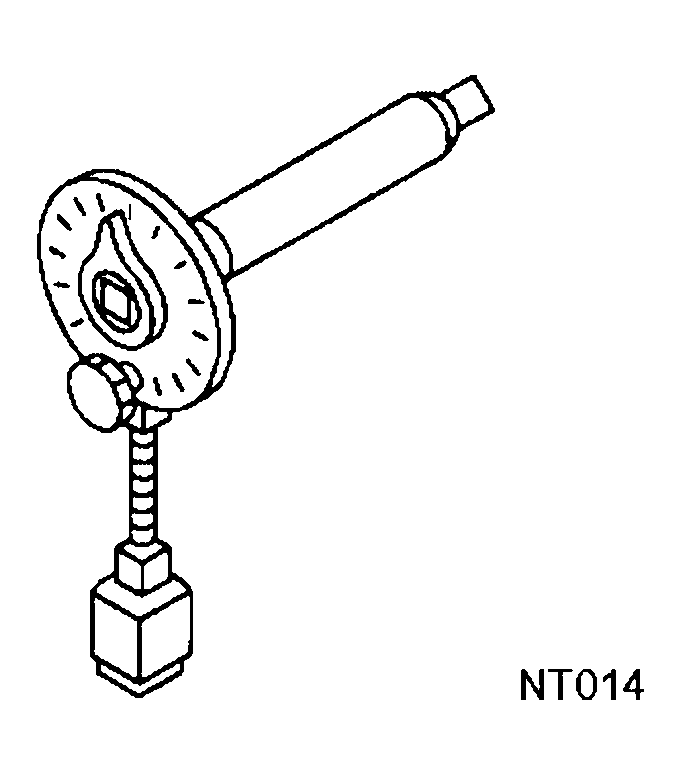

G04175048
 Tightening bolts for drive gear
