CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your CAN system type from the following table.

CAN COMMUNICATION UNIT REFERENCE

Body type	Wagon
Axle	2WD				4WD(Part time)		4WD(All-mode)
Engine	VQ40DE
Transmission	A/T
Brake control	VDC
Automatic air conditioner		x	x	x		x		x	x	x
Automatic drive positioner			x	x					x	x
Navigation system				x						x
CAN system type & trouble diagnosis	1	2	3	4	5	6	7	8	9	10
x: Applicable

NOTE: Confirming the presence of the following items helps to identify CAN system type.

With All-mode 4WD

Fig 1: Identifying Auto Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
With automatic air conditioner

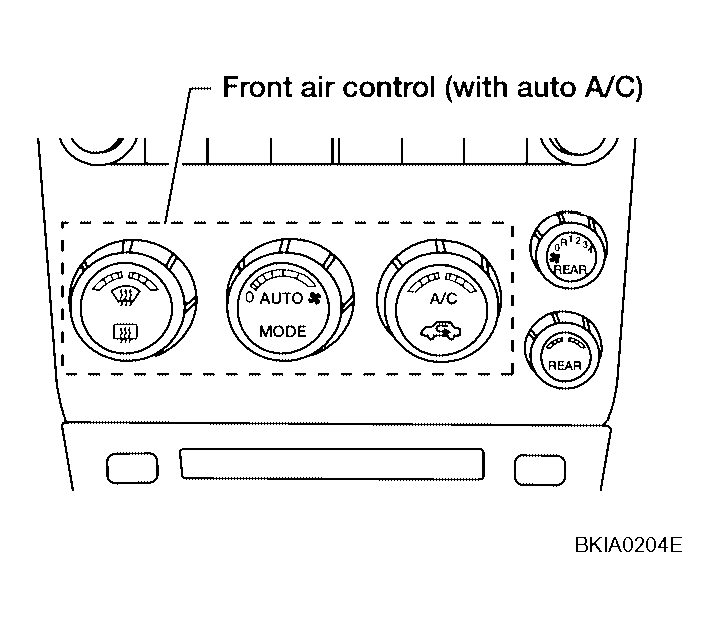

Fig 2: Identifying Automatic Air Conditioner Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
With automatic drive positioner

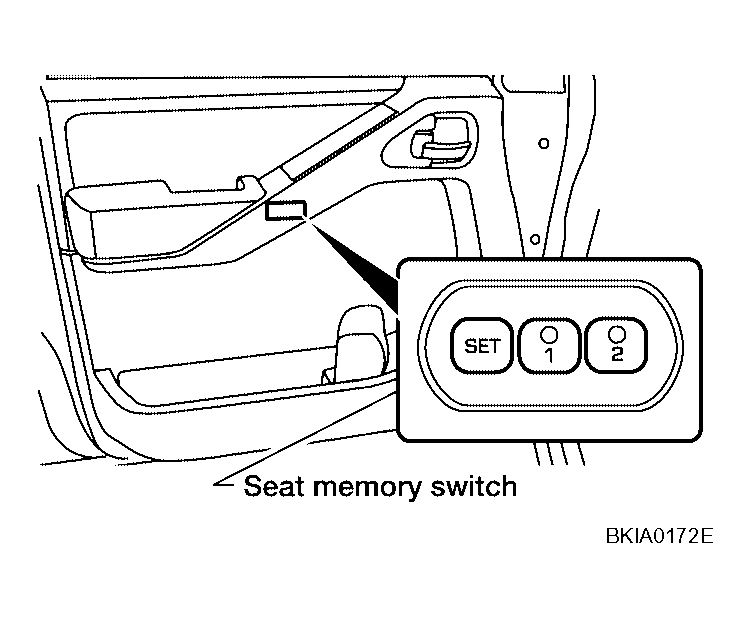

Fig 3: Identifying Automatic Drive Positioner
Courtesy of NISSAN MOTOR CO., U.S.A.
With navigation system

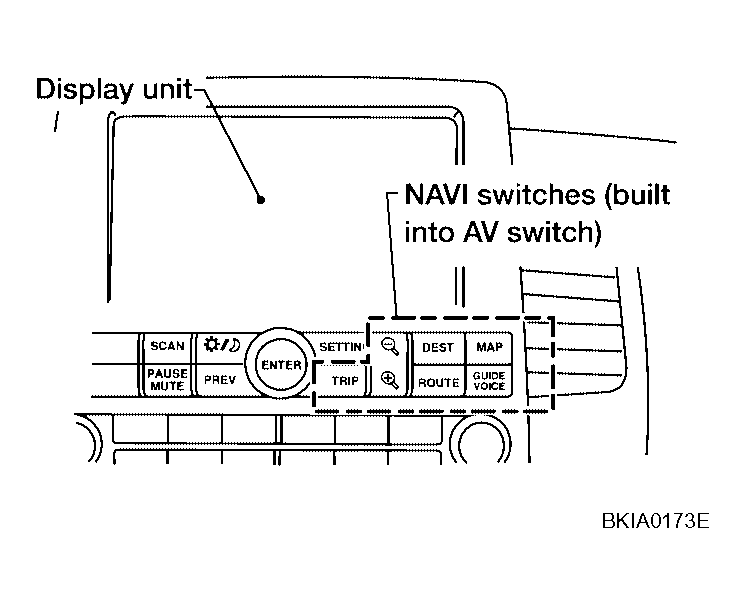

Fig 4: Identifying Navigation System
Courtesy of NISSAN MOTOR CO., U.S.A.
