Combination Switch Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. SYSTEM CHECK

    Referring to COMBINATION SWITCH INSPECTION CHART  , check to which system the malfunctioning switch belongs.

    COMBINATION SWITCH INSPECTION CHART

    System 1 System 2 System 3 System 4 System 5
    - FR WASHER FR WIPER LO TURN LH TURN RH
    FR WIPER HI - FR WIPER INT PASSING HEAD LAMP1
    INT VOLUME 1 RR WASHER - HEAD LAMP2 HI BEAM
    RR WIPER INT INT VOLUME 3 AUTO LIGHT - TAIL LAMP
    INT VOLUME 2 RR WIPER ON - FR FOG -

    GO TO 2.

  2. SYSTEM CHECK

    With CONSULT-II

    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
    1. Connect CONSULT-II, and select "COMB SW" on "SELECT TEST ITEM" screen.
    2. Select "DATA MONITOR".
    3. Select "START", and confirm that other switches in malfunctioning system operate normally.

      Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, turn ON-OFF normally.

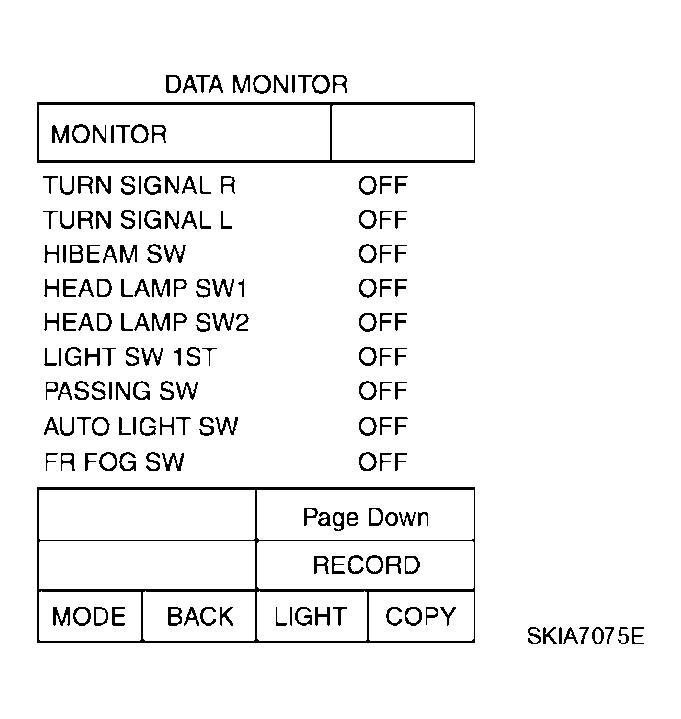

    Fig 1: CONSULT-II Display - Data Monitor
    G04176966Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Operate combination switch, and confirm that other switches in malfunctioning system operate normally.

    Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, operate normally.

    Check results

    Other switches in malfunctioning system operate normally. Replace lighting switch or wiper switch.

    Other switches in malfunctioning system do not operate normally. GO TO 3.

  3. HARNESS INSPECTION
    1. Turn ignition switch OFF.
    2. Disconnect BCM and combination switch connectors.
    3. Check for continuity between BCM harness connector of the suspect system and the corresponding combination switch connector terminals.
      BCM HARNESS CONNECTOR AND CORRESPONDING COMBINATION SWITCH

      Suspect system BCM Combination switch Continuity
      Connector Terminal Connector Terminal
      1 M18 Input 1 6 M28 10 Yes
      Output 1 36 13
      2 Input 2 5 15
      Output 2 35 12
      3 Input 3 4 5
      Output 3 34 16
      4 Input 4 3 6
      Output 4 33 11
      5 Input 5 2 7
      Output 5 32 14

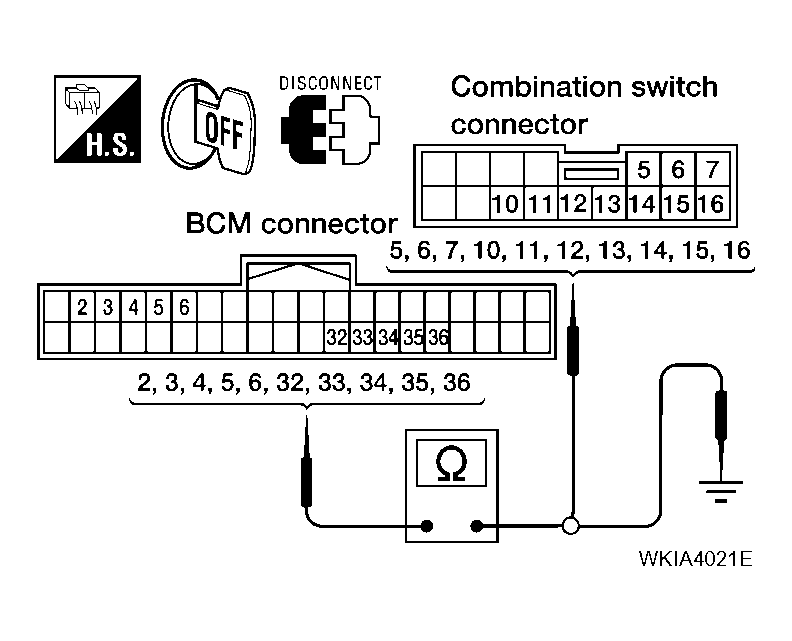

      Fig 2: Checking Continuity Between Connector Of Suspect System And Combination Switch Connector Terminals
      G04176967Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system and ground.
      BCM HARNESS CONNECTOR AND GROUND

      Suspect system BCM (-) Continuity
      Connector Terminal
      1 M18 Input 1 6 Ground No
      Output 1 36
      2 Input 2 5
      Output 2 35
      3 Input 3 4
      Output 3 34
      4 Input 4 3
      Output 4 33
      5 Input 5 2
      Output 5 32

    OK or NG

    OK: GO TO 4.

    NG: Check harness between BCM and combination switch for open or short circuit.

  4. BCM OUTPUT TERMINAL INSPECTION
    1. Connect BCM and combination switch connectors.
    2. Turn lighting switch and wiper switch to OFF.
    3. Set wiper dial to position 4.
    4. Turn ignition switch ON, and check combination switch input (BCM output) terminal voltage waveform of suspect malfunctioning system.
    CONNECTOR TERMINAL SPECIFICATION

    Suspect system Combination switch
    (+)
    Connector Terminal
    1 M28 Input 1 13
    2 Input 2 12
    3 Input 3 16
    4 Input 4 11
    5 Input 5 14

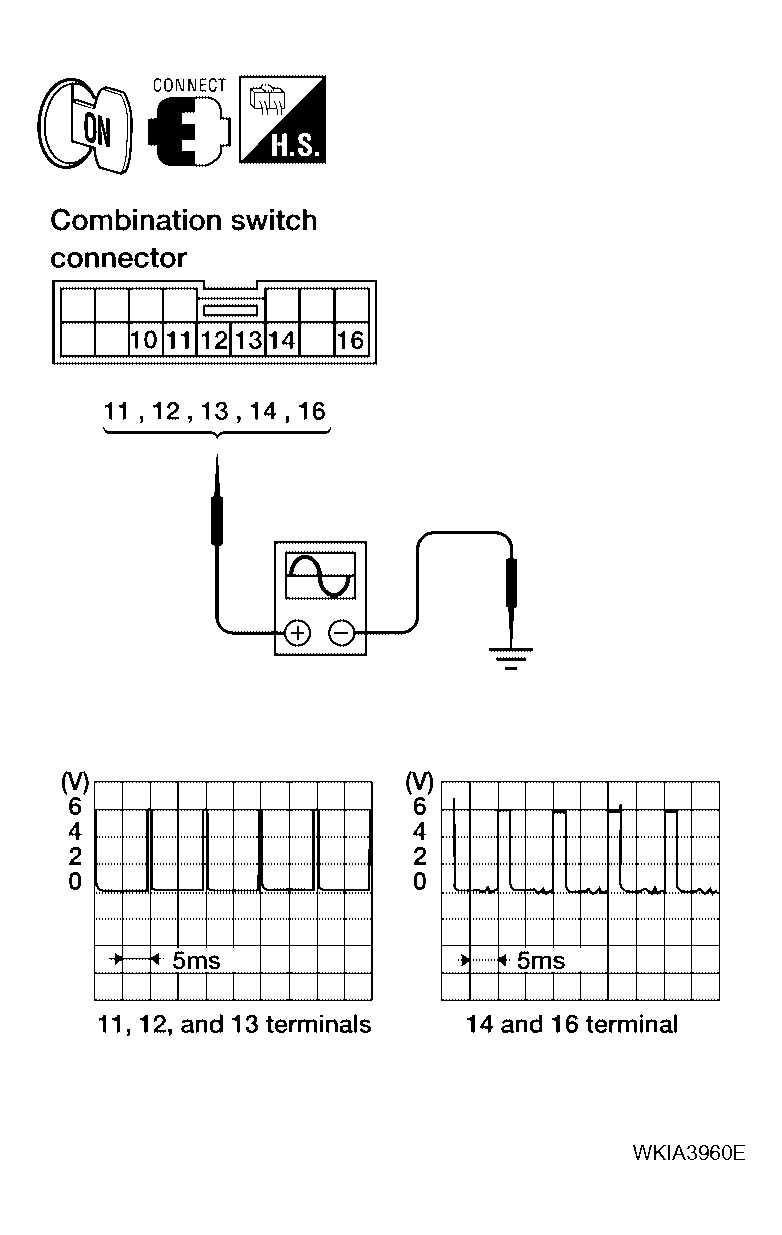

    Fig 3: Checking Combination Switch Input (BCM Output) Terminal Voltage Waveform
    G04176968Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Open circuit in combination switch, GO TO 5.

    NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION ".

  5. COMBINATION SWITCH INSPECTION

    Referring to table below, perform combination switch inspection.

    COMBINATION SWITCH INSPECTION CHART

    Procedure
    1 2 3 4 5 6 7
    Replace lighting switch. Confirm check results. OK INSPECTION END Confirm check results. OK INSPECTION END Confirm check results. OK INSPECTION END
    NG Replace wiper switch. NG Replace switch base. NG Confirm symptom again.

    Inspection End.
