How To Use Check Sheet Table: Notes
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

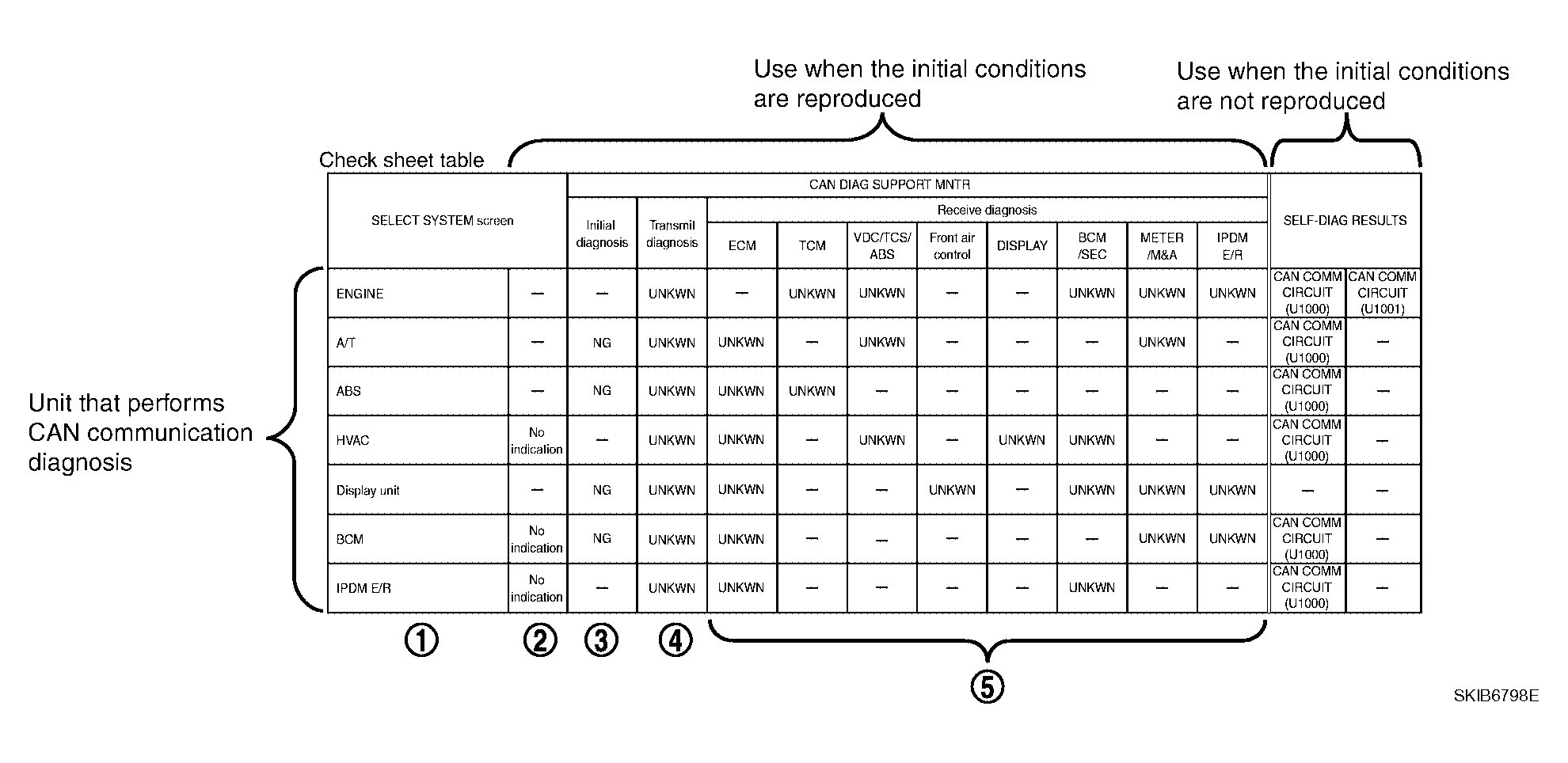

- Unit names displayed on CONSULT-II
- "No indication": Put a check mark to it if the unit name described in step 1 is not displayed on "SELECT SYSTEM" screen of CONSULT-II. (Unit communicating with CONSULT-II via CAN communication line)
"-": Column not used (Unit communicating with CONSULT-II excluding CAN communication line)
- "NG": Display "NG" when malfunction is detected in the initial diagnosis of the diagnosed unit. Replace the unit if "NG" is displayed.
"-": Column not used (Initial diagnosis is not performed.)
- "UNKWN": Display "UNKWN" when the diagnosed unit does not transmit the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II.
"-": Column not used (It is not necessary for CAN communication trouble diagnosis.)
- "UNKWN": Display "UNKWN" when the diagnosed unit does not receive the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II.
"-": Column not used (It is not necessary for CAN communication trouble diagnosis.)
NOTE:
CAN communication diagnosis checks if CAN communication works normally. (Contents of data are not diagnosed.)
- When the initial conditions are reproduced, refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE REPRODUCED ".
- When the initial conditions are not reproduced, refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE NOT REPRODUCED ".
