TCM Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of TCM for damage, bend and loose connection (control module side and harness side).
OK or NG

OK: GO TO 2.

NG: Repair terminal or connector.

CHECK HARNESS FOR OPEN CIRCUIT

With 4A/T

Disconnect TCM connector.
Check resistance between TCM harness connector terminals.

RESISTANCE REFERENCE CHART

TCM connector	Terminal		Resistance (Approx.)
E142	5	6	54 - 66 ohm

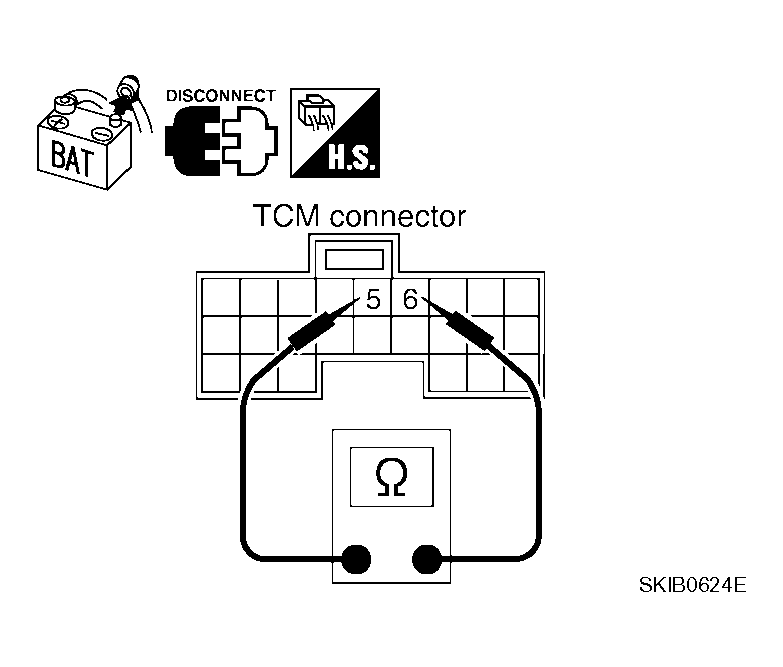

Fig 1: Identifying Resistance Between TCM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

With 5A/T

Disconnect TCM connector.

Check resistance between TCM harness connector terminals.

RESISTANCE REFERENCE CHART

TCM connector	Terminal		Resistance (Approx.)
E143	3	4	54 - 66 ohm

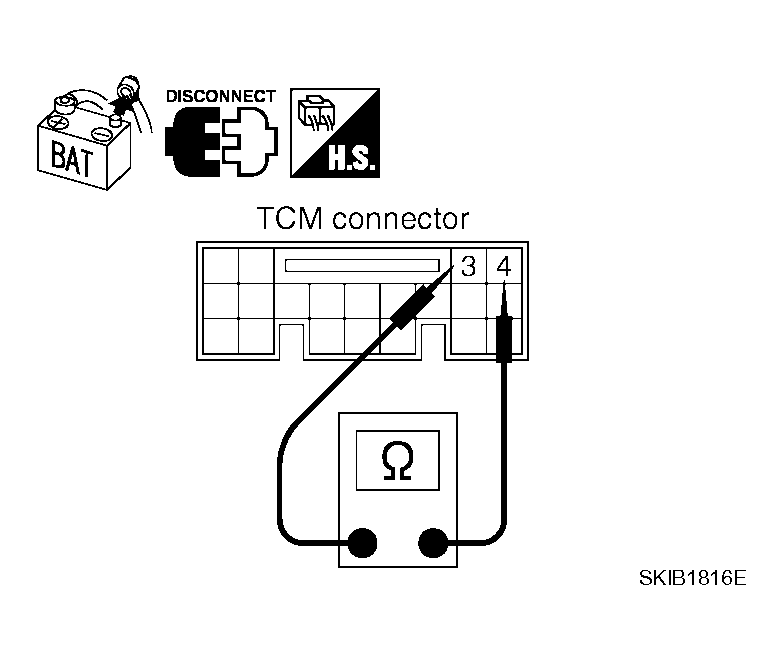

Fig 2: Identifying Resistance Between TCM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace TCM.

NG: Repair harness between TCM and ABS actuator and electric unit (control unit).
