ALL-MODE 4WD Transfer Basic Control

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

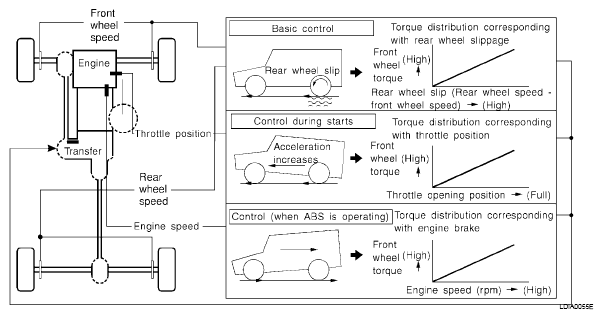

Fig 1: Identifying All-Mode 4WD Transfer Basic Control Diagram
G04901443
