Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

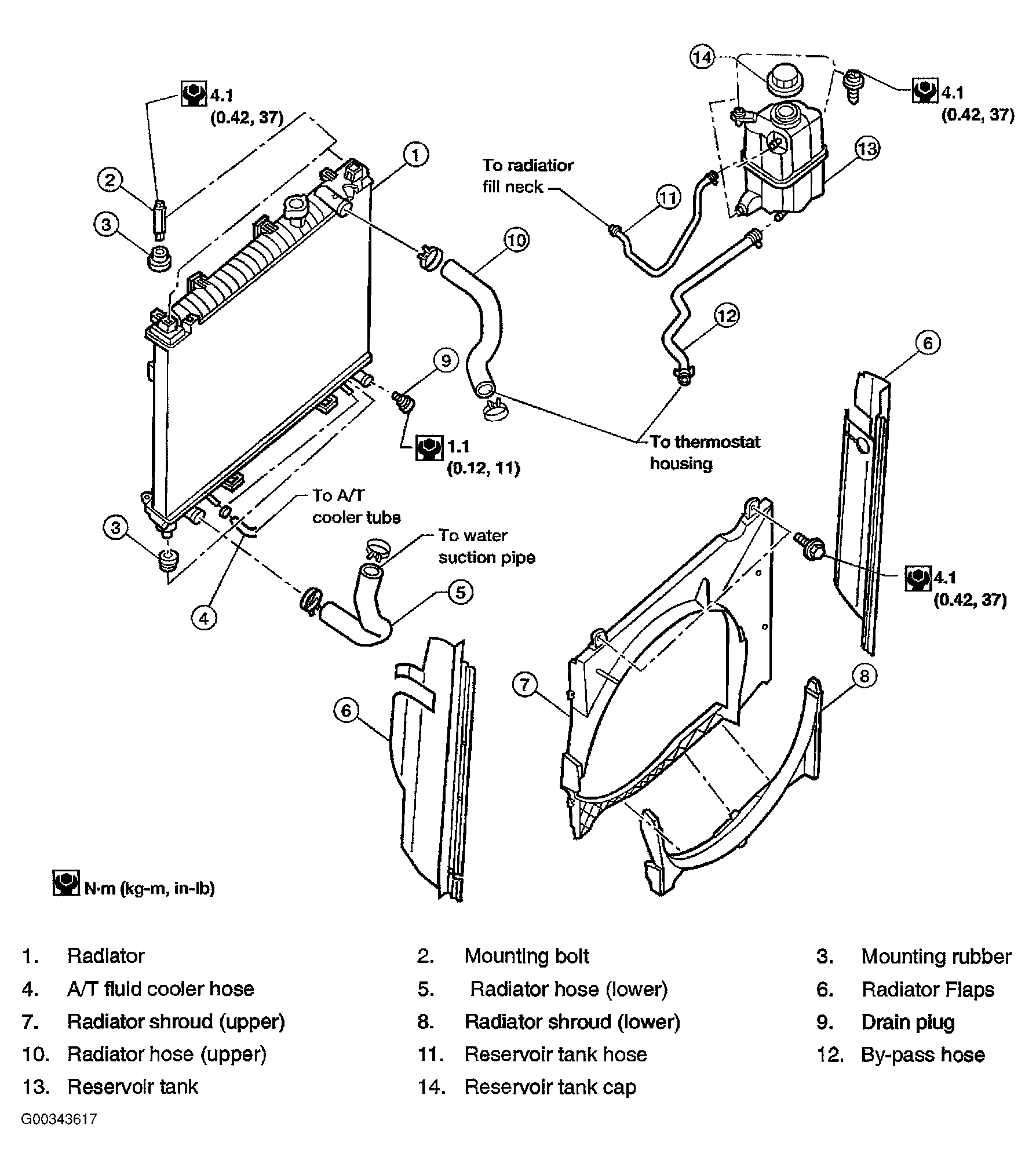

Fig 1: Exploded View Of Radiator And Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator.
