Monitored Item

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

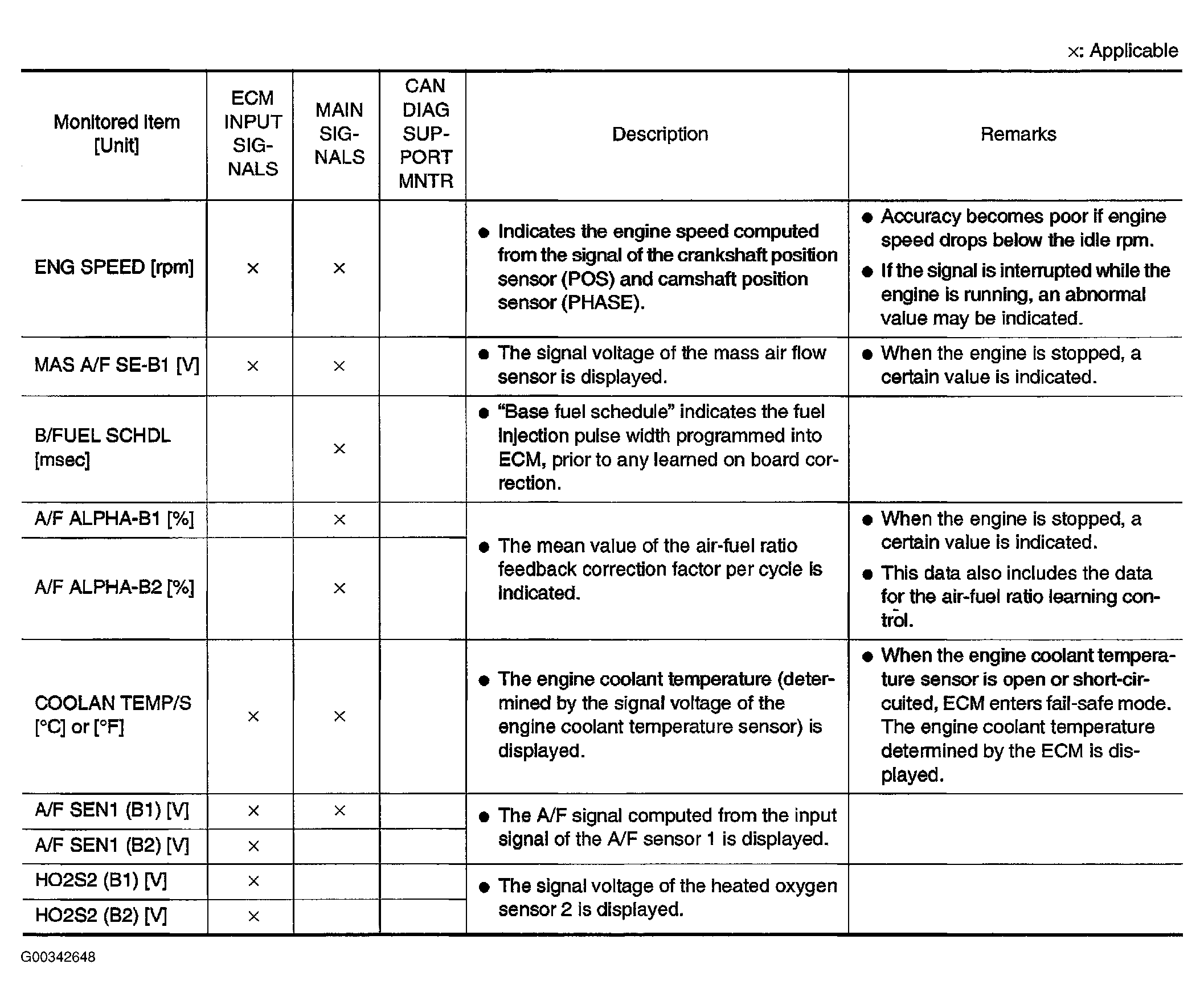

Fig 1: Data Monitor Mode Chart (1 Of 5)
G00342648Courtesy of NISSAN MOTOR CO., U.S.A.

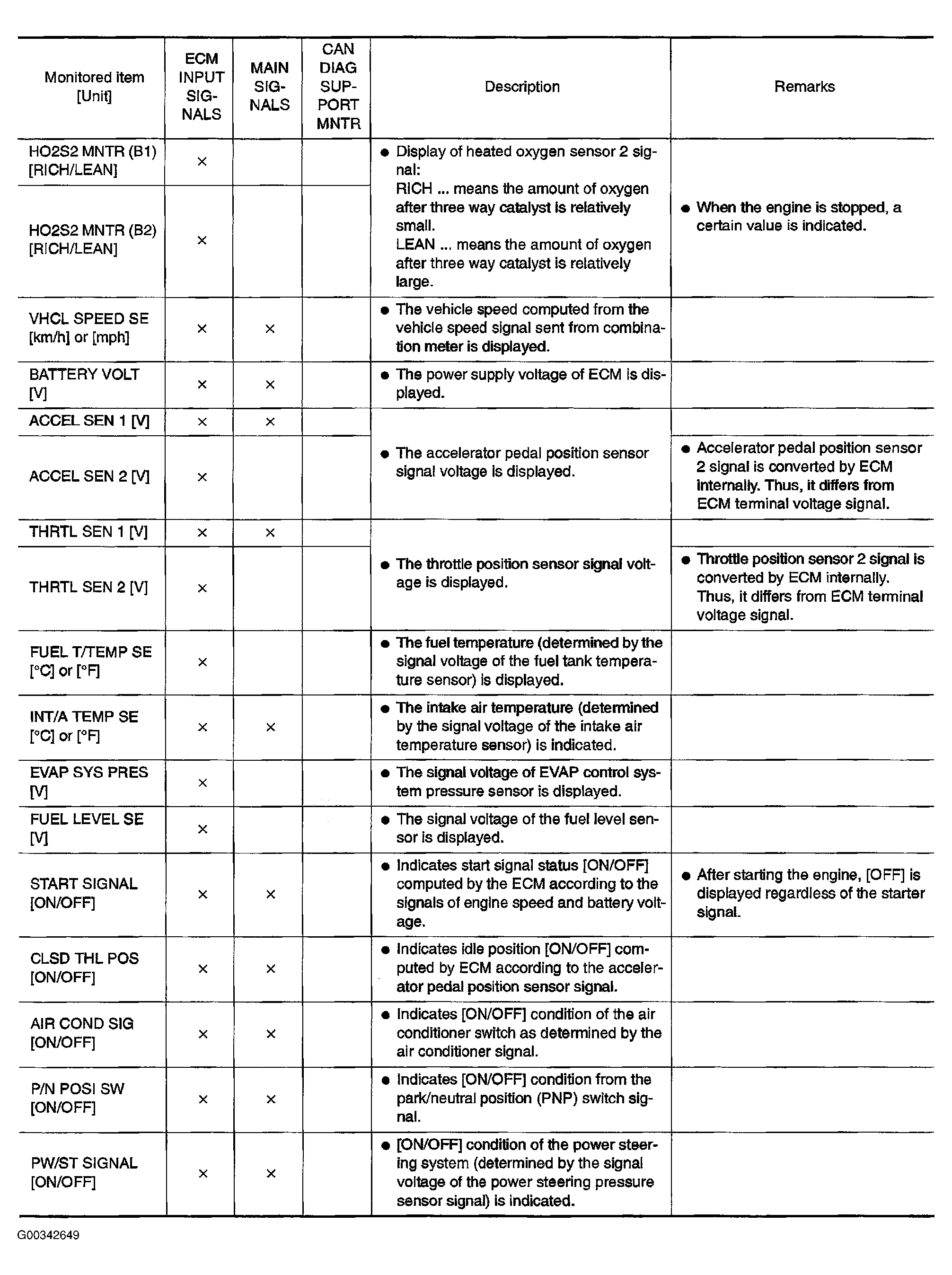

Fig 2: Data Monitor Mode Chart (2 Of 5)
G00342649Courtesy of NISSAN MOTOR CO., U.S.A.

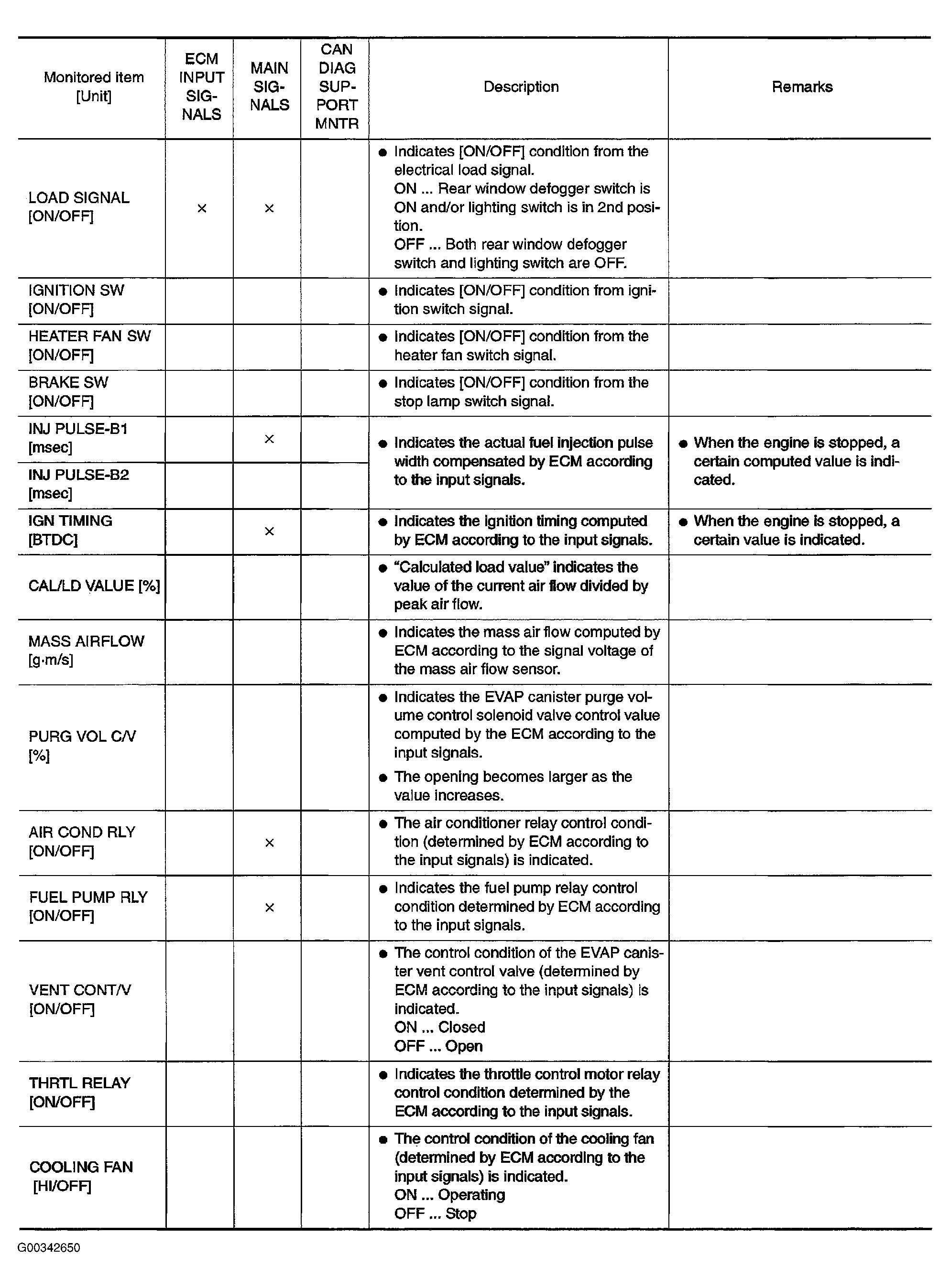

Fig 3: Data Monitor Mode Chart (3 Of 5)
G00342650Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Data Monitor Mode Chart (4 Of 5)
G00342651Courtesy of NISSAN MOTOR CO., U.S.A.

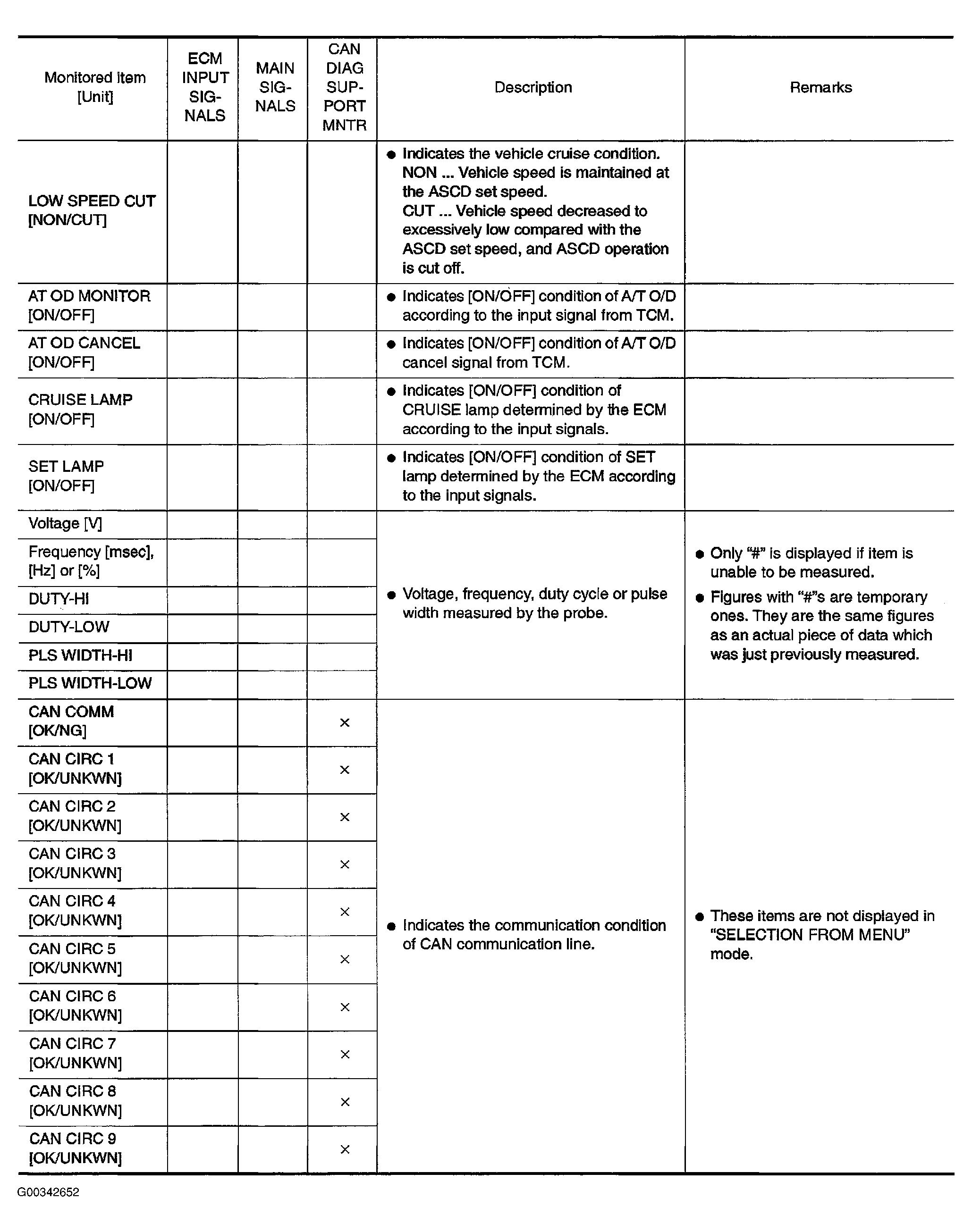

Fig 5: Data Monitor Mode Chart (5 Of 5)
G00342652Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
