Zone Variation Chart

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

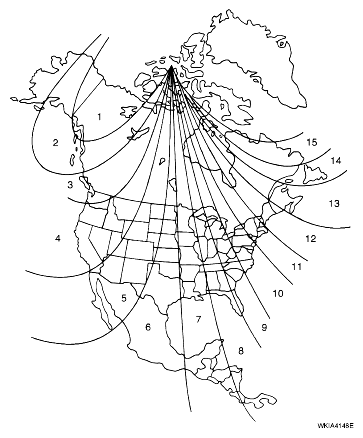

Fig 1: Identifying Zone Variation Map

Courtesy of NISSAN MOTOR CO., U.S.A.

Determine your location on the zone map.
Turn the ignition switch to the ON position.
Press and hold the mode (N) switch for about 5 seconds. The current zone number will appear in the display.
Press the mode (N) switch repeatedly until the desired number appears in the display.

Once the desired zone number is displayed, stop pressing the mode (N) switch and the display will show a compass direction after a few seconds.

NOTE: Use zone number 5 for Hawaii.
