ASCD Brake Switch

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ASCD brake switch harness connector.
Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

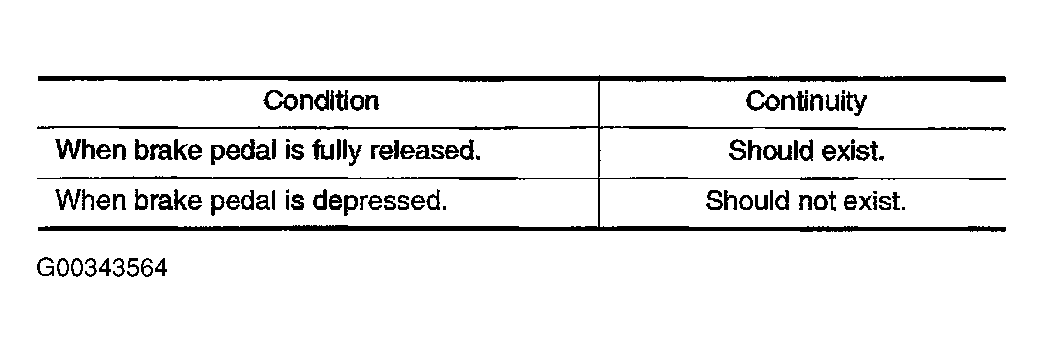

Fig 1: Check Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

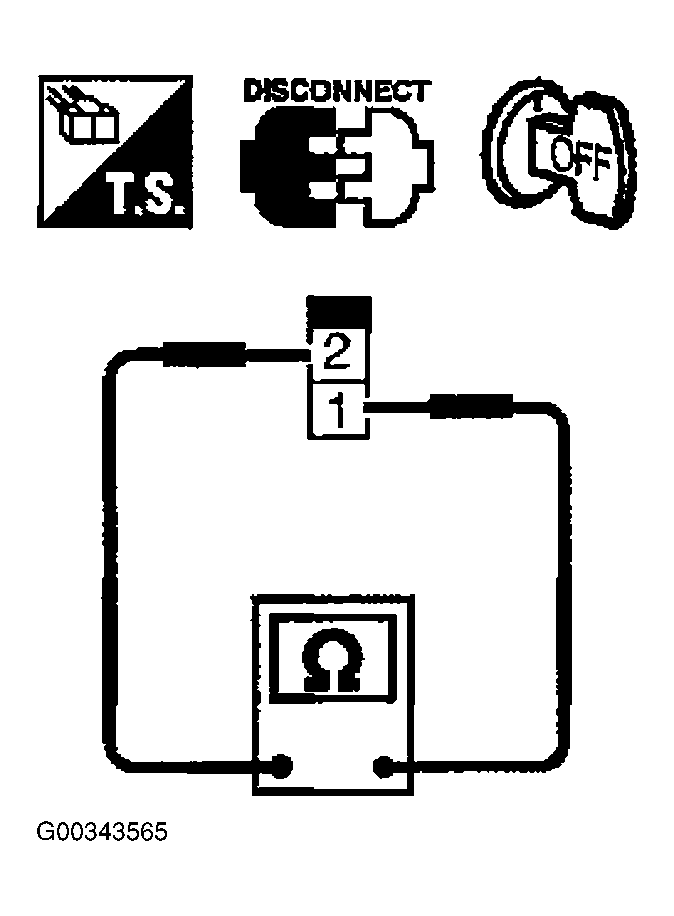

Fig 2: Check Harness Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD brake switch installation, refer to BRAKE PEDAL FREE PLAY and BRAKE PEDAL HEIGHT under ADJUSTMENTS and perform step 3 again.
