Rear View Camera Control Unit Harness Connector Terminal Layout

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

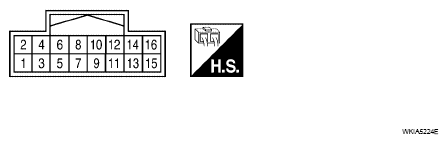

Fig 1: Identifying Rear View Camera Control Unit Harness Connector Terminals
G04903818Courtesy of NISSAN MOTOR CO., U.S.A.
