BCM (Body Control Module): Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

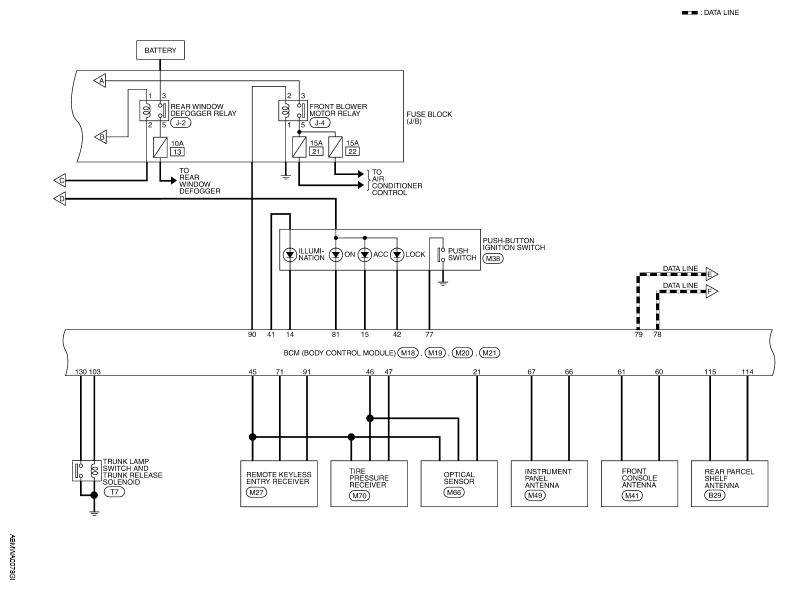

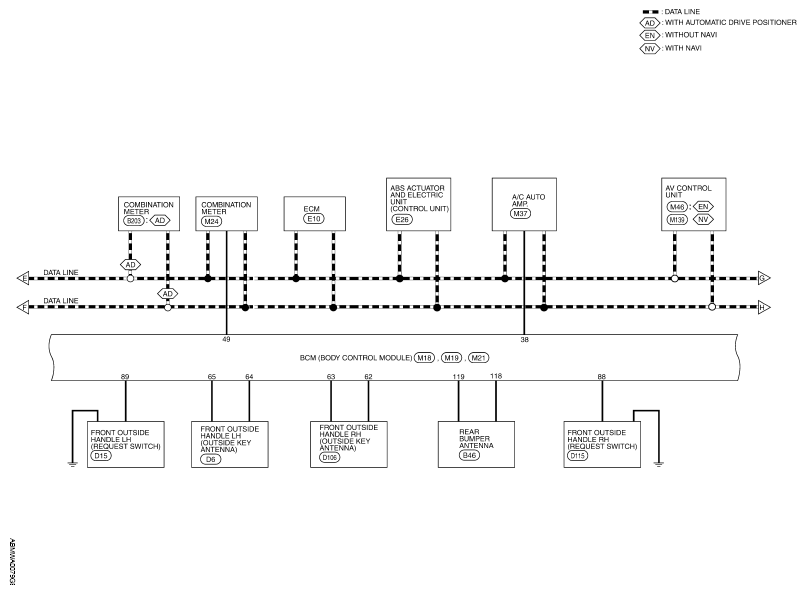

Fig 1: BCM - Wiring Diagram (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

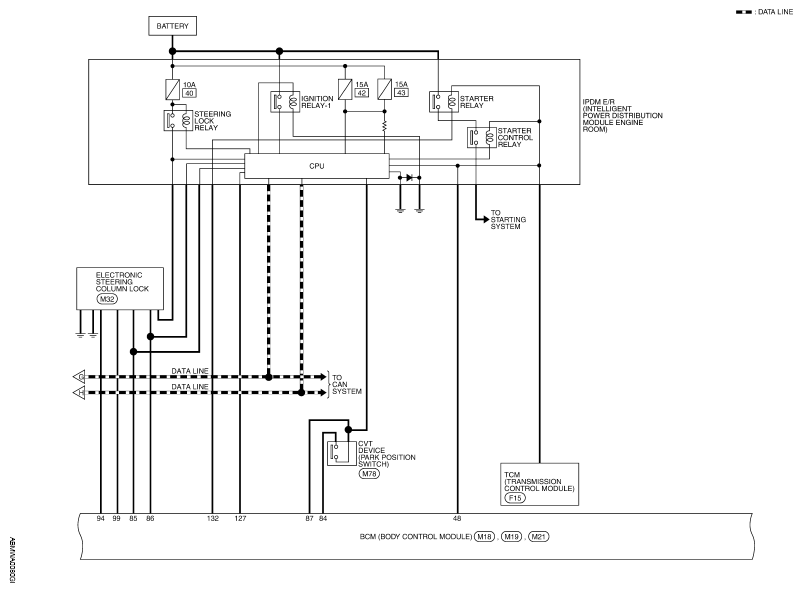

Fig 2: BCM - Wiring Diagram (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

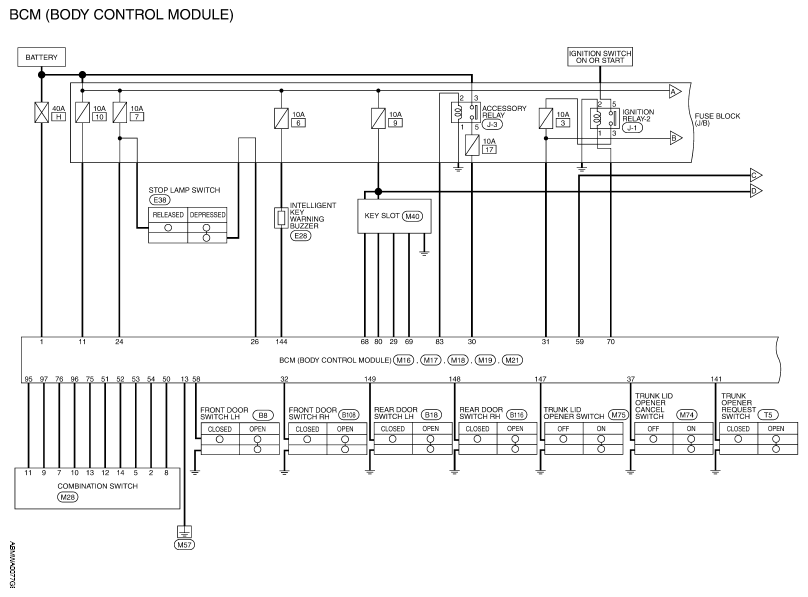

Fig 3: BCM - Wiring Diagram (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

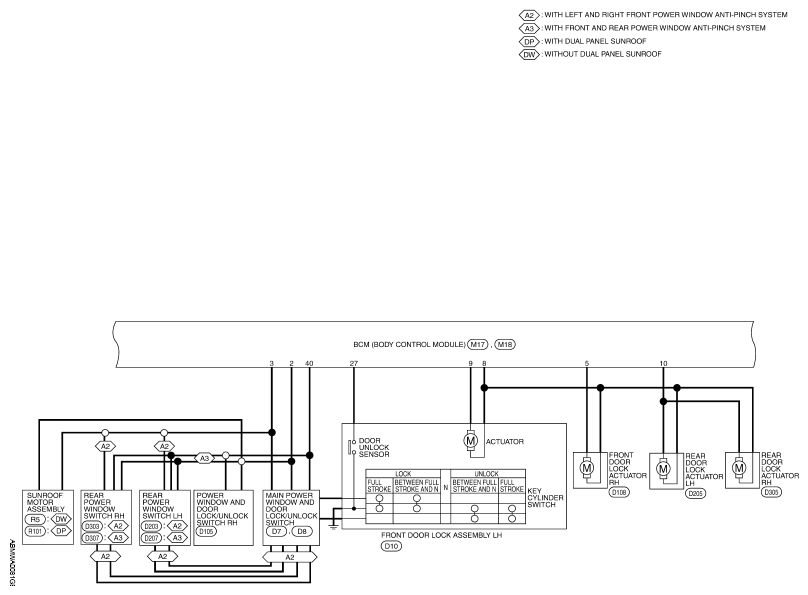

Fig 4: BCM - Wiring Diagram (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

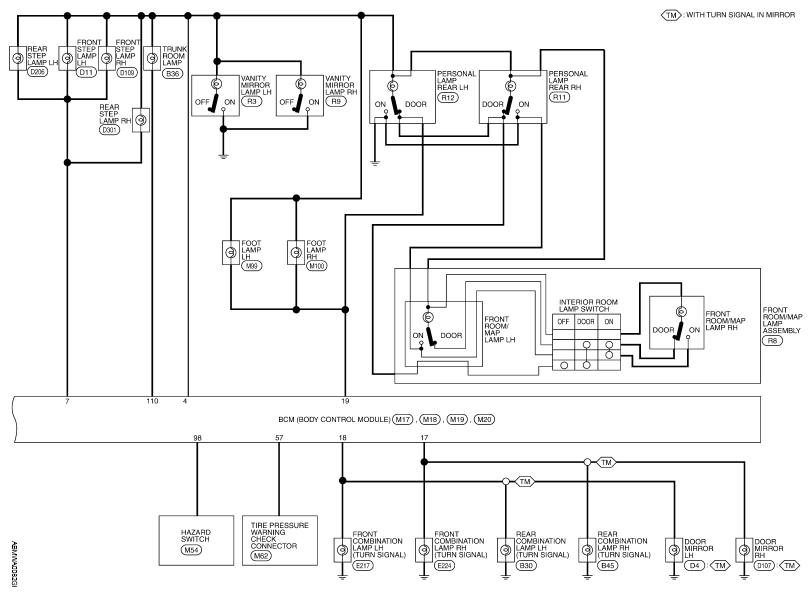

Fig 5: BCM - Wiring Diagram (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: BCM - Wiring Diagram (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

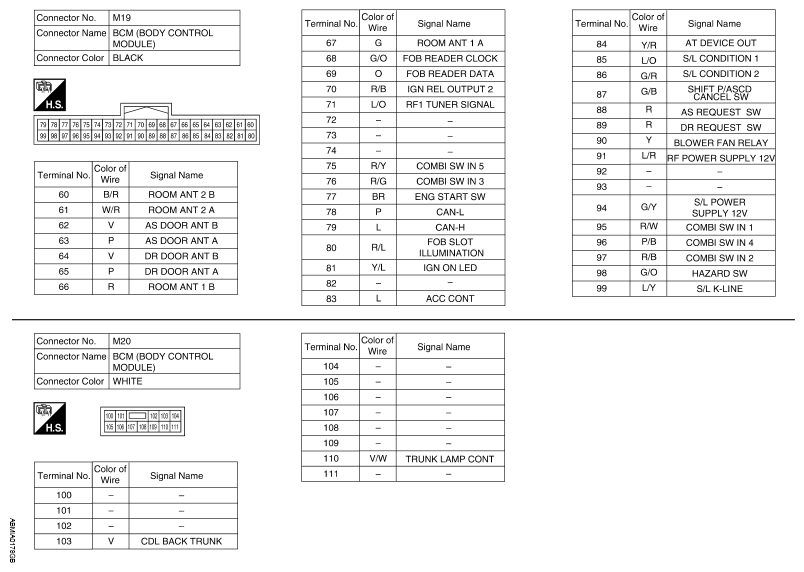

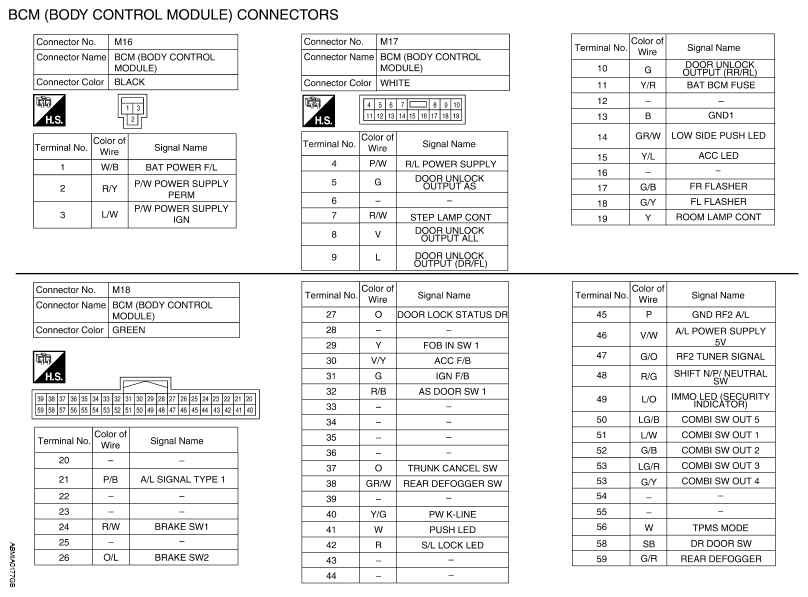

Fig 7: Body Control Module Connectors (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Body Control Module Connectors (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

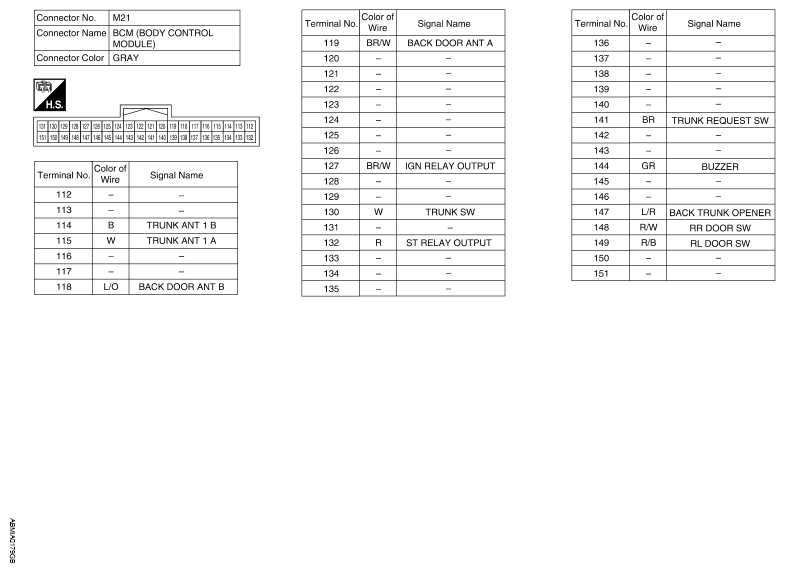

Fig 9: Body Control Module Connectors (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
