IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

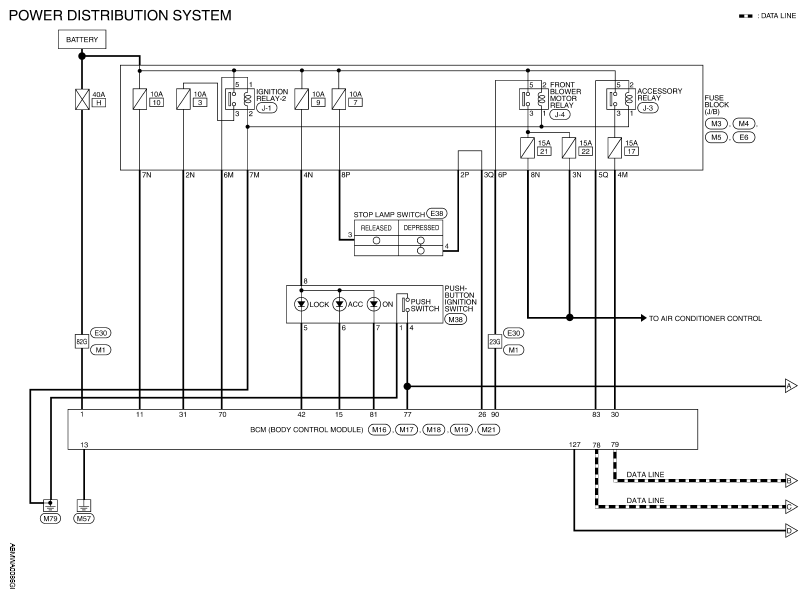

Fig 1: Power Distribution System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

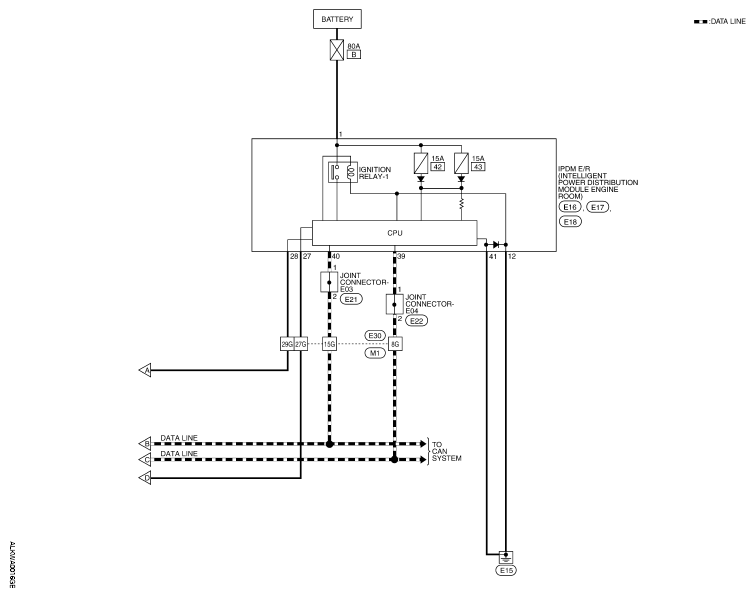

Fig 2: Power Distribution System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

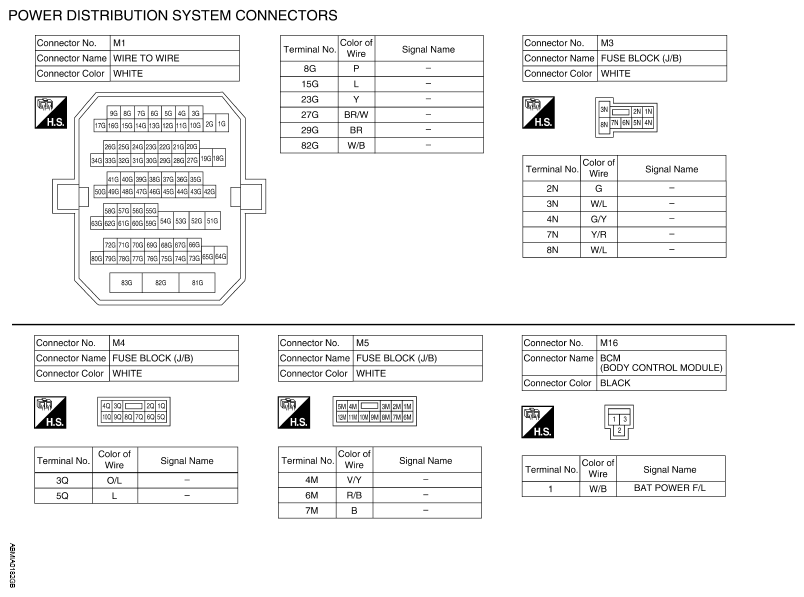

Fig 3: Identifying Power Distribution System Connectors (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

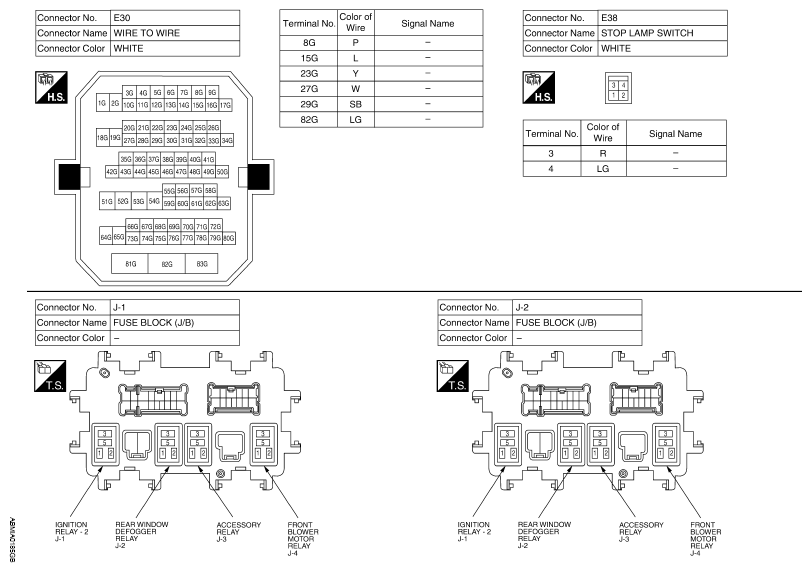

Fig 4: Identifying Power Distribution System Connectors (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

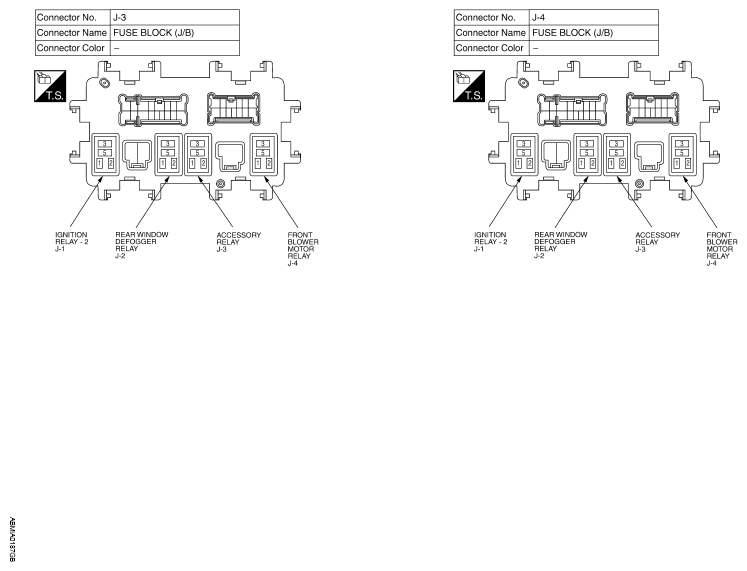

Fig 5: Identifying Power Distribution System Connectors (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

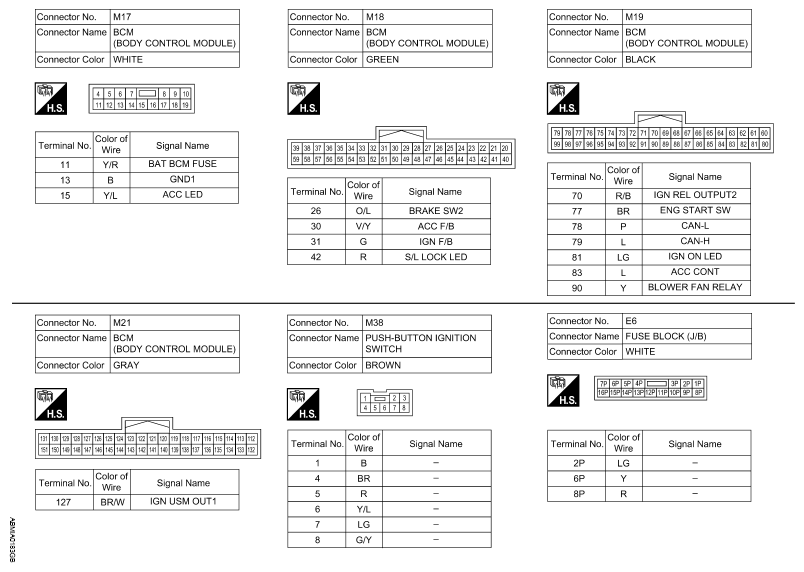

Fig 6: Identifying Power Distribution System Connectors (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

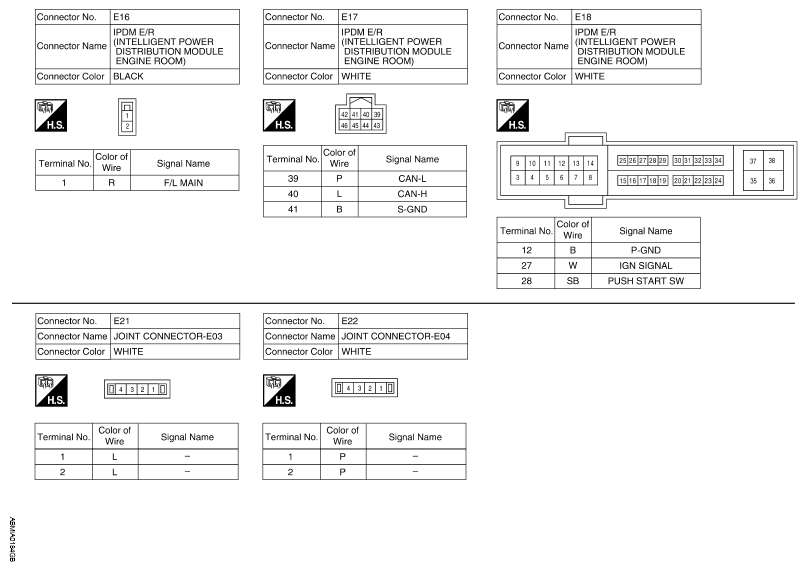

Fig 7: Identifying Power Distribution System Connectors (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
