Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install retaining pin evenly to L-H shift rod.
CAUTION: Do not reuse retaining pin.

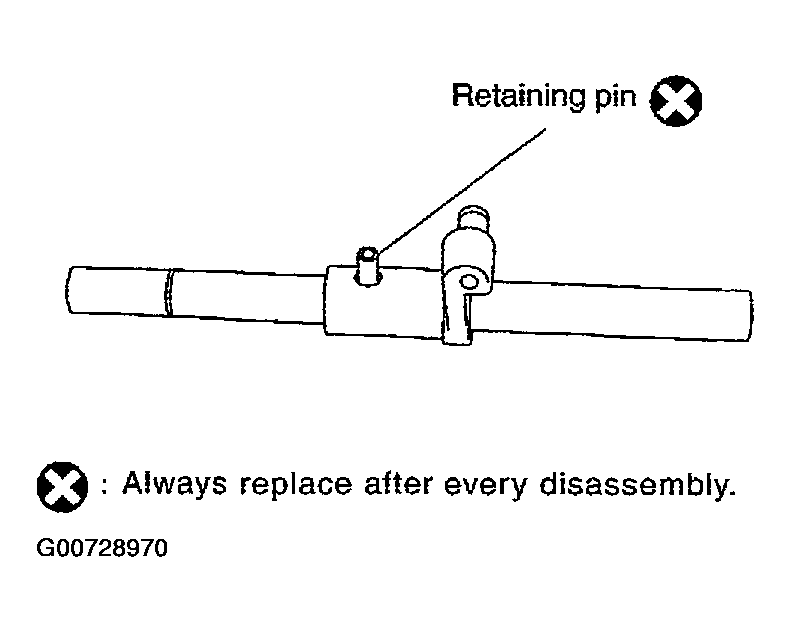

Fig 1: Installing NEW Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install dram cam to control shift rod, and then secure it with retaining pin.
CAUTION: Do not reuse retaining pin.
Install snap ring to control shift rod.

CAUTION: Do not reuse snap ring.

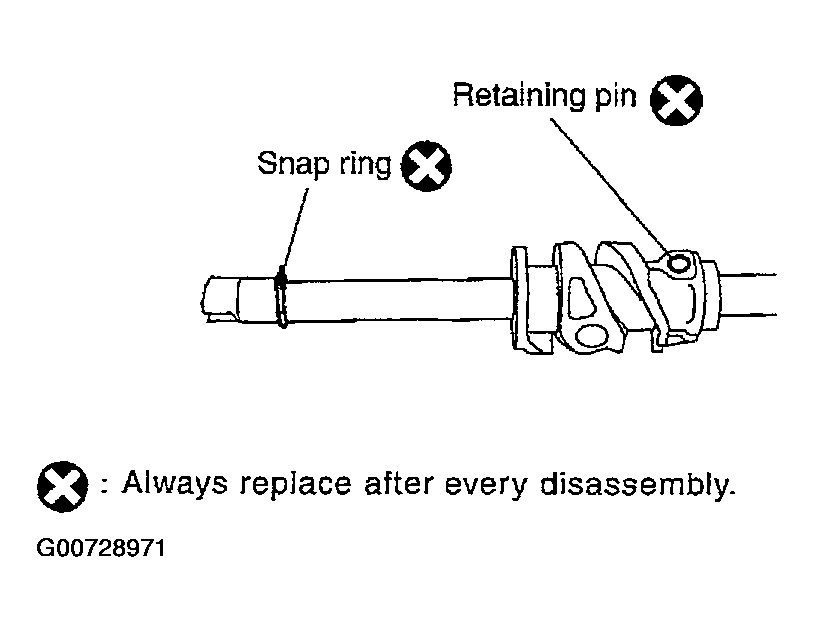

Fig 2: Installing NEW Retaining Pin & NEW Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.
