Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap ring and retaining pin using pin punch, and then dram cam from control shift rod.

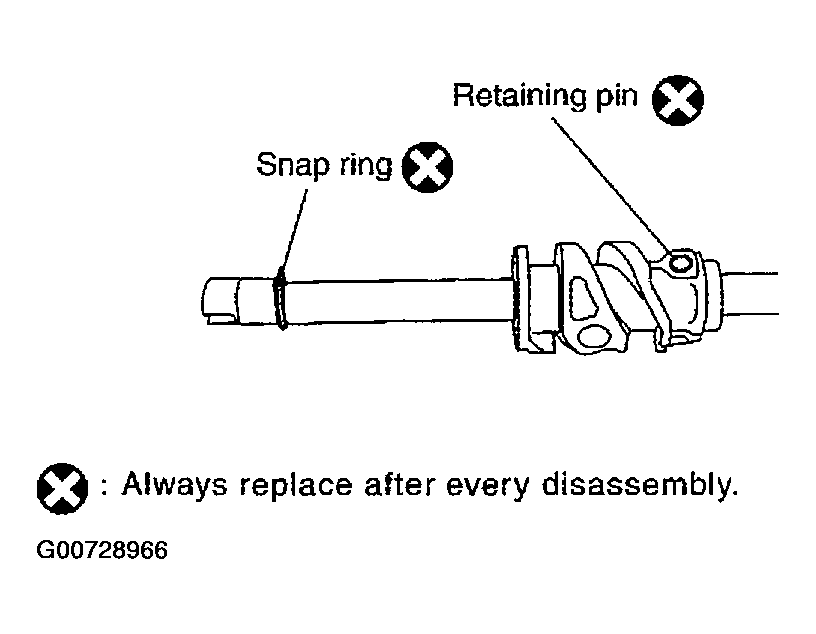

Fig 1: Removing Snap Ring & Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retaining pin from L-H shift rod assembly, using pin punch.

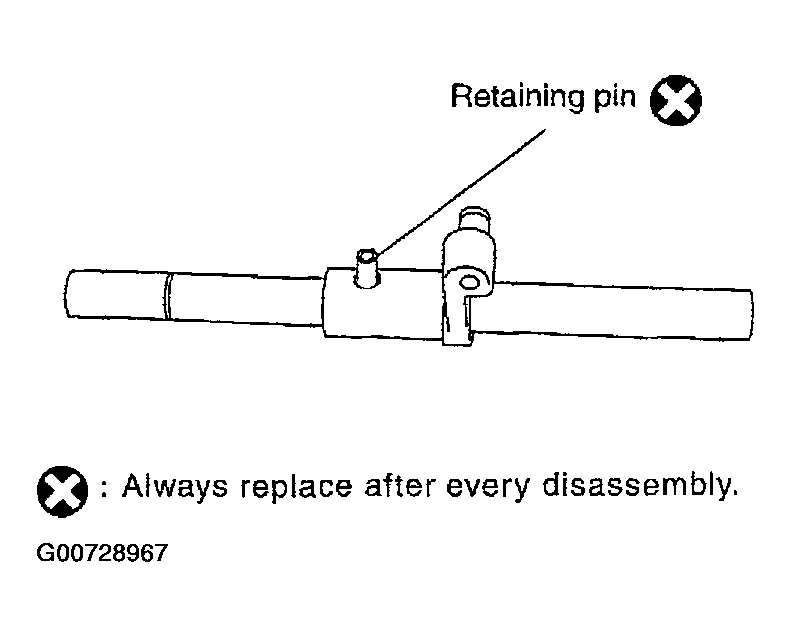

Fig 2: Removing Retaining Pin

Courtesy of NISSAN MOTOR CO., U.S.A.
