Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
  2. Remove the glove box assembly. Refer to INSTRUMENT PANEL REMOVAL AND INSTALLATION in GAUGES & INSTRUMENT PANEL - TITAN in ACCESSORIES & BODY, CAB. .
  3. Disconnect transfer control unit connectors.
  4. Remove the transfer control unit.

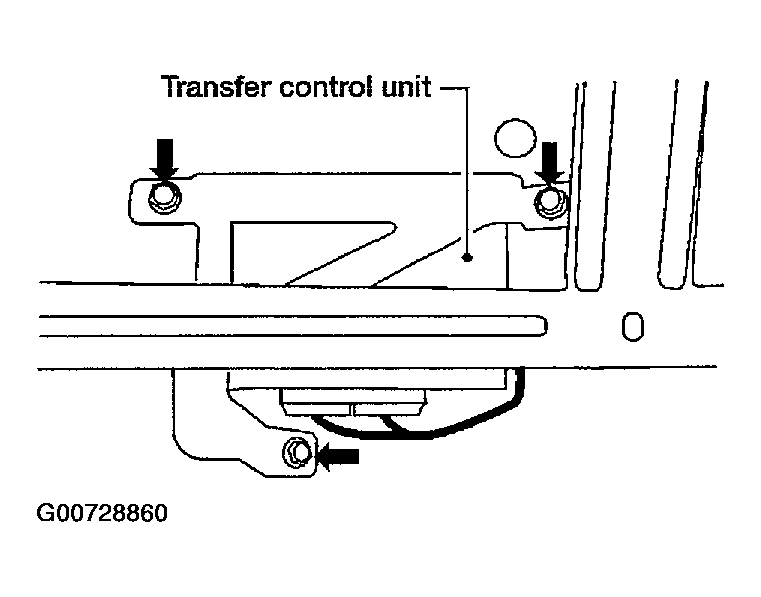

Fig 1: Removing The Transfer Control Unit
G00728860Courtesy of NISSAN MOTOR CO., U.S.A.
