Transfer Control Unit Terminals And Reference Value
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

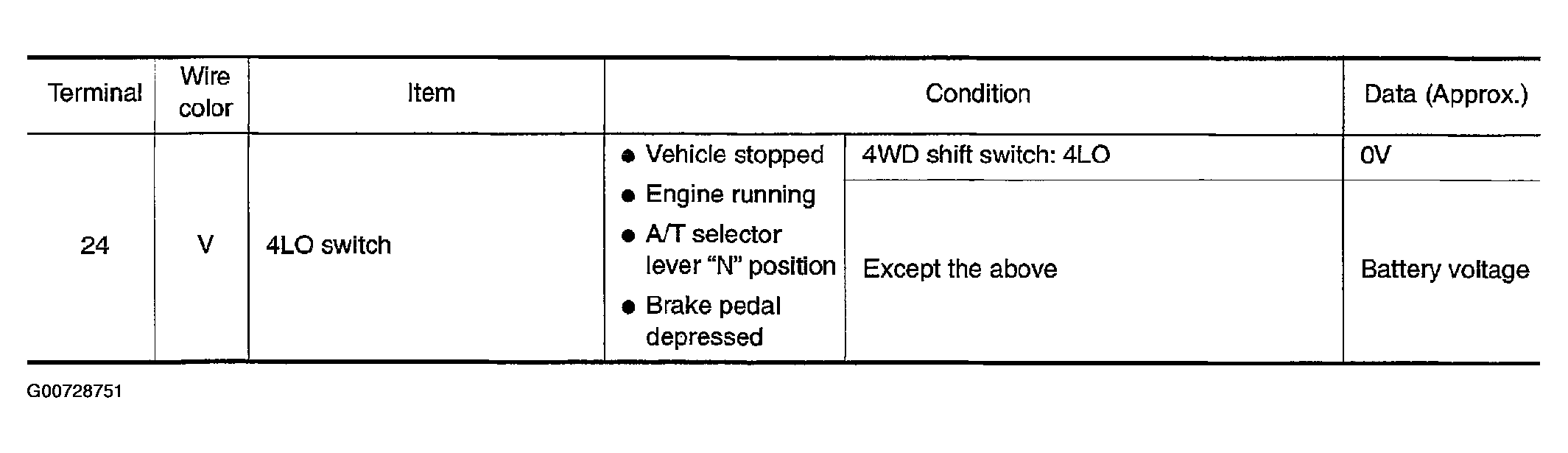

Data are reference value and are measured between each terminal and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
