Specifications Between Transfer Control Unit Terminals

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

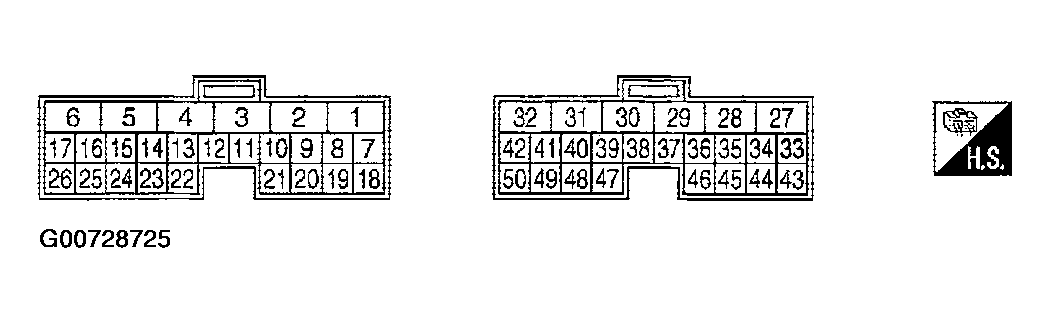

Fig 1: Transfer Control Unit Terminal Connector Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

Data are reference value and are measured between each terminal and ground.

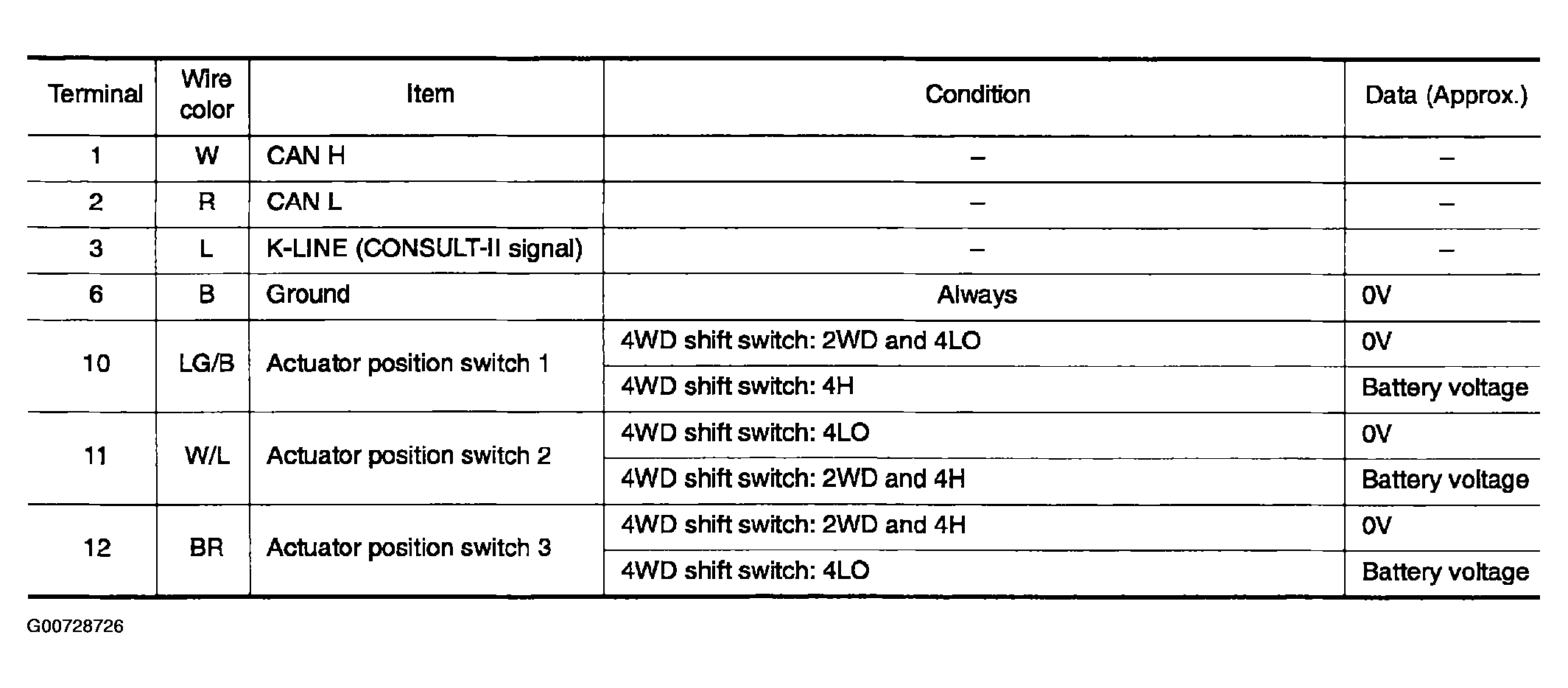

Fig 2: Pin Voltage Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

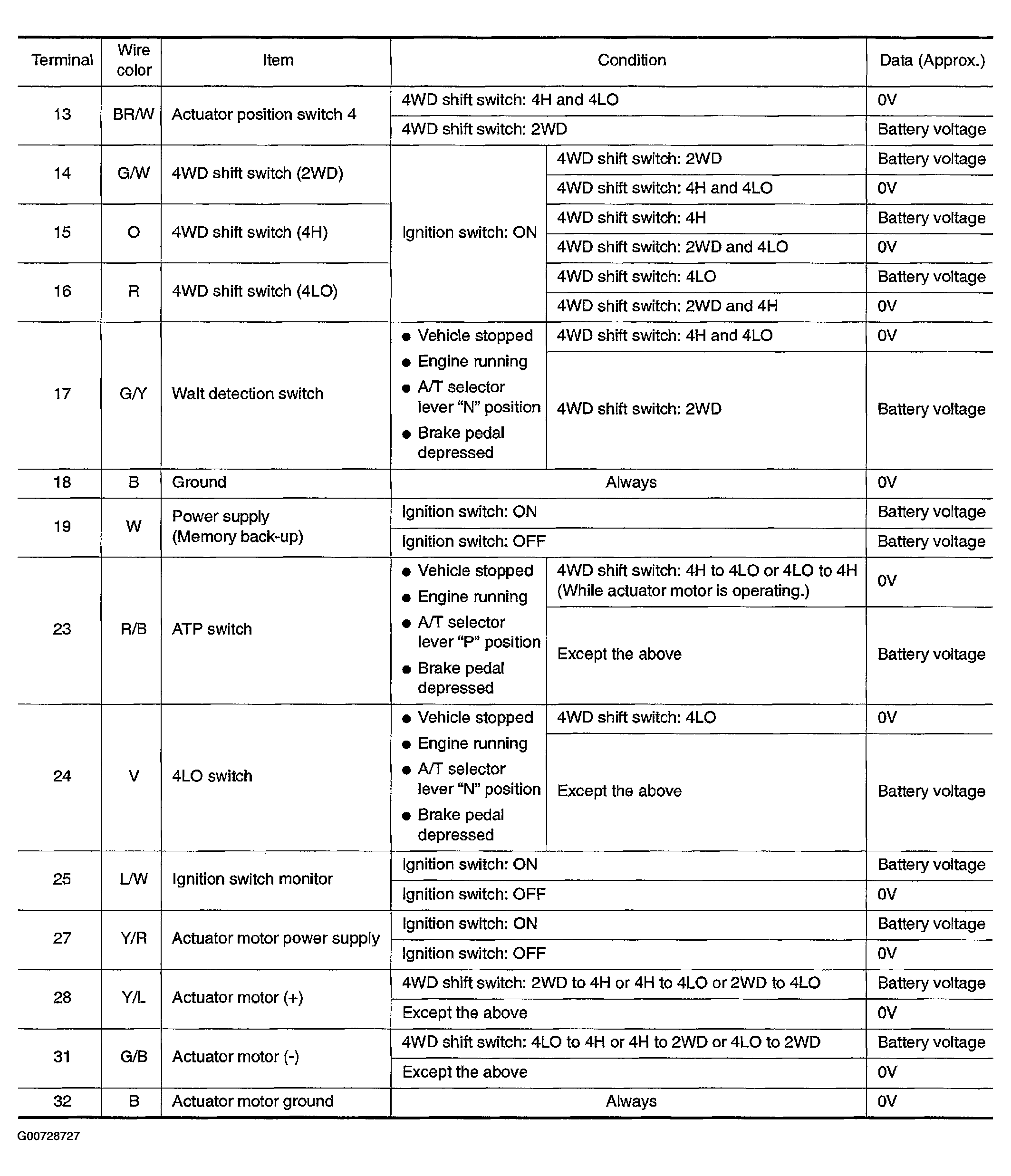

Fig 3: Pin Voltage Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

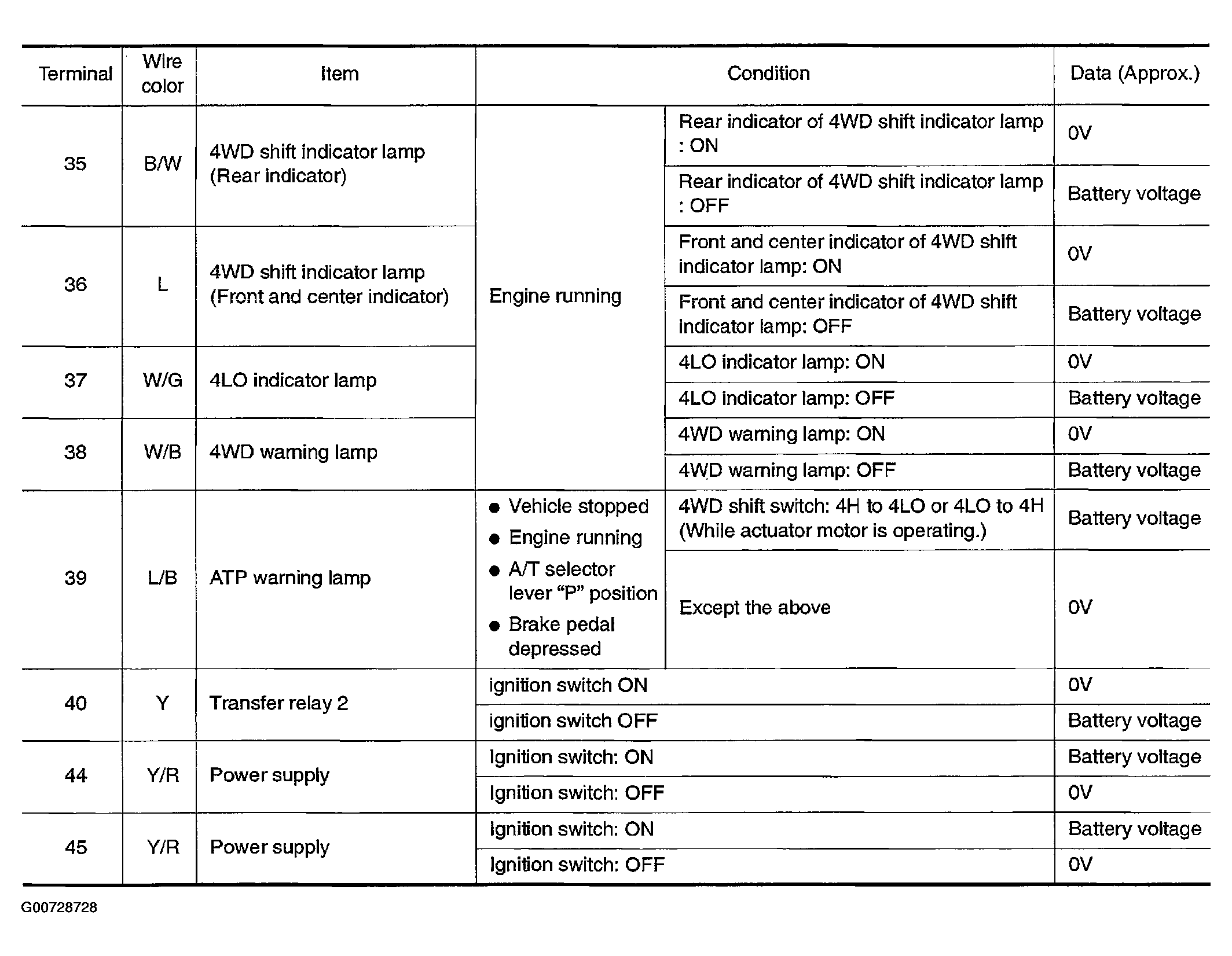

Fig 4: Pin Voltage Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
