WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

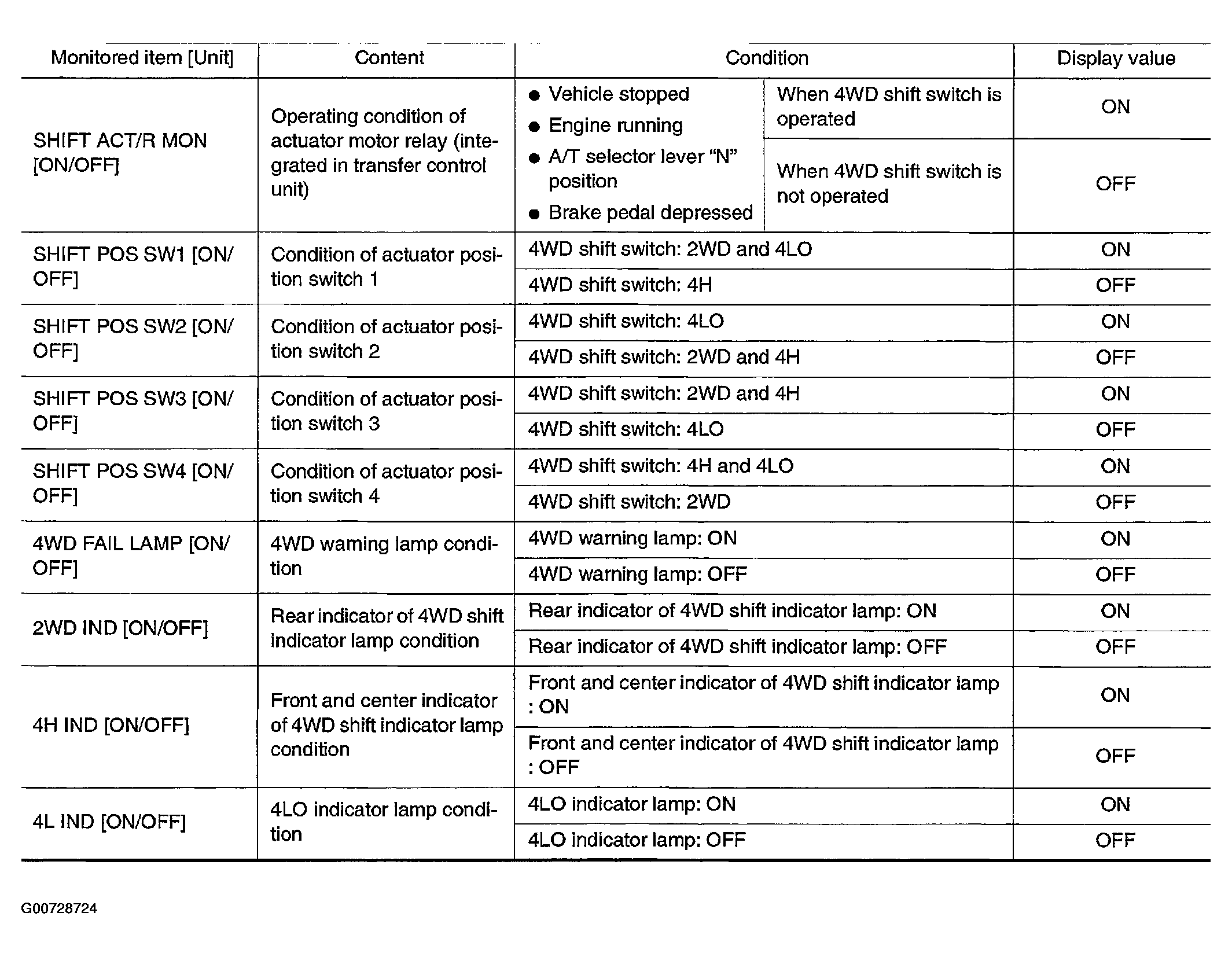

Fig 1: Specifications Table With CONSULT-II (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

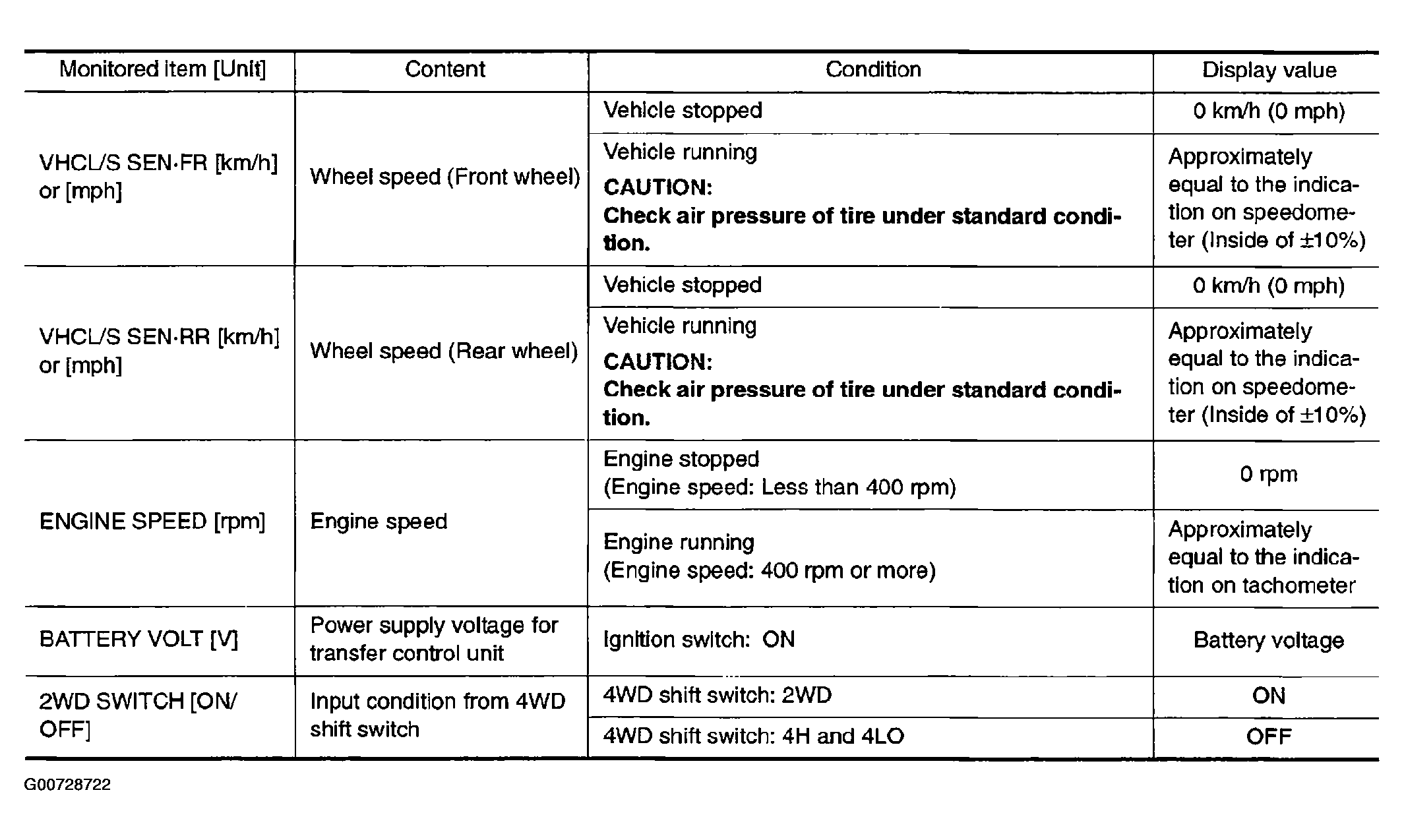

Fig 2: Specifications Table With CONSULT-II (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Specifications Table With CONSULT-II (3 Of 3)
