CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

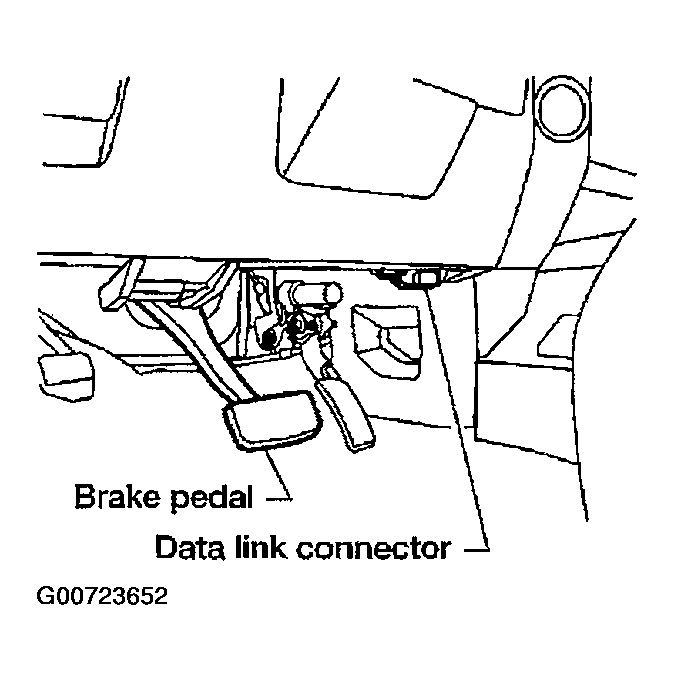

    Fig 1: Locating Data Link Connector
    G00723652Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

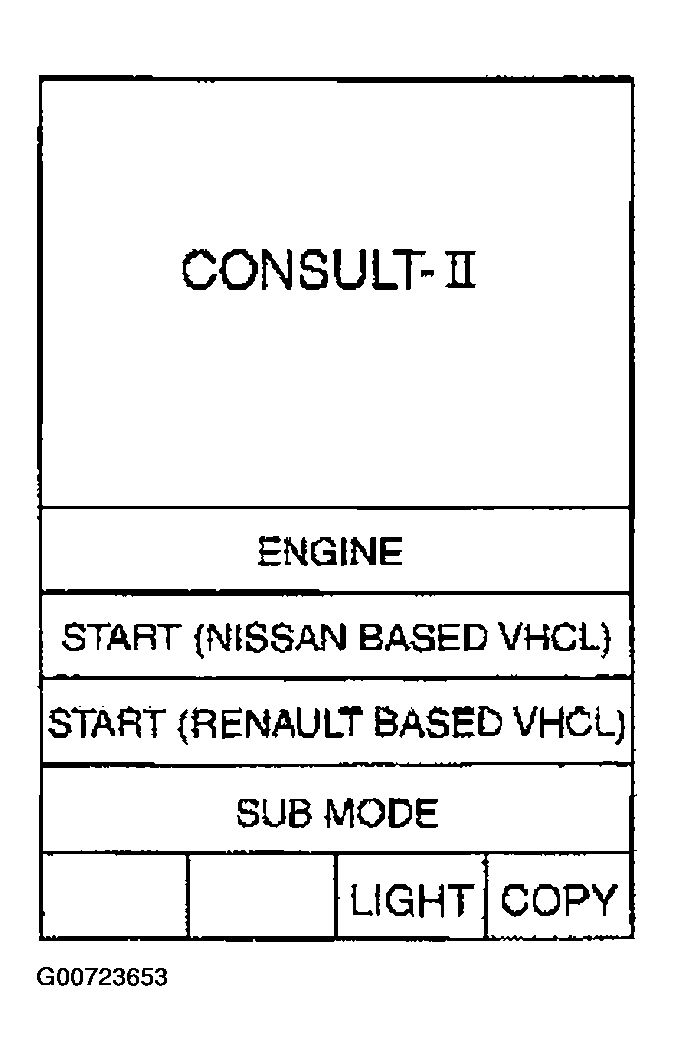

    Fig 2: CONSULT-II Display
    G00723653Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II INSPECTION PROCEDURE .

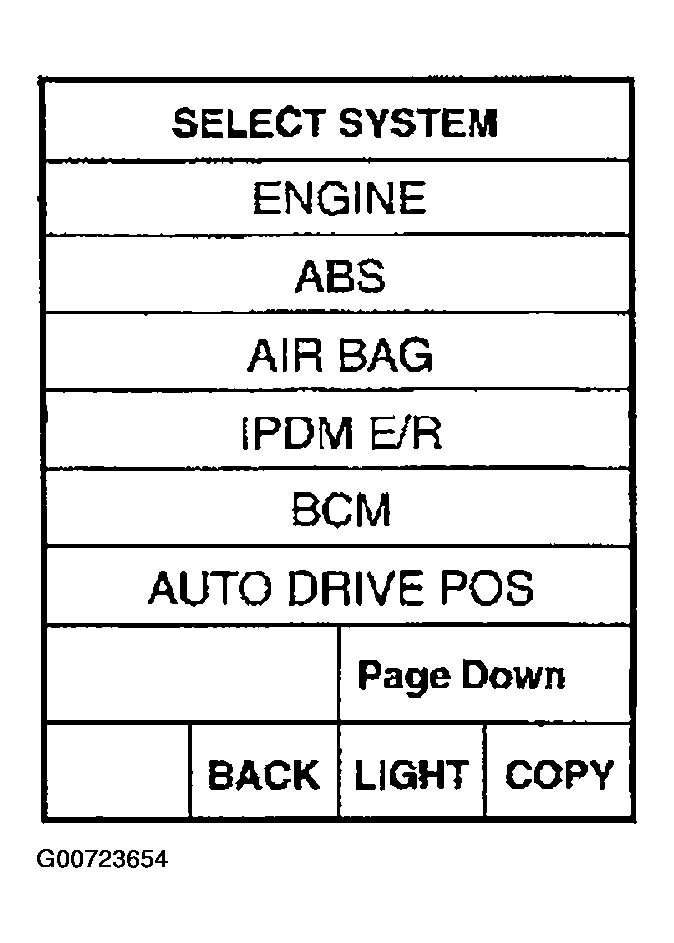

    Fig 3: CONSULT-II Display
    G00723654Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BUZZER" in "BCM".
  5. Select "DATA MONITOR" or "SELF-DIAG RESULTS".

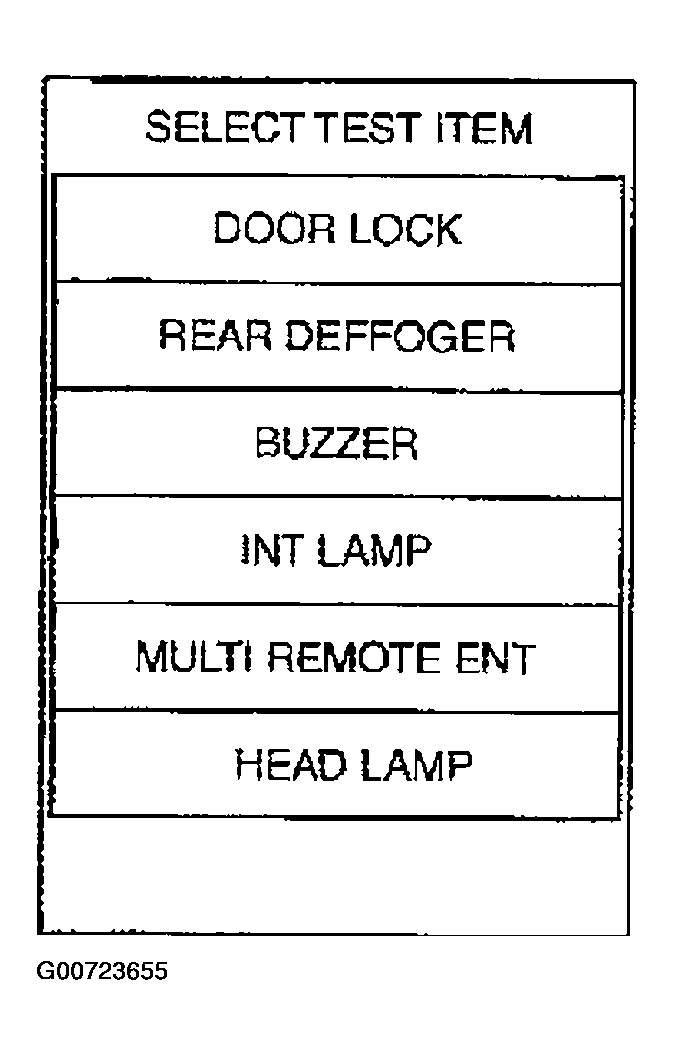

Fig 4: CONSULT-II Display
G00723655Courtesy of NISSAN MOTOR CO., U.S.A.
