Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

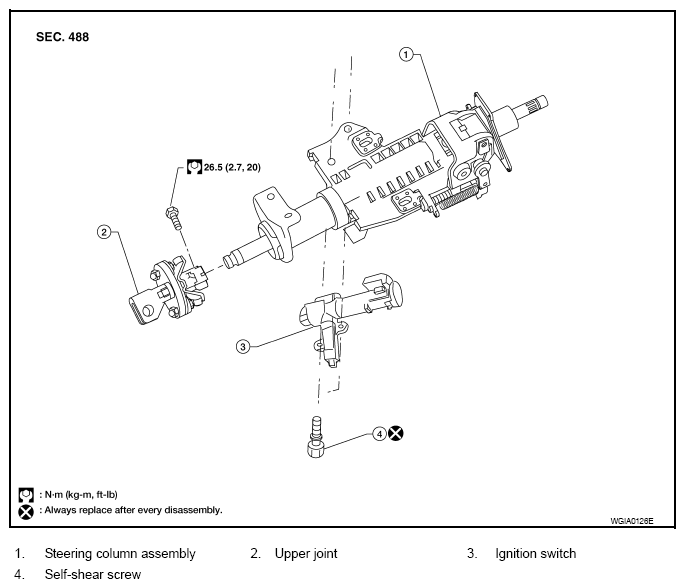

Fig 1: Disassembled View Of Steering Column With Torque Specification
G08167283Courtesy of NISSAN NORTH AMERICA, INC.
