Inspection Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.
    Fig 1: Locating Data Link Connector
    G04151457Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Enter the program according to instruction on the screen or in the operation manual.

    (*: Regarding GST screens in this section, sample screens are shown.)

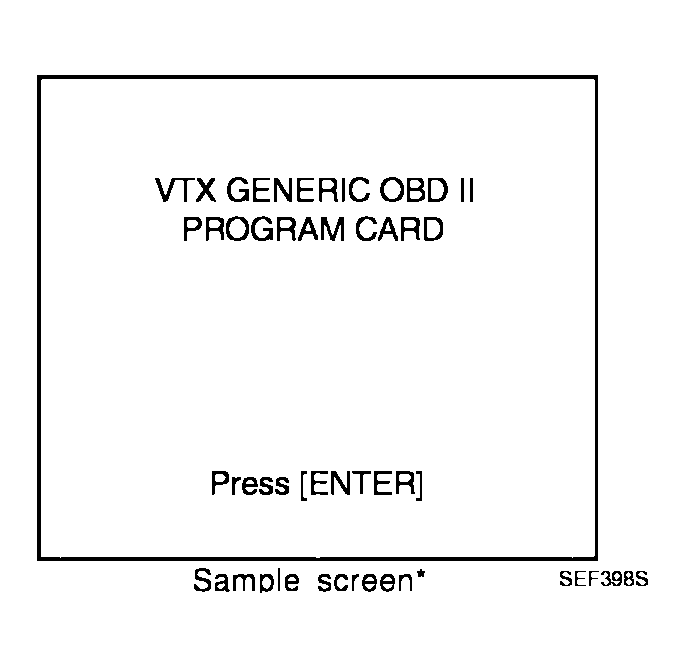

    Fig 2: CONSULT-II Screen Display - GST
    G04173145Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Perform each diagnostic mode according to each service procedure.

    For further information, see the GST Operation Manual of the tool maker.

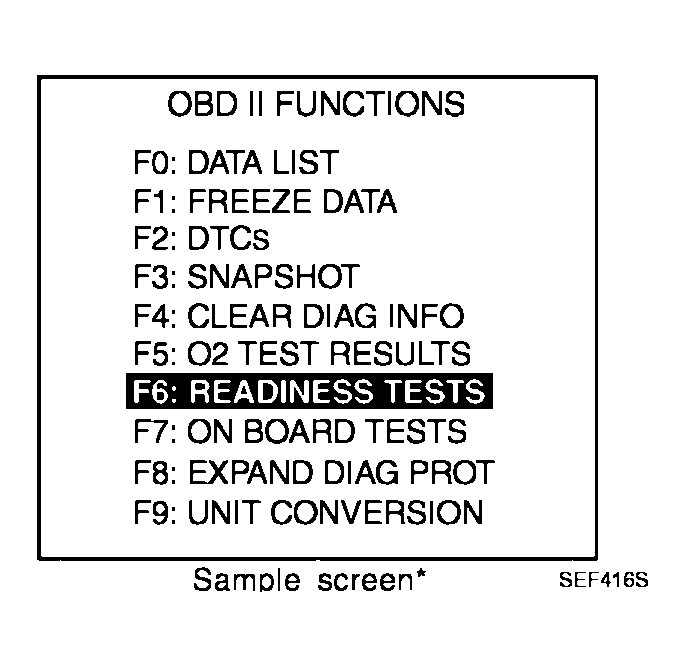

    Fig 3: CONSULT-II Screen Display - Readiness Test
    G04173146Courtesy of NISSAN MOTOR CO., U.S.A.
