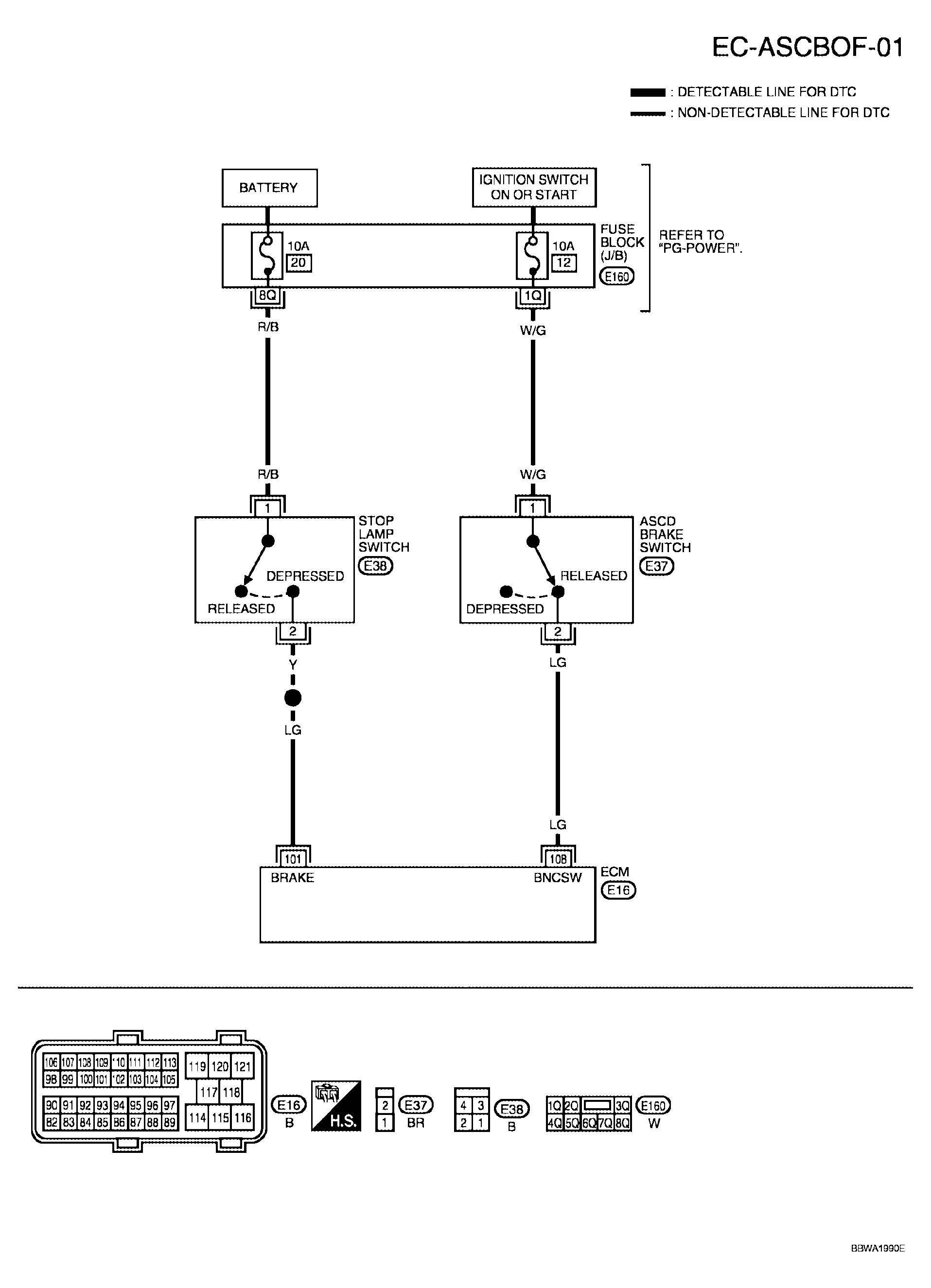

ASCD Brake Switch: Wiring Diagram
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA AND REFERENCE VALUES
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 101 | LG | Stop lamp switch | [Ignition switch: OFF]
|
Approximately 0V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||
| 108 | LG | ASCD brake switch | [Ignition switch: ON]
|
Approximately 0V |
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
