Refrigerant Pressure Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

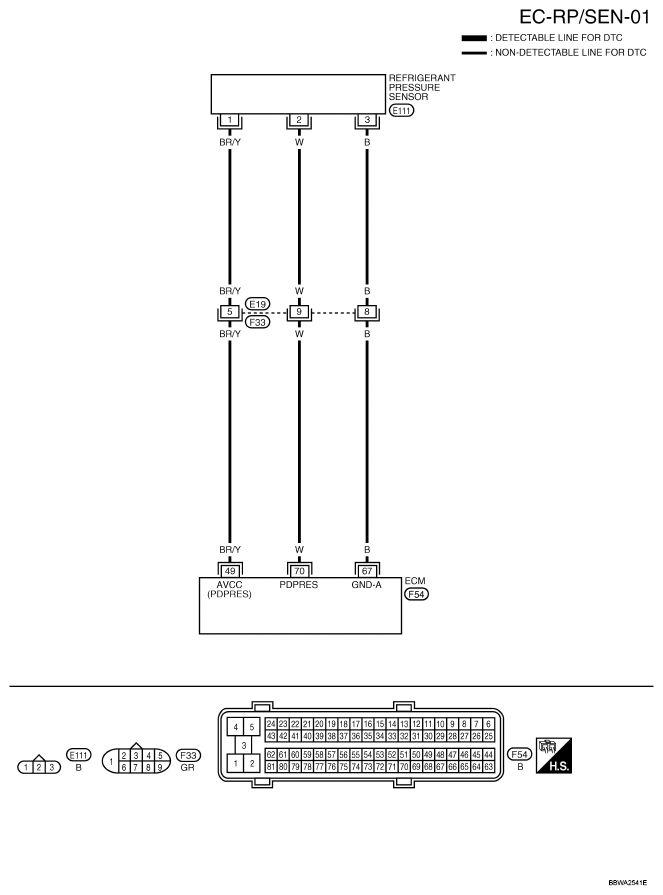

Fig 1: Wiring Diagram - EC-RP/SEN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINAL SPECIFICATION DATA REFERENCE VALUES

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
49	BR/Y	Refrigerant pressure sensor power supply	[Ignition switch: ON]	Approximately 5V
67	B	Sensor ground	[Engine is running] Warm-up condition Idle speed	Approximately 0V
70	W	Refrigerant pressure sensor	[Engine is running] Warm-up condition Both A/C switch and blower fan switch: ON (Compressor operates.)	1.0 - 4.0V
