Diagnostic Procedure

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECTION START

    Do you have CONSULT-II?

    Yes or No

    YES: GO TO  2.

    NO: GO TO  3.

  2. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "ENGINE MOUNTING" in "ACTIVE TEST" mode with CONSULT-II and touch "ON/OFF" on the CONSULT-II screen.
    3. Check that the motor operating sound is heard from front electronic controlled engine mount and rear electronic controlled engine mount for about 0.5 seconds according to the switching condition of "ENGINE MOUNTING".
      4. Fig 1: CONSULT-II Display - Active Test
      G04905841Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  4.

  3. CHECK OVERALL FUNCTION

    Without CONSULT-II

    1. Make sure that gear position is P or N.
    2. Start engine and let it idle.
    3. Change the engine speed from idle to more than 1, 000 rpm and then return to idle (with vehicle stopped).
    4. Check that the motor operating sound is heard from front electronic controlled engine mount for and rear electronic controlled engine mount about 0.5 seconds when changing engine speed.

      It is better to hear the operating sound around the left side front wheel house.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  4.

  4. CHECK ELECTRONIC CONTROLLED ENGINE MOUNT POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front electronic controlled engine mount harness connector and rear electronic controlled engine mount harness connector.

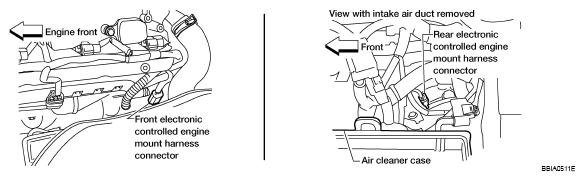

      Fig 2: Identifying Front Electronic Controlled Engine Mount Harness Connector And Rear Electronic Controlled Engine Mount Harness Connector
      G04915844Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between electronic controlled engine mount terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

      4. Fig 3: Checking Voltage Between Electronic Controlled Engine Mount Terminal 3 And Ground
      G04905843Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  6.

    NG: GO TO  5.

  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M71, F59
    • Fuse block (J/B) connector M4
    • 10A fuse
    • Harness for open and short between electronic controlled engine mount and battery

      • >> Repair harness or connectors.

  6. CHECK ELECTRONIC CONTROLLED ENGINE MOUNT OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminals and electronic engine mount terminals as follows. Refer to Wiring Diagram.
      ELECTRONIC CONTROLLED ENGINE MOUNT SPECIFICATION

      ECM terminal Front electronic controlled engine mount terminal Rear electronic controlled engine mount terminal
      8 1 1
      9 2 2

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  7.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK ELECTRONIC CONTROLLED ENGINE MOUNT

    Visually check front and rear electronic controlled engine mount.

    OK or NG

    OK: GO TO  8.

    NG: Replace front or rear electronic controlled engine mount.

  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ."

    >> INSPECTION END
