Special Service Tools

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here

SPECIAL SERVICE TOOLS DESCRIPTION

Tool number
(Kent-Moore No.)
Tool name		 Description

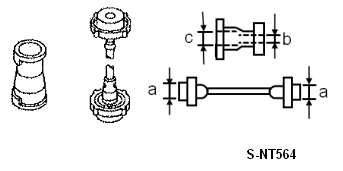

EG17650301
(J-33984-A)
Radiator cap tester adapter
G04874711Courtesy of NISSAN MOTOR CO., U.S.A.
 Adapting radiator cap tester to radiator cap and radiator filler neck
a: 28 (1.10) dia  .
b: 31.4 (1.236) dia  .
c: 41.3 (1.626) dia  .
Unit: mm (in)
(J-44321)
Fuel pressure gauge kit
G04874770Courtesy of NISSAN MOTOR CO., U.S.A.
 Checking fuel pressure
(J-44321 -6)
Fuel pressure adapter
G04899978Courtesy of NISSAN MOTOR CO., U.S.A.
 Connecting fuel pressure gauge to quick connector type fuel lines.
(J-45488)
Quick connector release
G04878216Courtesy of NISSAN MOTOR CO., U.S.A.
 Remove fuel tube quick connectors in engine room
