With GST

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to the normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Start engine and keep the engine speed between 3,500 and 4,000 RPM for at least 1 minute under no load.
  4. Let engine idle for 1 minute.
  5. Open engine hood.
  6. Set voltmeter probe between ECM terminals ECM terminals 74 [HO2S2 (bank 1) signal], 55 [HO2S2 (bank 2) signal] and engine ground.
  7. Keep engine speed at 2,500 RPM constant under no load.
  8. Make sure that the voltage does not vary for more than 5 seconds.

    If the voltage fluctuation cycle takes less than 5 seconds, go to "DIAGNOSTIC PROCEDURE ".

    • 1 cycle: 0.6 - 1.0 --> 0 - 0.3 --> 0.6 - 1.0

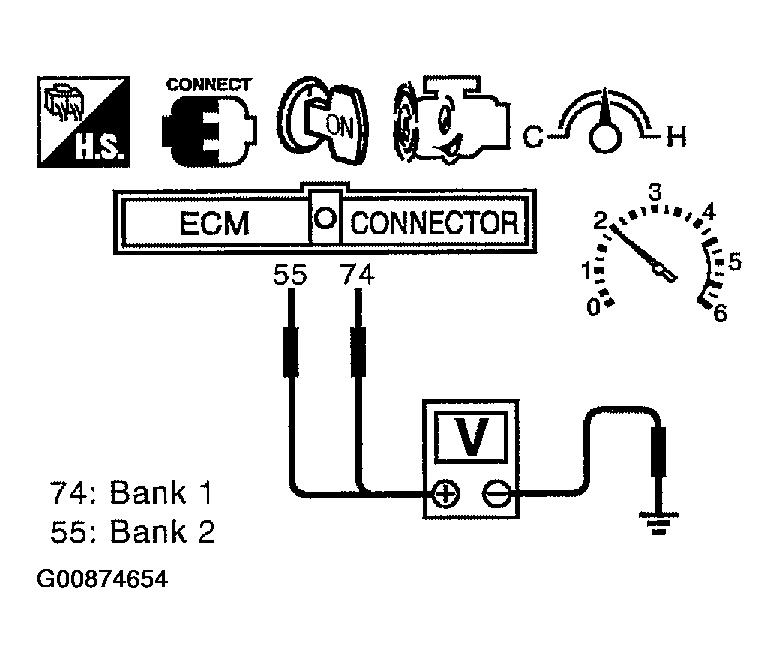

Fig 1: Checking Voltage
G00874654Courtesy of NISSAN MOTOR CO., U.S.A.
