With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Start engine and let it idle for at least 70 seconds.
  4. Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC CONFIRMATION" mode with CONSULT-II.
  5. Touch "START".

    If "COMPLETED" is displayed, go to step  7.

  6. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take at least 35 seconds).

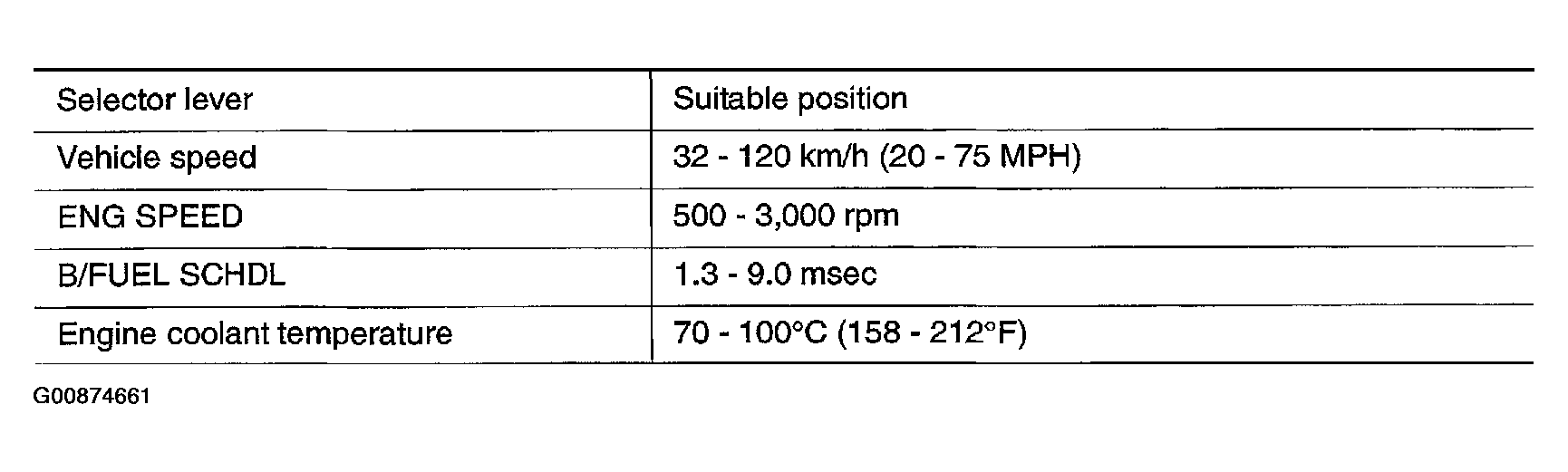

    Fig 1: Test Parameters
    G00874661Courtesy of NISSAN MOTOR CO., U.S.A.

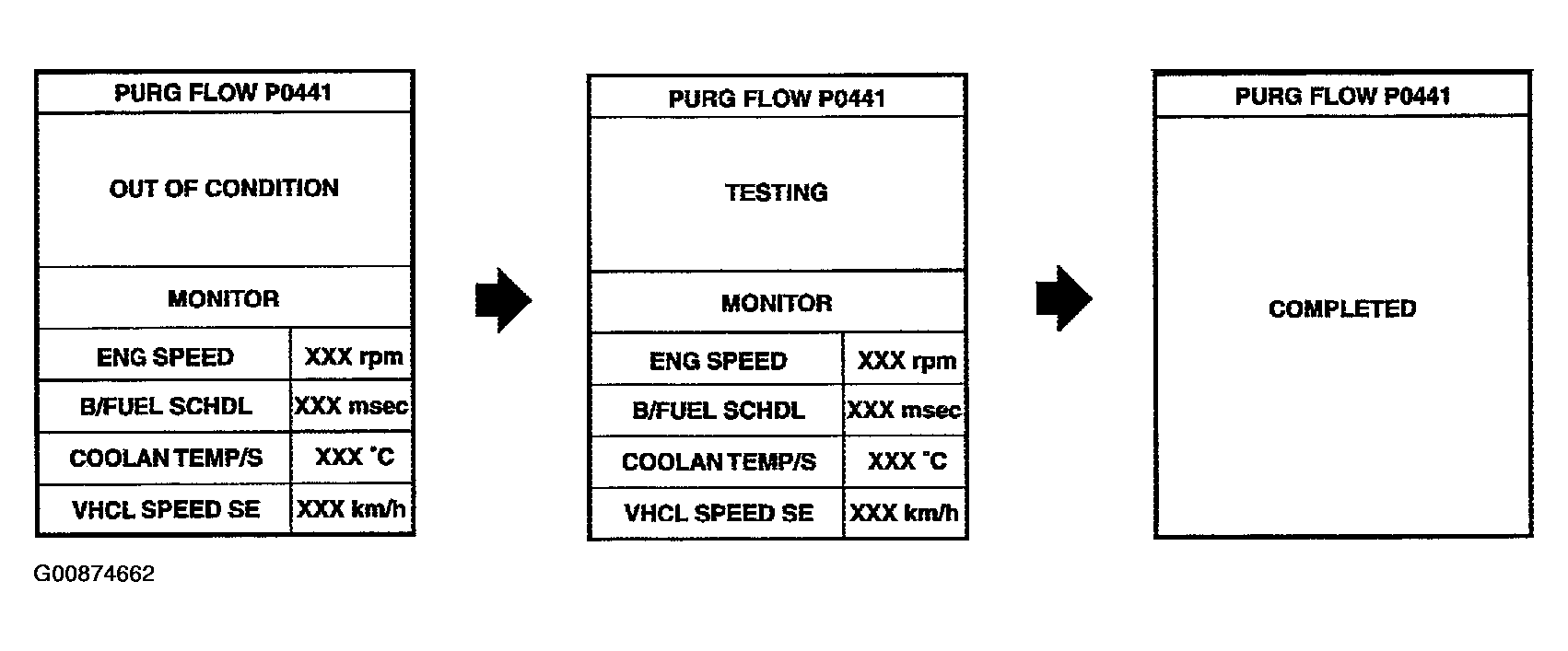

    Fig 2: CONSULT-II Display Screens
    G00874662Courtesy of NISSAN MOTOR CO., U.S.A.

    If "TESTING" is not changed for a long time, retry from step   2 .

  7. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".
