Component Description

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

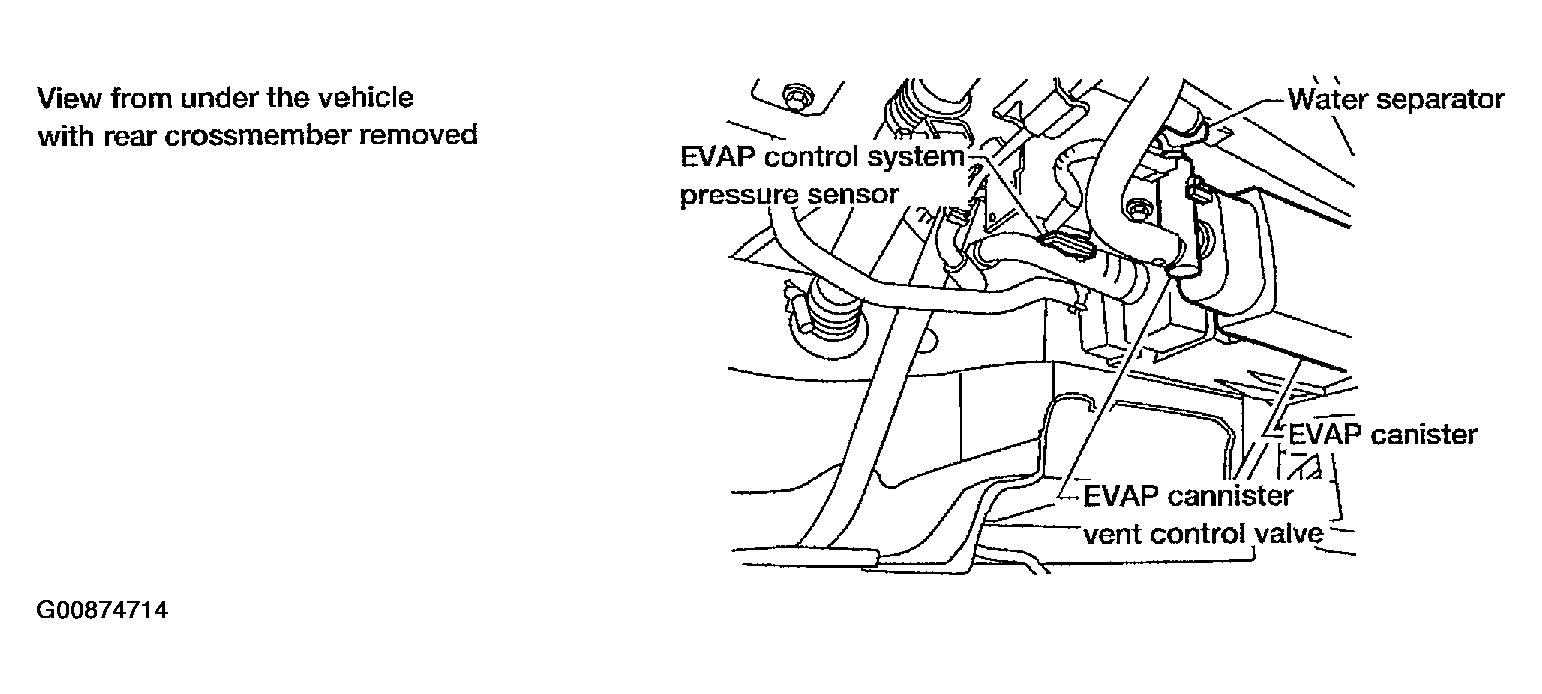

Fig 1: EVAP Canister & Components

Courtesy of NISSAN MOTOR CO., U.S.A.

The sensor output voltage to the ECM increases as pressure increases

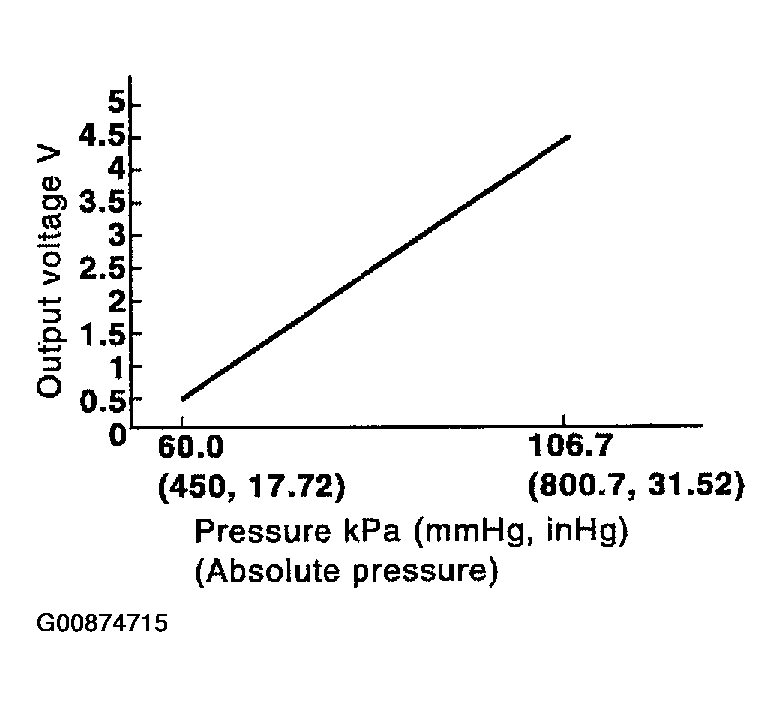

Fig 2: The Sensor Output Voltage To The ECM Increases As Pressure Increases

Courtesy of NISSAN MOTOR CO., U.S.A.
