With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. Repeat step 3 to 4 for 32 times.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

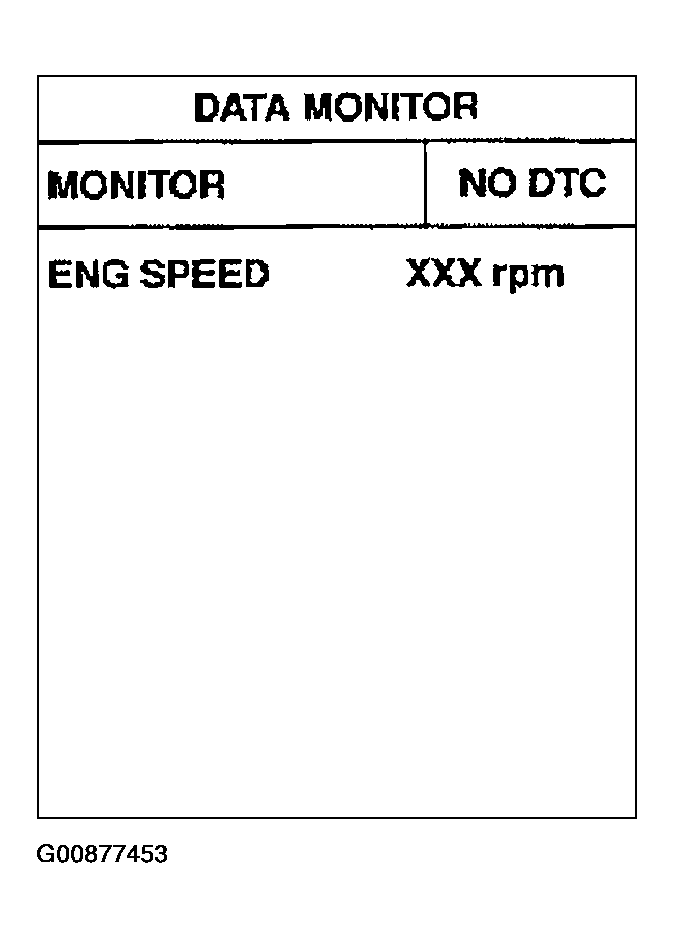

Fig 1: CONSULT-II Display Screen
G00877453Courtesy of NISSAN MOTOR CO., U.S.A.
